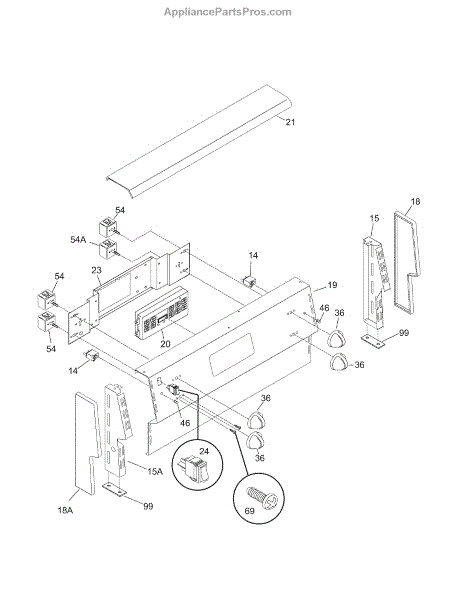

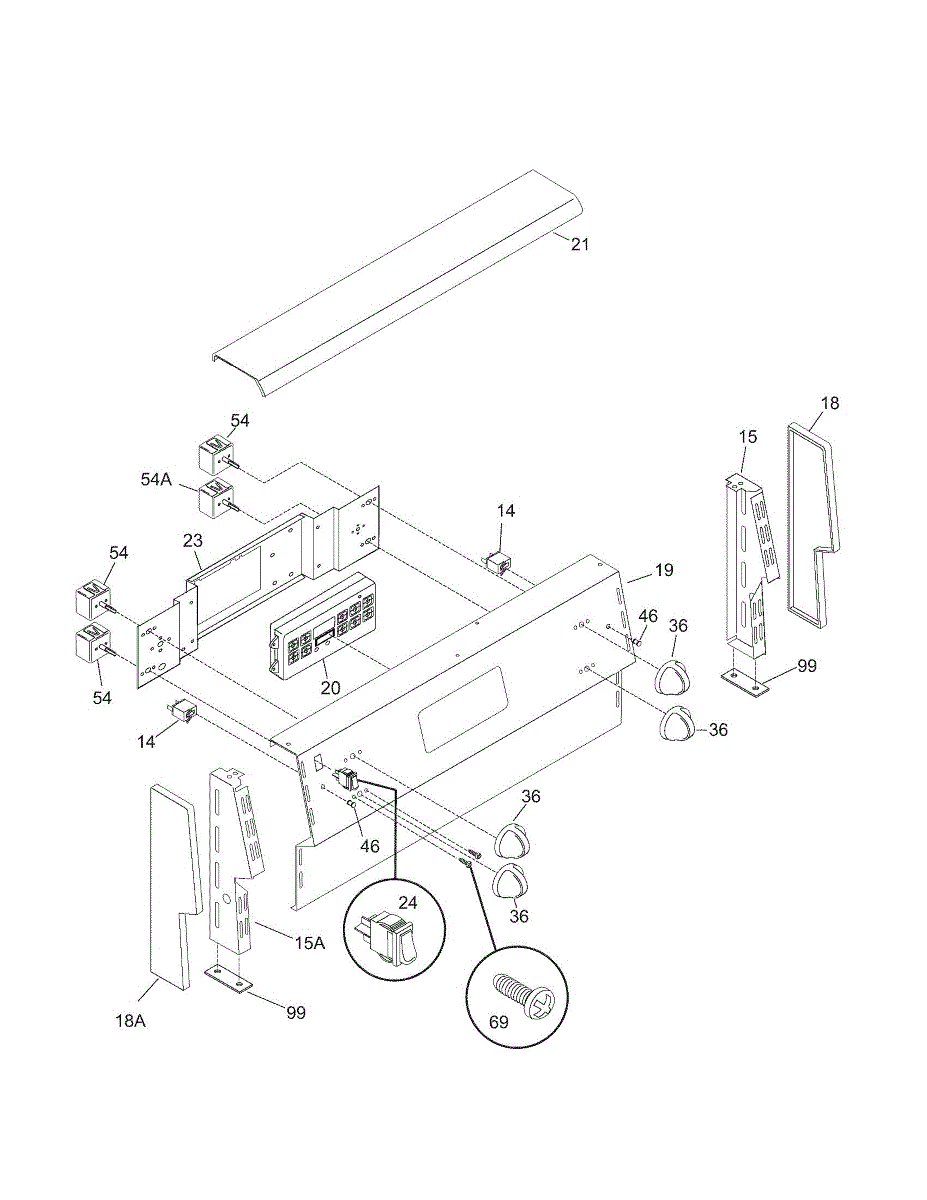

Parts for Kenmore 790.90153402 (79090153402, 790 90153402): Backguard Parts

Endcap for electric ranges. Covers and protects the end of a trim or component. Replace if cracked, broken, or missing to restore appearance.

Endcap for electric ranges. Covers and protects the end of a trim or component. Replace if cracked, broken, or missing to restore appearance.

If your range burner won't heat, stays on constantly, or won't adjust temperature, the infinite switch likely failed. This part regulates heat levels.

Covers and protects your range's interior light bulb from spills and debris. Replace when cracked, discolored, or missing to restore proper lighting.

A push-button switch that restores user control functions by completing or breaking electrical circuits. Replaces a worn or failed control switch to help restore normal operation and user input response. What it does:

• Acts as the user-operated control input to start or stop a function when pressed
• Opens or closes the electrical circuit that enables the associated control or feature
• Common symptom: unresponsive controls or functions that do not start when buttons are pressed
• May cause intermittent operation or no response if contacts are worn or corroded

• One replacement push-button switch

• Disconnect power to the appliance before attempting any service
• Use appropriate tools and basic electrical safety; avoid bending terminals or forcing the new part into place

Burner not heating or won't turn on? This electric range control switch restores power to stovetop elements. Straightforward DIY repair.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This printed Use and Care Guide provides the official owner instructions for safe operation, basic maintenance, and simple troubleshooting for your appliance. It helps you understand controls, care tips, and safety warnings to protect performance and avoid damage. What it does:

• Explains basic operation and control functions in plain language
• Lists safety warnings and recommended maintenance to prevent issues
• Offers basic troubleshooting steps for common symptoms like odd noises, temperature problems, or leaks
• Details cleaning and care procedures to help extend appliance life

• No tools required — this is a replacement owner's manual, not a hardware part
• Read all safety warnings before operating the appliance
• Keep the guide with the appliance for future reference and for new users
• Recycle or discard any old documentation per local regulations

This is a printed repair parts list that shows the appliance's service diagrams and part numbers to speed identification and ordering for repairs. Handy for technicians and owners who need a clear parts reference. What it does:

• Displays exploded diagrams and official part numbers for the appliance
• Helps identify the exact parts needed for common failures and maintenance
• Reduces ordering errors by matching parts to their diagram locations
• Serves as a quick reference during troubleshooting and repair

• No tools required; keep with appliance paperwork or service kit
• Use the listed part numbers when ordering replacement parts
• Do not attempt repairs unless you are qualified; follow safety guidelines and disconnect power before servicing

Touch pad overlay for your range control panel. Replaces damaged, cracked, or worn overlays with faded graphics. Attaches to the control board surface.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
