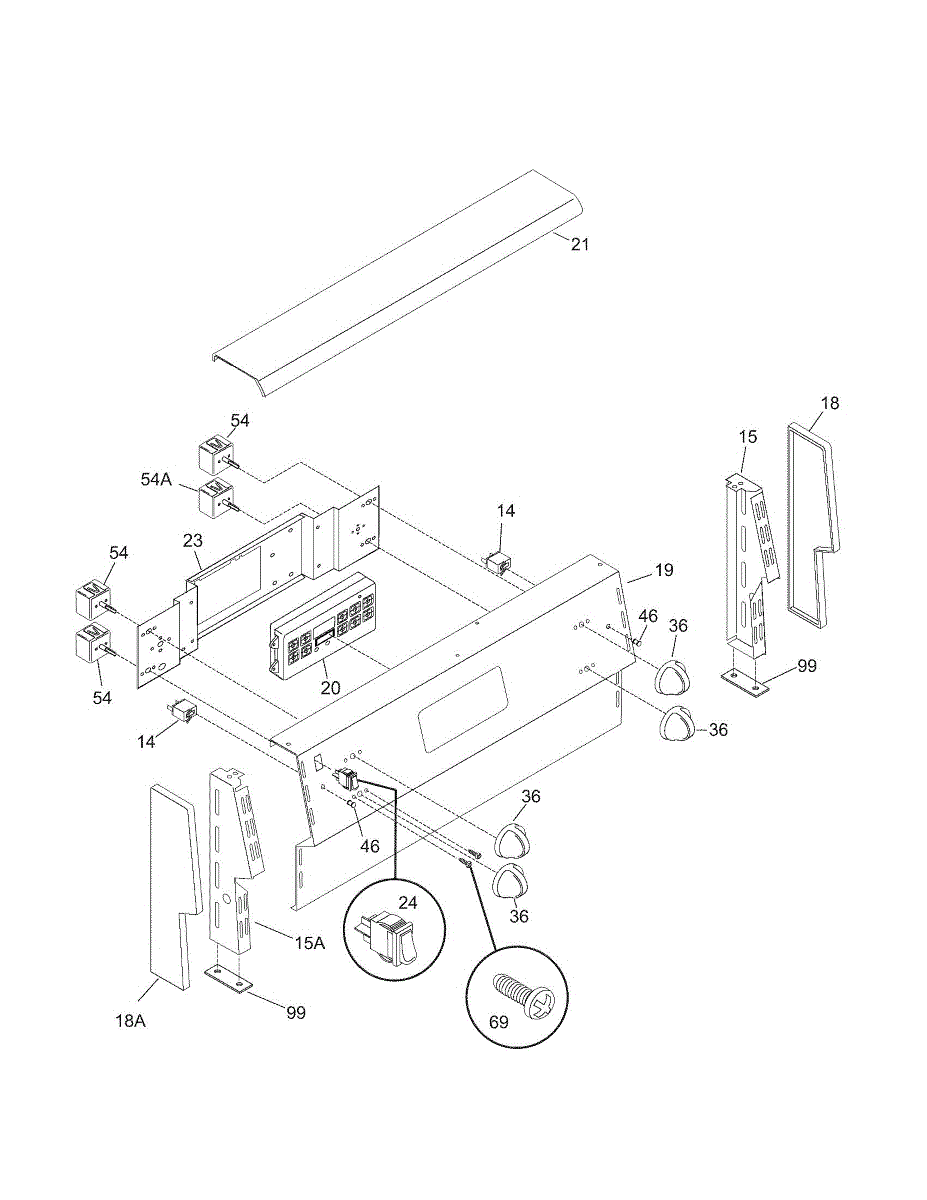

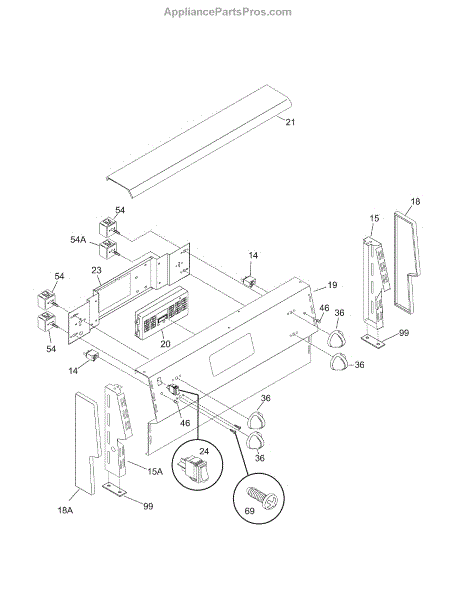

Parts for Kenmore 790.90153403 (79090153403, 790 90153403): Backguard Parts

Endcap for electric ranges. Covers and protects the end of a trim or component. Replace if cracked, broken, or missing to restore appearance.

Endcap for electric ranges. Covers and protects the end of a trim or component. Replace if cracked, broken, or missing to restore appearance.

Decorative trim piece for electric ranges. Covers gaps or edges around the cooktop or control panel. Replace if cracked, chipped, discolored, or missing.

If your range burner won't heat, stays on constantly, or won't adjust temperature, the infinite switch likely failed. This part regulates heat levels.

Covers and protects your range's interior light bulb from spills and debris. Replace when cracked, discolored, or missing to restore proper lighting.

A push-button switch that restores user control functions by completing or breaking electrical circuits. Replaces a worn or failed control switch to help restore normal operation and user input response. What it does:

• Acts as the user-operated control input to start or stop a function when pressed
• Opens or closes the electrical circuit that enables the associated control or feature
• Common symptom: unresponsive controls or functions that do not start when buttons are pressed
• May cause intermittent operation or no response if contacts are worn or corroded

• One replacement push-button switch

• Disconnect power to the appliance before attempting any service
• Use appropriate tools and basic electrical safety; avoid bending terminals or forcing the new part into place

Burner not heating or won't turn on? This electric range control switch restores power to stovetop elements. Straightforward DIY repair.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

Touch pad overlay for your range control panel. Replaces damaged, cracked, or worn overlays with faded graphics. Attaches to the control board surface.

This printed Use and Care Guide provides the official owner instructions for safe operation, basic maintenance, and simple troubleshooting for your appliance. It helps you understand controls, care tips, and safety warnings to protect performance and avoid damage. What it does:

• Explains basic operation and control functions in plain language
• Lists safety warnings and recommended maintenance to prevent issues
• Offers basic troubleshooting steps for common symptoms like odd noises, temperature problems, or leaks
• Details cleaning and care procedures to help extend appliance life

• No tools required — this is a replacement owner's manual, not a hardware part
• Read all safety warnings before operating the appliance
• Keep the guide with the appliance for future reference and for new users
• Recycle or discard any old documentation per local regulations

This printed repair parts list identifies the factory part numbers and diagram callouts for service and parts ordering. Keep it with the appliance or service records to speed accurate part identification. What it does:

• Lists factory part numbers and diagram references for the appliance
• Shows component locations and callouts to match the correct replacement parts
• Helps confirm the exact part needed before ordering or repairing
• Useful for technicians and owners troubleshooting or planning repairs

• This is a reference document; no installation is required
• Keep the sheet with appliance paperwork or provide it to your technician
• Replace if torn or illegible to avoid ordering errors

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
