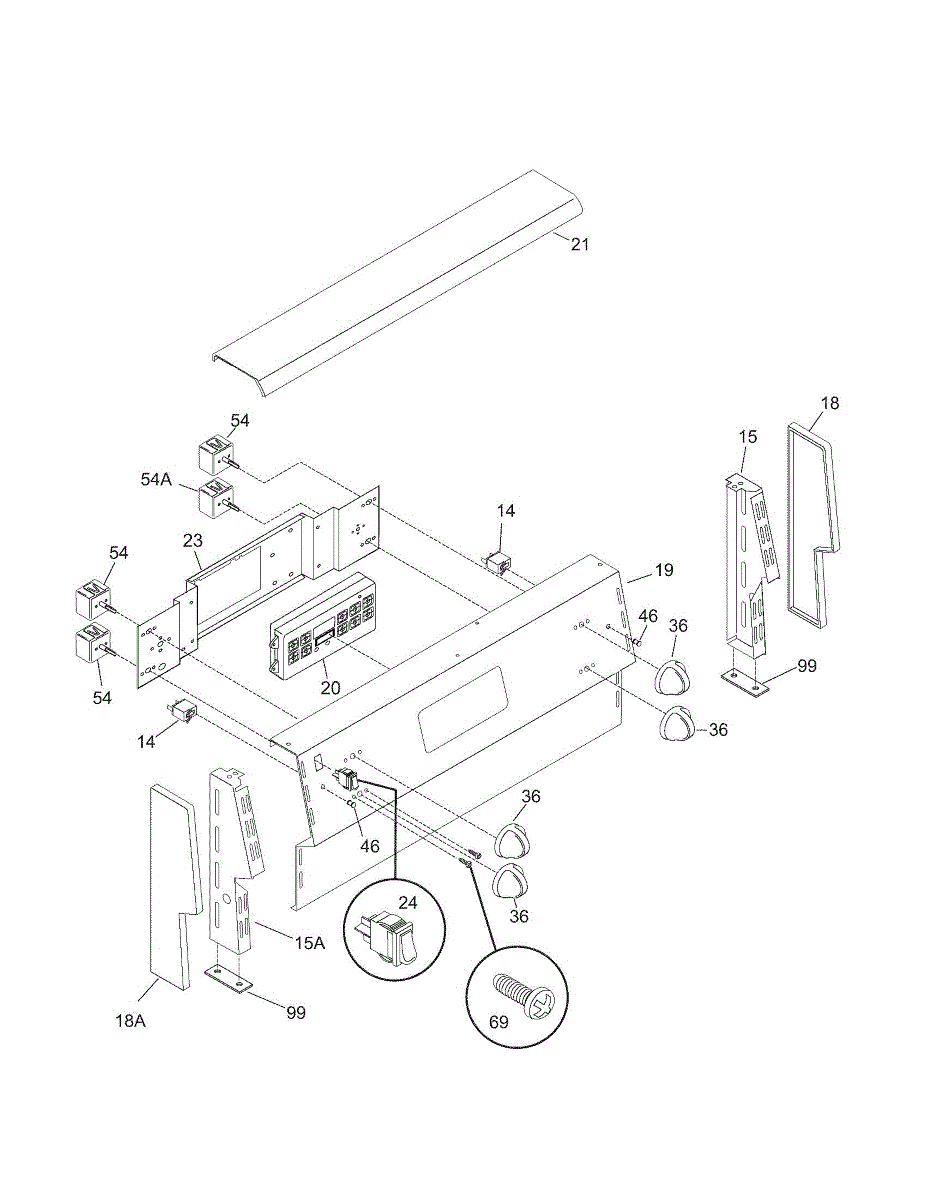

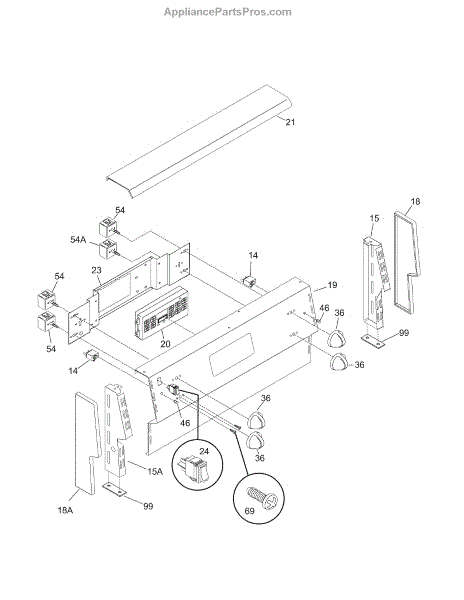

Parts for Kenmore 790.90153405 (79090153405, 790 90153405): Backguard Parts

Endcap for electric ranges. Covers and protects the end of a trim or component. Replace if cracked, broken, or missing to restore appearance.

Endcap for electric ranges. Covers and protects the end of a trim or component. Replace if cracked, broken, or missing to restore appearance.

Decorative trim piece for electric ranges. Covers gaps or edges around the cooktop or control panel. Replace if cracked, chipped, discolored, or missing.

If your range burner won't heat, stays on constantly, or won't adjust temperature, the infinite switch likely failed. This part regulates heat levels.

Covers and protects your range's interior light bulb from spills and debris. Replace when cracked, discolored, or missing to restore proper lighting.

A push-button switch that restores user control functions by completing or breaking electrical circuits. Replaces a worn or failed control switch to help restore normal operation and user input response. What it does:

• Acts as the user-operated control input to start or stop a function when pressed
• Opens or closes the electrical circuit that enables the associated control or feature
• Common symptom: unresponsive controls or functions that do not start when buttons are pressed
• May cause intermittent operation or no response if contacts are worn or corroded

• One replacement push-button switch

• Disconnect power to the appliance before attempting any service
• Use appropriate tools and basic electrical safety; avoid bending terminals or forcing the new part into place

Burner not heating or won't turn on? This electric range control switch restores power to stovetop elements. Straightforward DIY repair.

This paper repair parts list provides the factory parts breakdown and reference numbers used for service and ordering. Handy for identifying the correct replacement parts and part names during repairs. What it does:

• Shows the appliance's parts diagram and OEM part numbers for quick identification.
• Helps technicians and DIYers the exact component needed before ordering.
• Reduces guesswork that can cause incorrect part purchases or extra returns.
• Useful when the original parts list is missing, damaged, or hard to read.

• This is a reference document; no mechanical installation required.
• Keep the sheet dry and store with appliance documentation for future service.
• Use the listed part numbers when ordering to ensure correct replacements.

This printed Use and Care Guide provides the official owner instructions for safe operation, basic maintenance, and simple troubleshooting for your appliance. It helps you understand controls, care tips, and safety warnings to protect performance and avoid damage. What it does:

• Explains basic operation and control functions in plain language
• Lists safety warnings and recommended maintenance to prevent issues
• Offers basic troubleshooting steps for common symptoms like odd noises, temperature problems, or leaks
• Details cleaning and care procedures to help extend appliance life

• No tools required — this is a replacement owner's manual, not a hardware part
• Read all safety warnings before operating the appliance
• Keep the guide with the appliance for future reference and for new users
• Recycle or discard any old documentation per local regulations

Touch pad overlay for your range control panel. Replaces damaged, cracked, or worn overlays with faded graphics. Attaches to the control board surface.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
