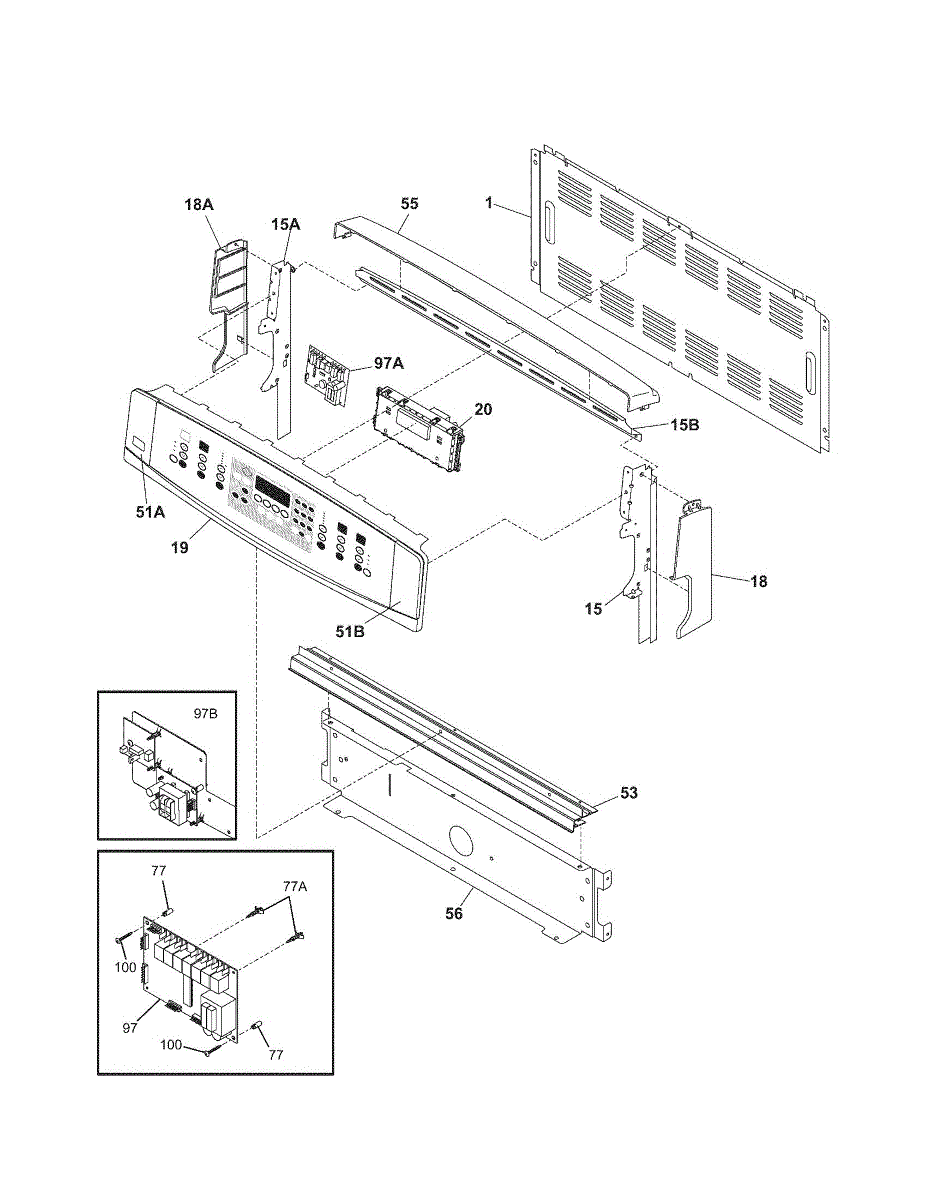

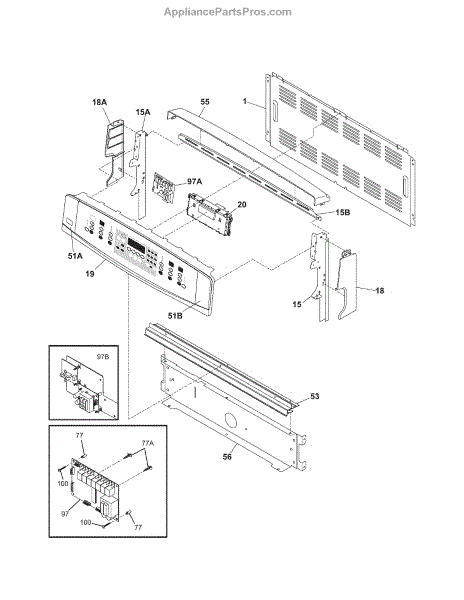

Parts for Kenmore 790.96623700 (79096623700, 790 96623700): Backguard Parts

Oven won't heat but clock and burners work? This range control board manages oven and broiler heating. Moderate DIY difficulty, requires careful wire matching.

Replace your damaged or missing range door trim. This cosmetic piece covers the door edge, providing a finished look. Order now if yours is cracked or worn.

Black top cap trim for range burners. Replaces cracked, chipped, or missing trim pieces that affect your cooktop's finished appearance and fit.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Fix a range that won't heat, has a blank display, or shows error codes with a new control board. This electronic timer regulates oven temperature and functions.

This is a relay board that controls power to the surface burner elements on an electric range or cooktop. It receives signals from the electronic oven control and switches the heating elements on and off at the correct power levels. Replace this board if your surface burners fail to heat, heat inconsistently, stay on continuously, or if you notice error codes related to the surface elements.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

This repair parts list is a printed reference that helps identify factory part numbers and exploded diagrams so owners can find and order the correct replacement parts quickly and with confidence. What it does:

• Shows parts diagrams and item numbers to match visible components
• Lists factory part numbers and typical quantities for each component
• Helps the correct replacement part for failed or damaged components
• Speeds parts lookup during troubleshooting and repair planning

• This is a reference document, not a replaceable hardware component
• Keep the document dry and store with appliance paperwork for future reference
• Use with the appliance service manual or technical documentation for full repair instructions

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
