Parts for Kenmore 790.96623701 (79096623701, 790 96623701): Backguard Parts

Oven won't heat but clock and burners work? This range control board manages oven and broiler heating. Moderate DIY difficulty, requires careful wire matching.

Replace your damaged or missing range door trim. This cosmetic piece covers the door edge, providing a finished look. Order now if yours is cracked or worn.

Black top cap trim for range burners. Replaces cracked, chipped, or missing trim pieces that affect your cooktop's finished appearance and fit.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Fix a range that won't heat, has a blank display, or shows error codes with a new control board. This electronic timer regulates oven temperature and functions.

This is a relay board that controls power to the surface burner elements on an electric range or cooktop. It receives signals from the electronic oven control and switches the heating elements on and off at the correct power levels. Replace this board if your surface burners fail to heat, heat inconsistently, stay on continuously, or if you notice error codes related to the surface elements.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

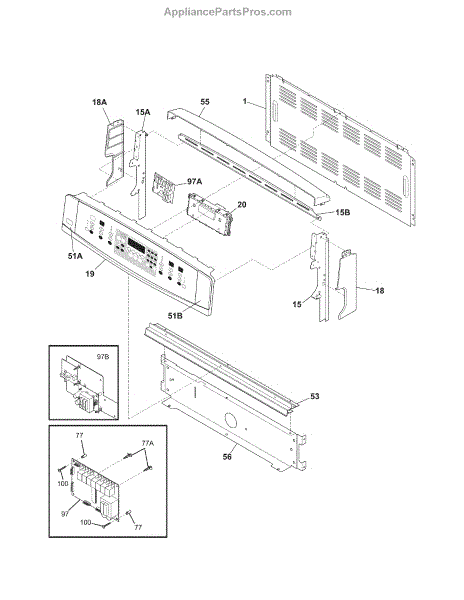

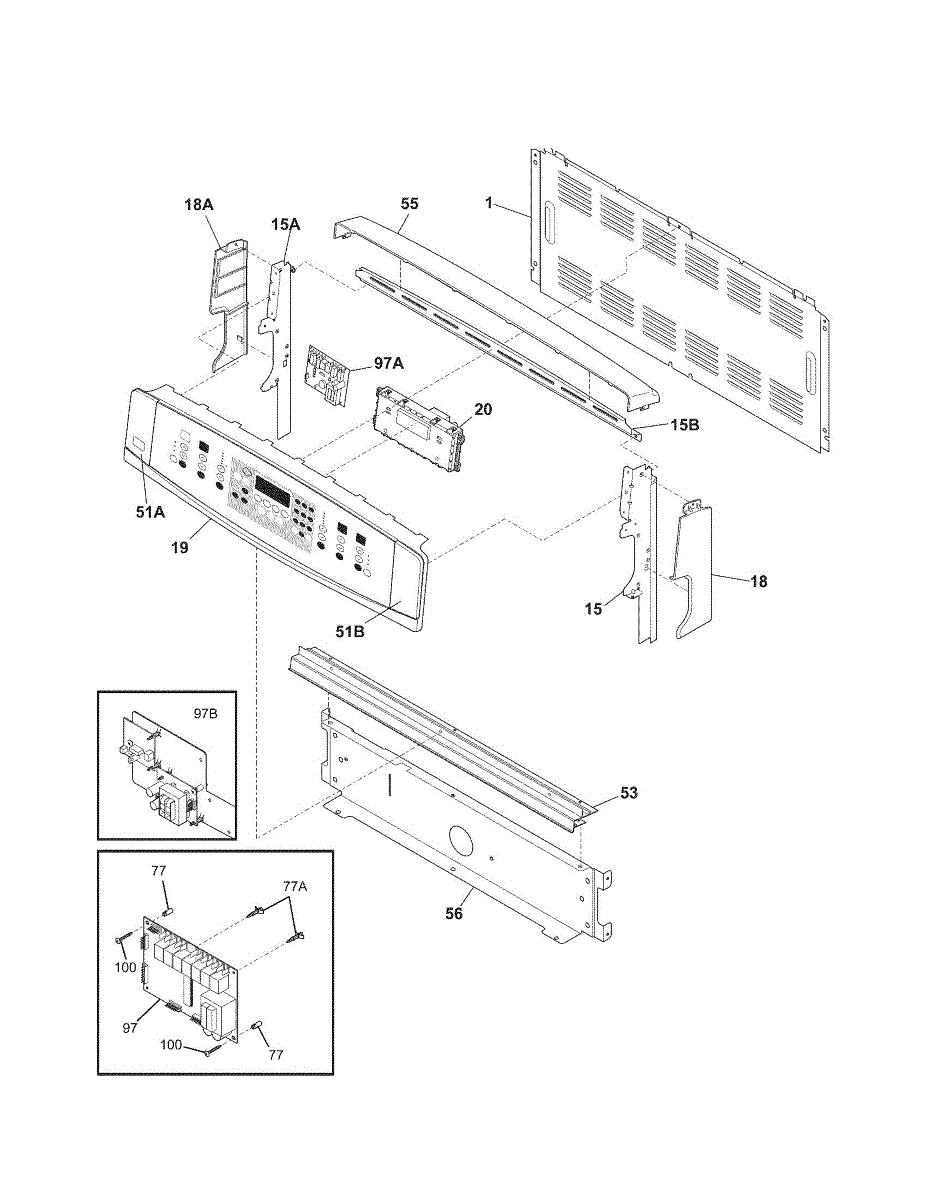

This repair parts list is the official parts diagram and reference sheet used to identify replaced components and ordering numbers. It helps you locate the correct parts and plan a repair with clear illustrations and part callouts. What it does:

• Provides an exploded-parts diagram showing component locations and part numbers
• Helps identify the exact replacement parts needed for service or ordering
• Useful for troubleshooting by matching symptoms to specific components in the diagram
• Saves time by clarifying part names and quantities before ordering

• One printed or digital repair parts list/diagram

• No electrical or mechanical installation is required for the parts list itself
• Use the diagram to locate and order the correct replacement parts only
• Always disconnect power and follow safety instructions when replacing parts shown on the diagram
