Parts for Kenmore 790.96629700 (79096629700, 790 96629700): Backguard Parts

Oven won't heat but clock and burners work? This range control board manages oven and broiler heating. Moderate DIY difficulty, requires careful wire matching.

Replace your damaged or missing range door trim. This cosmetic piece covers the door edge, providing a finished look. Order now if yours is cracked or worn.

Black top cap trim for range burners. Replaces cracked, chipped, or missing trim pieces that affect your cooktop's finished appearance and fit.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Fix a range that won't heat, has a blank display, or shows error codes with a new control board. This electronic timer regulates oven temperature and functions.

This is a relay board that controls power to the surface burner elements on an electric range or cooktop. It receives signals from the electronic oven control and switches the heating elements on and off at the correct power levels. Replace this board if your surface burners fail to heat, heat inconsistently, stay on continuously, or if you notice error codes related to the surface elements.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

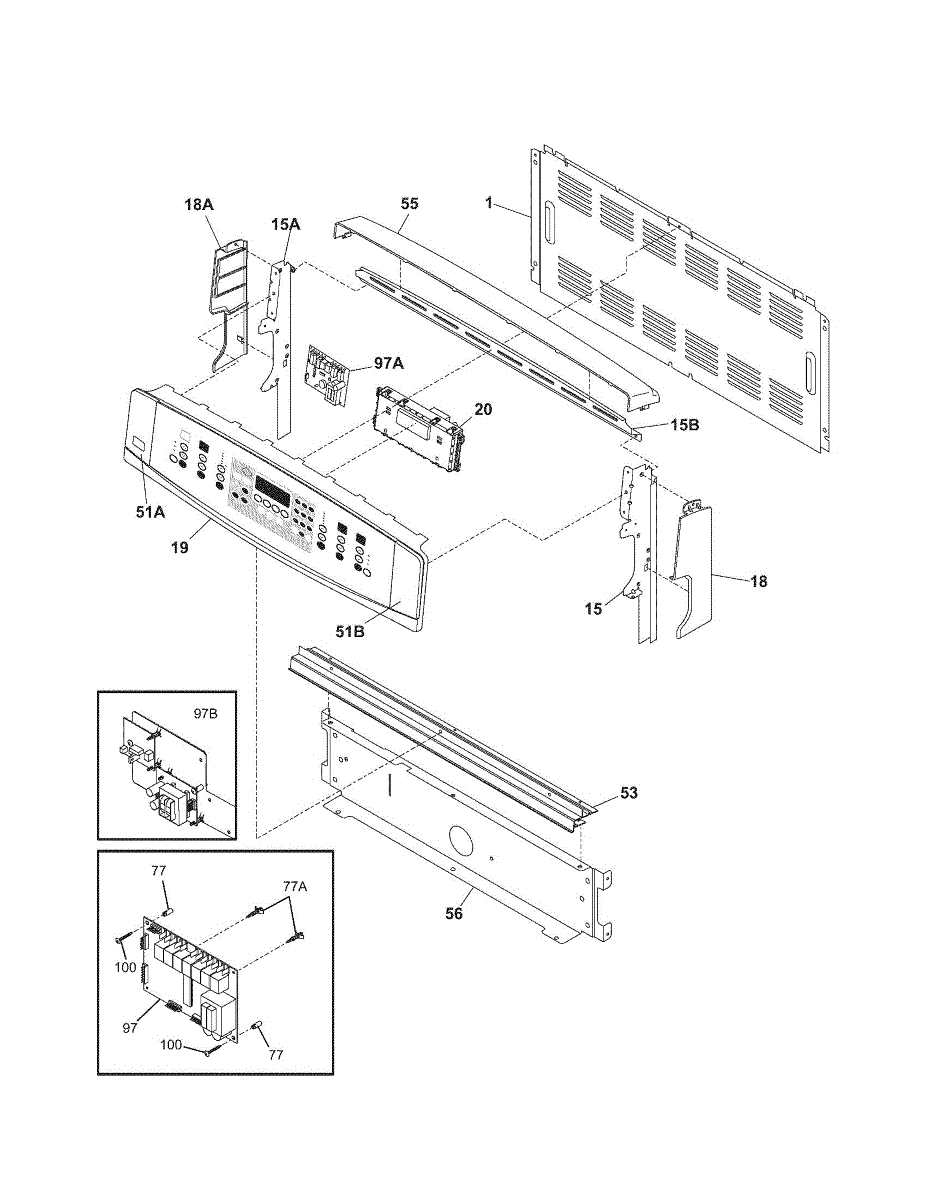

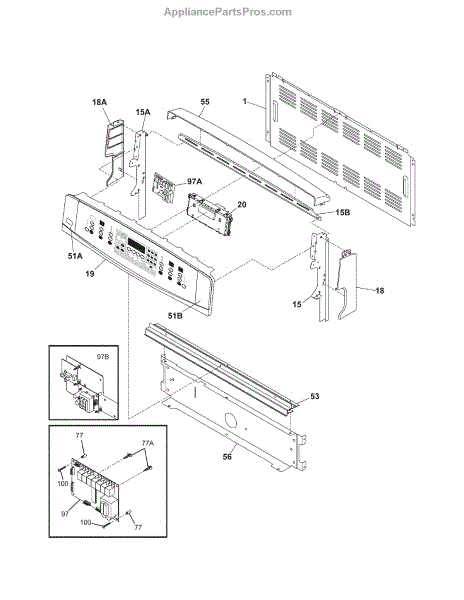

This paper parts list provides the factory parts diagram and reference list for identifying replacement parts and part numbers. It helps reduce mis-picks and delays. What it does:

• Shows the exploded diagram and part callouts for the appliance so owners can identify components
• Lists OEM part numbers and reference positions used in parts ordering
• Helps match symptoms to the correct service parts when troubleshooting
• Serves as a quick reference during repair or maintenance

• One printed repair parts list / parts diagram sheet

• No tools required; this is a reference document only
• Keep with the appliance documentation or service records for future reference
• If a replacement part is needed, use the diagram's reference number when ordering to ensure correct selection
• Dispose of per local paper-recycling guidelines
