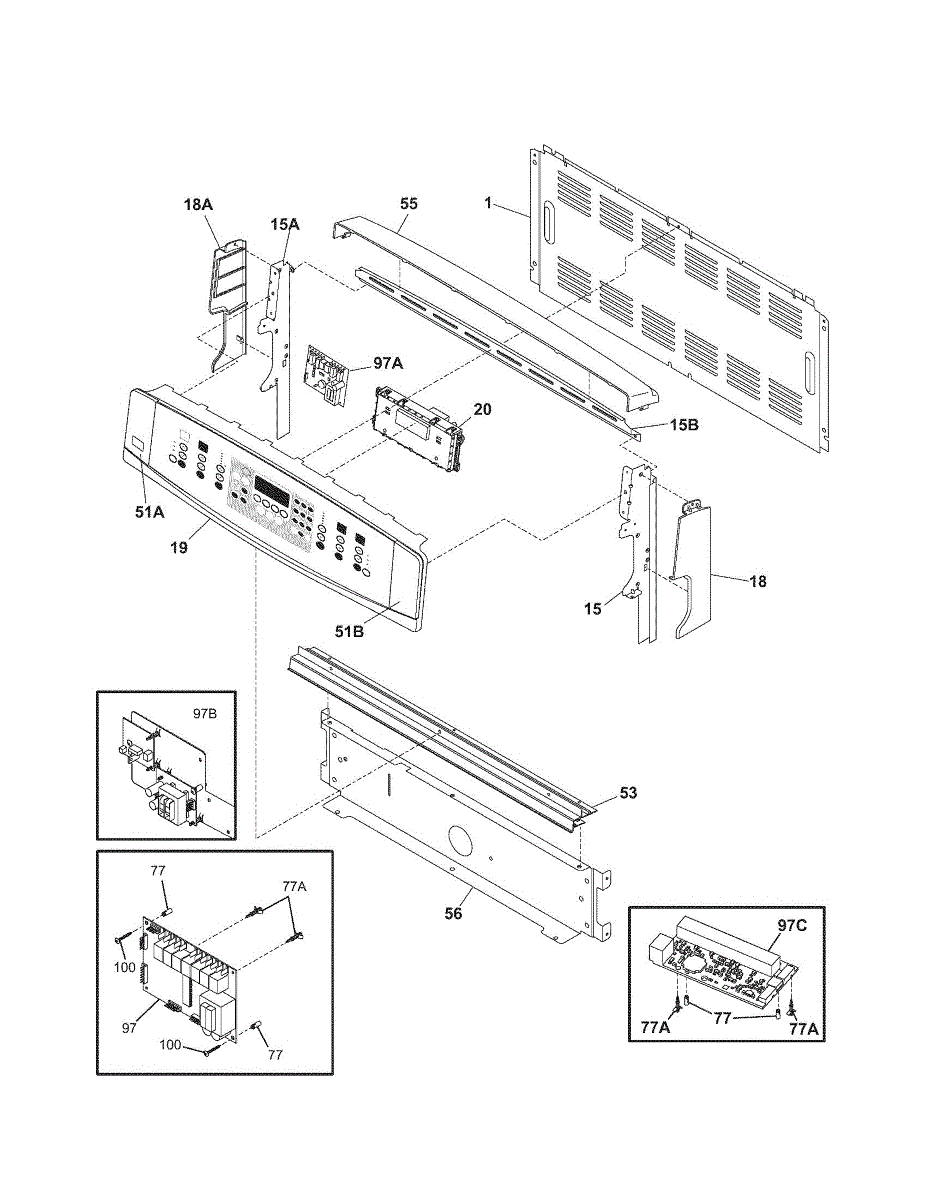

Parts for Kenmore 790.96643700 (79096643700, 790 96643700): Backguard Parts

This electronic control board manages all functions of your range, oven, or cooktop including temperature control, timing, and safety features. It processes input from control knobs and displays to operate heating elements and gas valves. Replace if your appliance won't heat properly, displays error codes, or controls don't respond.

Replace your damaged or missing range door trim. This cosmetic piece covers the door edge, providing a finished look. Order now if yours is cracked or worn.

Black top cap trim for range burners. Replaces cracked, chipped, or missing trim pieces that affect your cooktop's finished appearance and fit.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Fix a cooktop that won't heat, has no display, or shows error codes with this control board. Moderate DIY repair that restores full functionality.

This is a relay board that controls power to the surface burner elements on an electric range or cooktop. It receives signals from the electronic oven control and switches the heating elements on and off at the correct power levels. Replace this board if your surface burners fail to heat, heat inconsistently, stay on continuously, or if you notice error codes related to the surface elements.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

This repair parts list provides the exploded parts diagram and parts-number reference used to identify replacement components and speed parts ordering. It's a technician-oriented resource for locating the correct parts for a specific appliance model. What it does:

• Shows exploded views and part numbers for assemblies and components
• Helps identify worn, broken, or missing parts during diagnosis
• Clarifies part orientation and how components fit together
• Reduces ordering errors by matching parts to the diagram
• Useful when planning a repair or verifying needed parts

• Use the appliance model number to confirm the correct parts list before ordering
• Review the diagram and part numbers carefully to select the right replacement parts
• Disconnect power and follow all safety precautions before servicing the appliance

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
