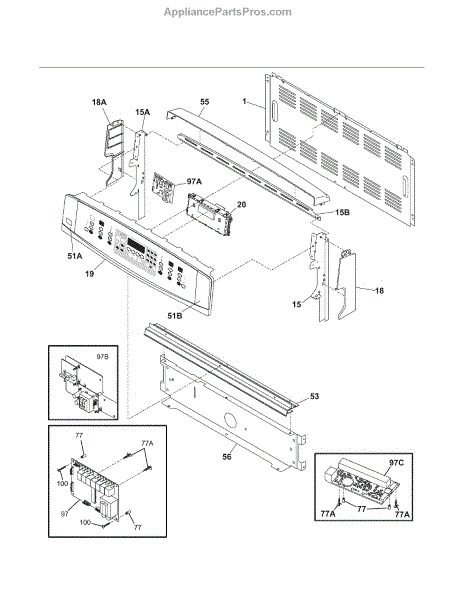

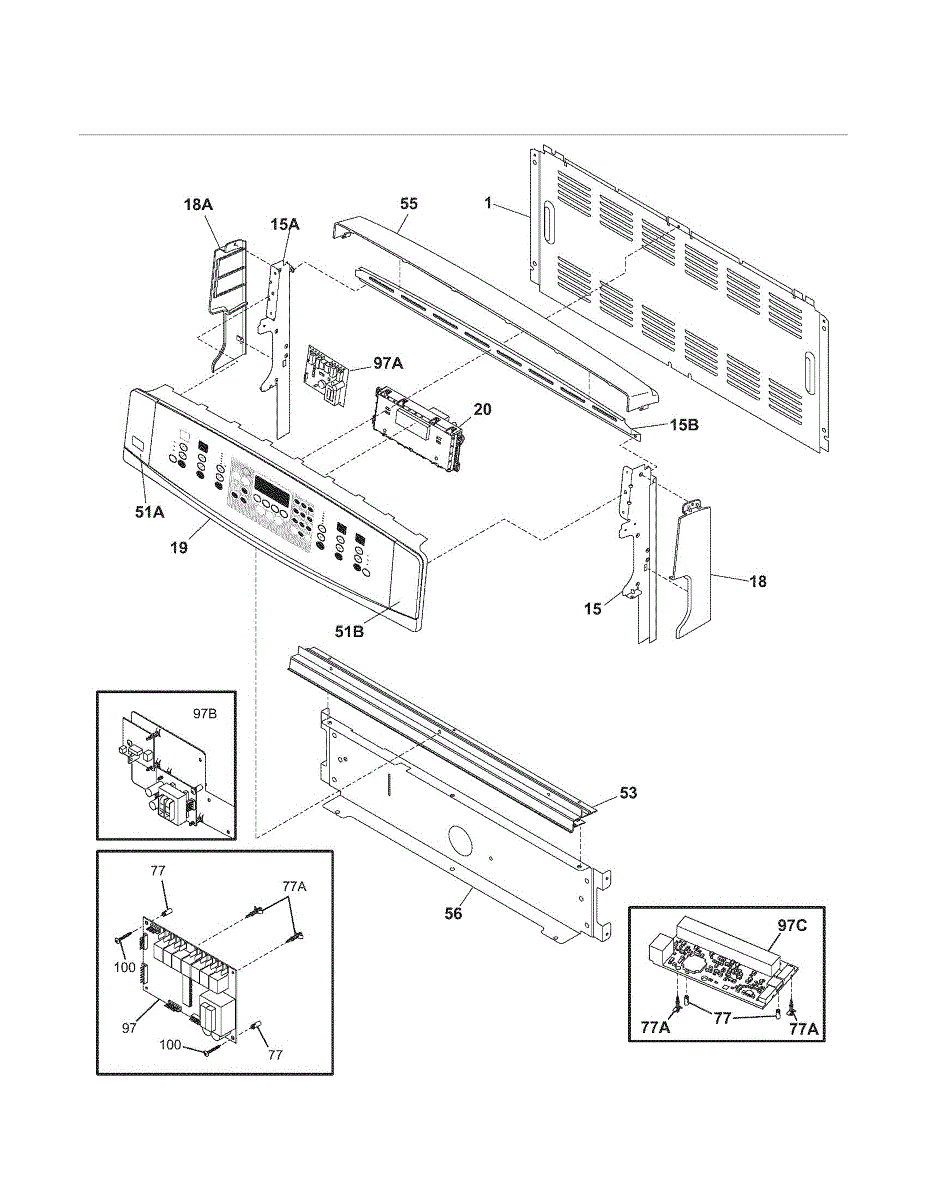

Parts for Kenmore 790.96649700 (79096649700, 790 96649700): Backguard Parts

This electronic control board manages all functions of your range, oven, or cooktop including temperature control, timing, and safety features. It processes input from control knobs and displays to operate heating elements and gas valves. Replace if your appliance won't heat properly, displays error codes, or controls don't respond.

Replace your damaged or missing range door trim. This cosmetic piece covers the door edge, providing a finished look. Order now if yours is cracked or worn.

Black top cap trim for range burners. Replaces cracked, chipped, or missing trim pieces that affect your cooktop's finished appearance and fit.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Fix a cooktop that won't heat, has no display, or shows error codes with this control board. Moderate DIY repair that restores full functionality.

This is a relay board that controls power to the surface burner elements on an electric range or cooktop. It receives signals from the electronic oven control and switches the heating elements on and off at the correct power levels. Replace this board if your surface burners fail to heat, heat inconsistently, stay on continuously, or if you notice error codes related to the surface elements.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

This repair parts list provides the official parts diagram and part-number listing used to identify service and replacement parts. It helps technicians and DIYers which components they need before ordering or repairing. What it does:

• Shows exploded diagrams and part numbers to locate components inside the appliance
• Clarifies exact part names and quantities referenced in service and parts catalogs
• Helps diagnose which component may need replacement when parts are unknown or unclear
• Reduces ordering errors by matching visual diagrams to part numbers

• This is a reference document — no physical installation is required
• Keep the sheet dry and flat; replace if torn, smeared, or illegible
• Use alongside the appliance service manual and safety procedures when servicing

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
