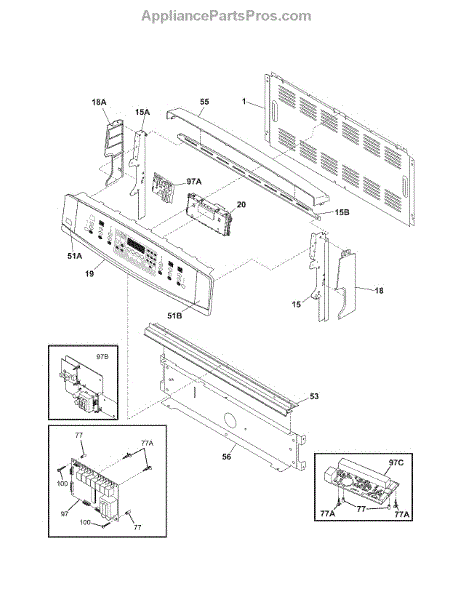

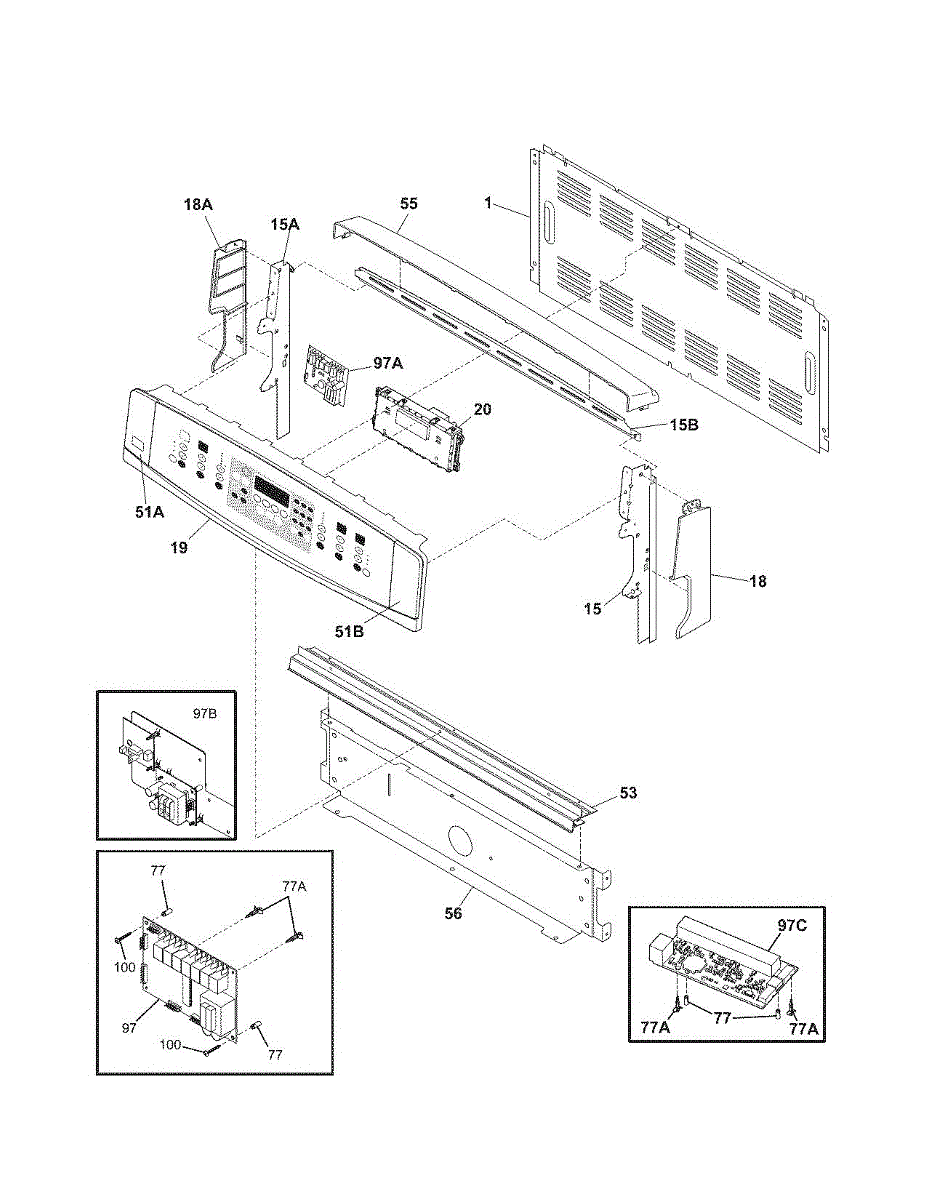

Parts for Kenmore 790.96649701 (79096649701, 790 96649701): Backguard Parts

Replace your damaged or missing range door trim. This cosmetic piece covers the door edge, providing a finished look. Order now if yours is cracked or worn.

Black top cap trim for range burners. Replaces cracked, chipped, or missing trim pieces that affect your cooktop's finished appearance and fit.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Fix a cooktop that won't heat, has no display, or shows error codes with this control board. Moderate DIY repair that restores full functionality.

Oven won't heat or display is blank? This electronic control board manages temperature, timers, and element power. Moderate DIY repair in 1-2 hours.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

This is a replacement repair parts list — the printed parts diagram and reference sheet technicians use to identify service parts and part numbers. Keeps part callouts and diagrams accessible for service and ordering. What it does:

• Provides the factory parts diagram and part number list for quick identification
• Helps locate correct replacement parts and quantities during repairs
• Useful when the original paper diagram is missing, torn, or illegible
• Speeds parts lookup and reduces ordering errors

• One printed repair parts list / parts diagram sheet

• No tools required; store with the appliance manual or service records
• Handle by edges to avoid tearing; store flat or in a protective sleeve
• Keep out of reach of children and away from water to prevent damage

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
