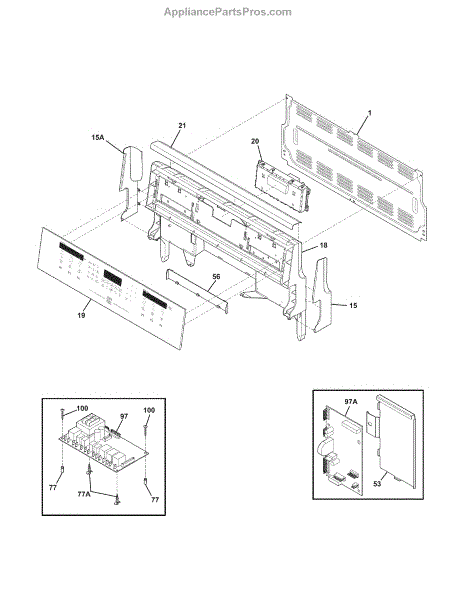

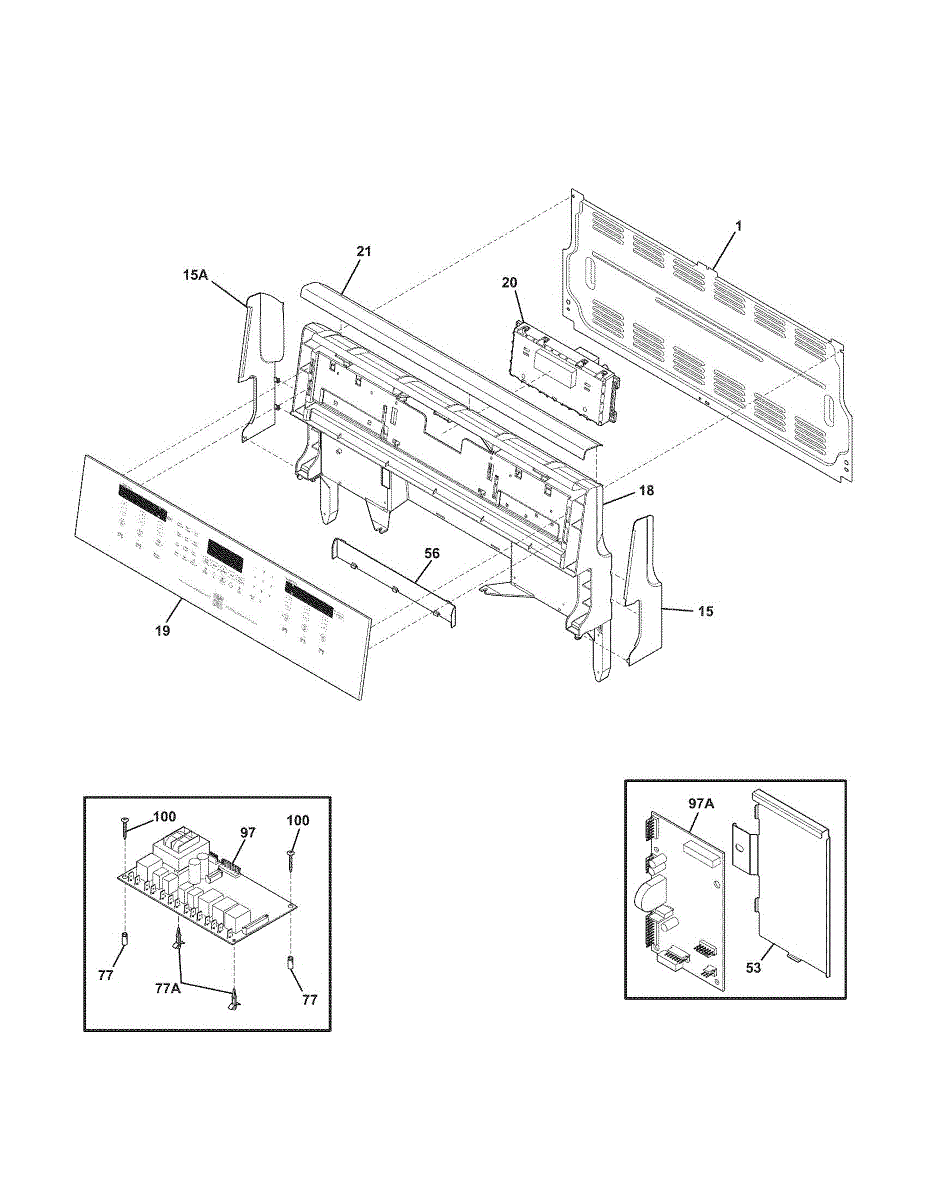

Parts for Kenmore 790.97102011 (79097102011, 790 97102011): Backguard Parts

Fix oven display not working, keypad unresponsive, or temperature control issues. This electronic control board restores oven functions and heating cycles.

Decorative trim piece that finishes the range door opening. Replaces cracked, chipped, or missing trim along the door frame for a clean look.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Oven won't heat to set temperature or display shows error codes? This electronic control board manages bake/broil circuits and clock functions. DIY repair.

Size: 8-18ab x 0.5 inch.

This printed parts list provides the factory parts diagram and reference numbers to help identify replacement parts for your appliance. Keeps all part references and assembly illustrations in one easy-to-use sheet. What it does:

• Shows the factory exploded diagram and reference numbers for parts identification
• Useful for locating parts shown in service literature during troubleshooting
• Prevents guesswork by matching visual diagrams to appliance components

• No tools required; store with appliance literature for future service
• Not an electrical or functional component—used for reference only
• Keep dry and undamaged for accurate part reference during repairs

Replace a damaged or frayed wire harness in your range. This internal wiring assembly connects electrical components. Order a new harness if yours is worn.

Replace your range's wire harness if the wiring assembly is damaged, frayed, or burnt. Connects electrical components inside the oven and cooktop.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
