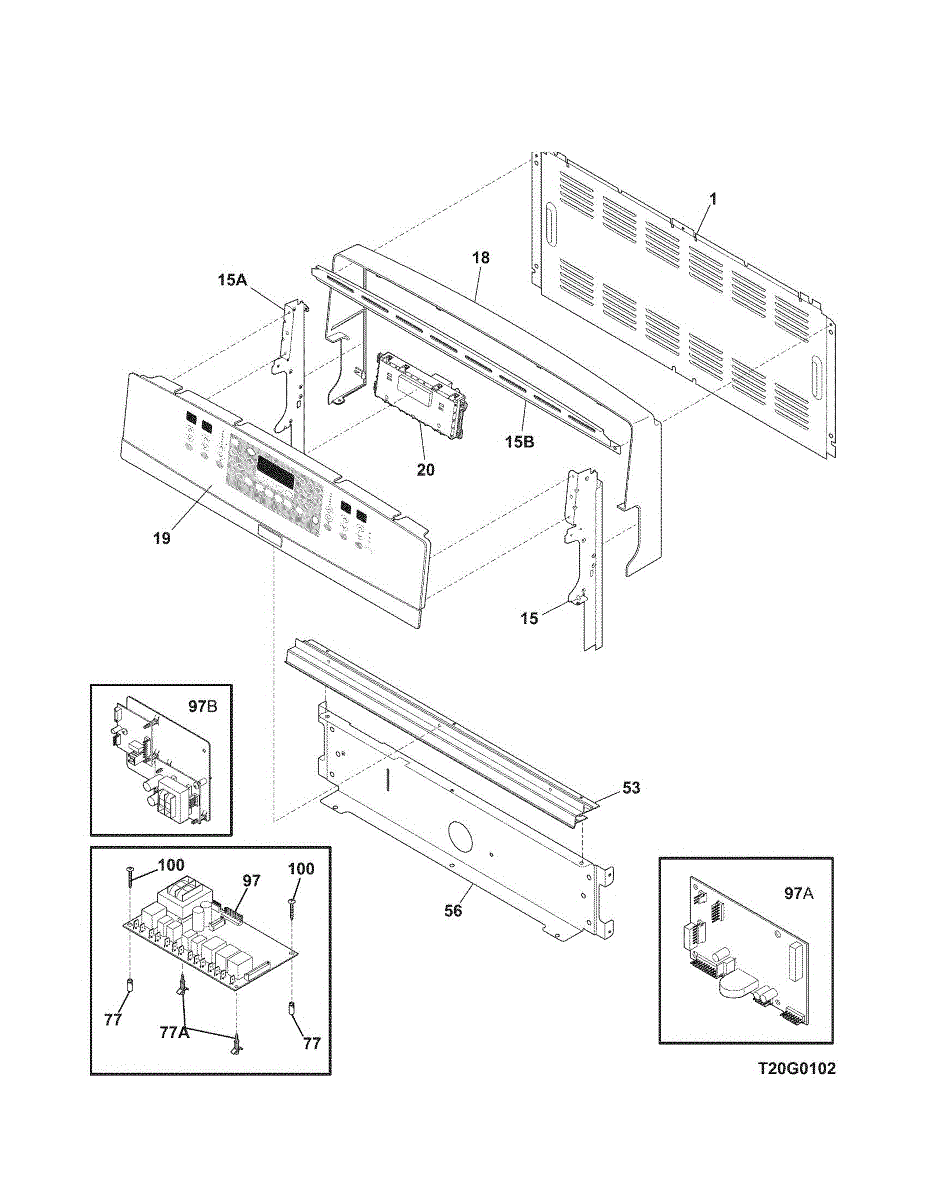

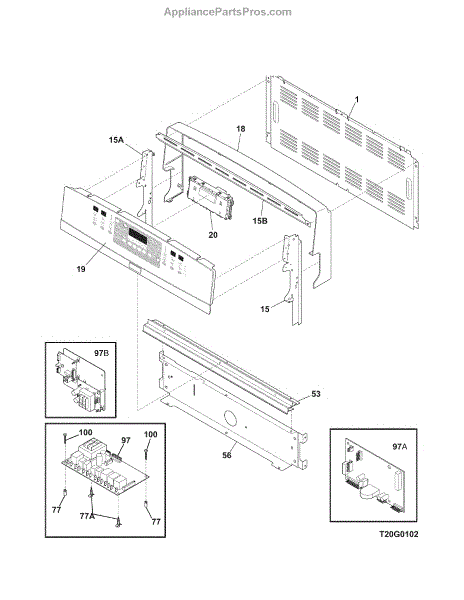

Parts for Kenmore 790.97473800 (79097473800, 790 97473800): Backguard Parts

This electronic control board manages all your oven's functions including temperature control, timer settings, and heating element operation. It processes user inputs and coordinates the oven's cooking cycles to maintain proper temperatures. Replace this part if your oven won't heat, shows error messages, or the digital display is malfunctioning.

Replace your damaged or missing range door trim. This cosmetic piece covers the door edge, providing a finished look. Order now if yours is cracked or worn.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Fix range issues like unresponsive controls, incorrect temperatures, or display errors with this control board assembly. Moderate DIY repair for home.

Oven won't heat to set temperature or display shows error codes? This electronic control board manages bake/broil circuits and clock functions. DIY repair.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

This paper repair parts list provides the appliance's parts diagram and part number references so owners can identify and order the correct replacement components. Handy for service, parts lookup, and reference during repairs. What it does:

• Shows exploded diagrams and part callouts to locate parts and assembly relationships
• Lists OEM part numbers and names used for accurate ordering
• Helps diagnose which component to replace when a part is missing or failing
• Useful for DIYers preparing for repairs or parts purchases

• This is a reference document, not a field-mounted or installed component
• Keep with the owner's manual or service records to aid future repairs
• Replace if torn, illegible, or missing to ensure accurate part identification
• Handle carefully and store dry to preserve printed information

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Two-piece broiler pan set for your range or wall oven. Includes vented insert and drip tray. Replace cracked, warped, or missing broiler pans.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
