Parts for Kenmore 790.97503001 (79097503001, 790 97503001): Backguard Parts

This wiring harness routes power and control signals between the appliance's electrical components to restore reliable operation and safe connectivity. It replaces a damaged, frayed or disconnected harness assembly. What it does

• Re-establishes electrical connections between control board, switches and motors where applicable
• Restores power/signal continuity to components experiencing intermittent or no power
• Helps stop symptoms like no-start, intermittent operation, and blown fuses when caused by wiring damage
• Replaces visibly burned, cut or corroded wiring that can create safety and function issues

• One wiring harness assembly as shown

• Verify the appliance is fully unplugged or power is shut off at the breaker before starting work
• Match wire colors, connector shapes and pin counts to the originals before connecting
• Secure harness away from moving parts and heat sources; replace any retaining clips or fasteners that are damaged

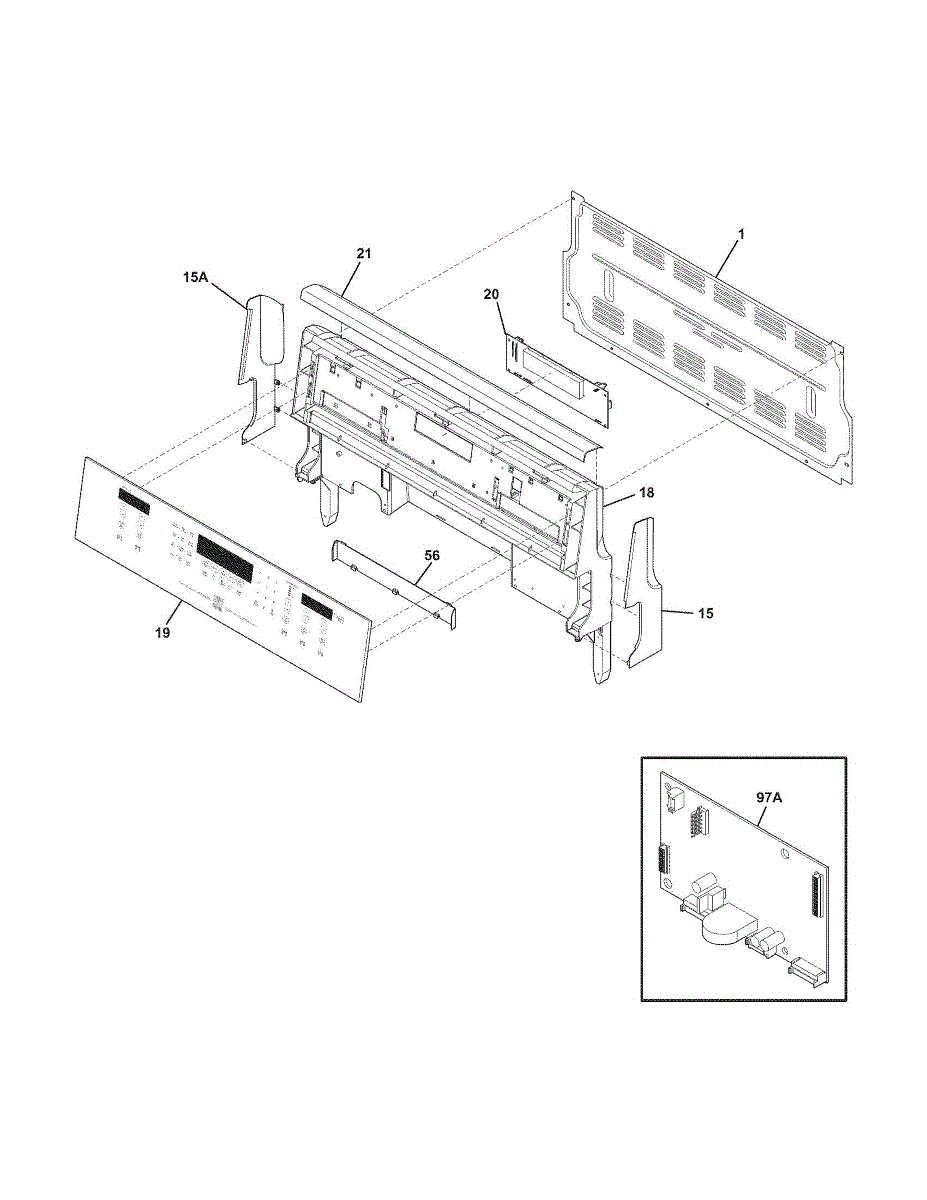

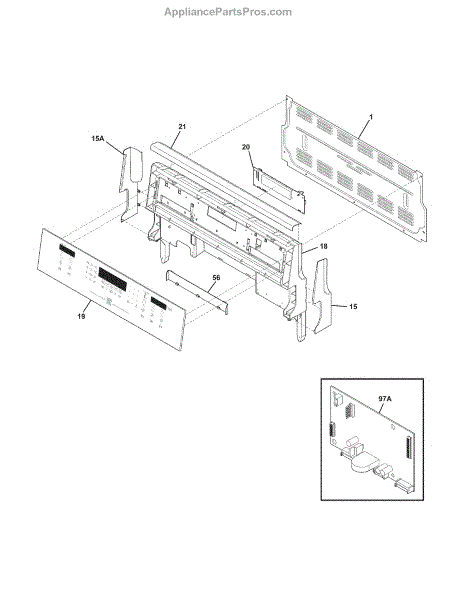

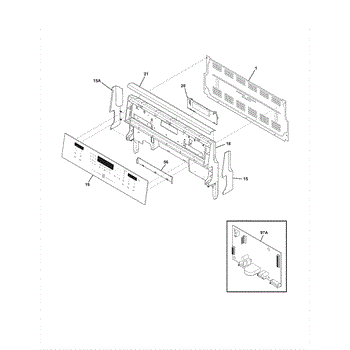

This repair parts list is a parts diagram and itemized reference to help identify replacement components and ordering details for service. Use it to locate part positions and part numbers before purchasing or repairing. What it does

• Shows component locations and reference numbers on the appliance for fast identification
• Lists OEM part numbers so you can confirm correct replacements
• Helps diagnose which parts to order based on observed symptoms
• Simplifies communication with technicians or parts suppliers

• This is a reference document only; it does not include physical replacement parts or tools
• Follow all safety procedures when servicing appliances; disconnect power and/or gas first

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Replacement 10-32 x 17/32 screw secures range panels, trim pieces, and internal brackets. Restores stable fit and reduces rattling from loose components.
