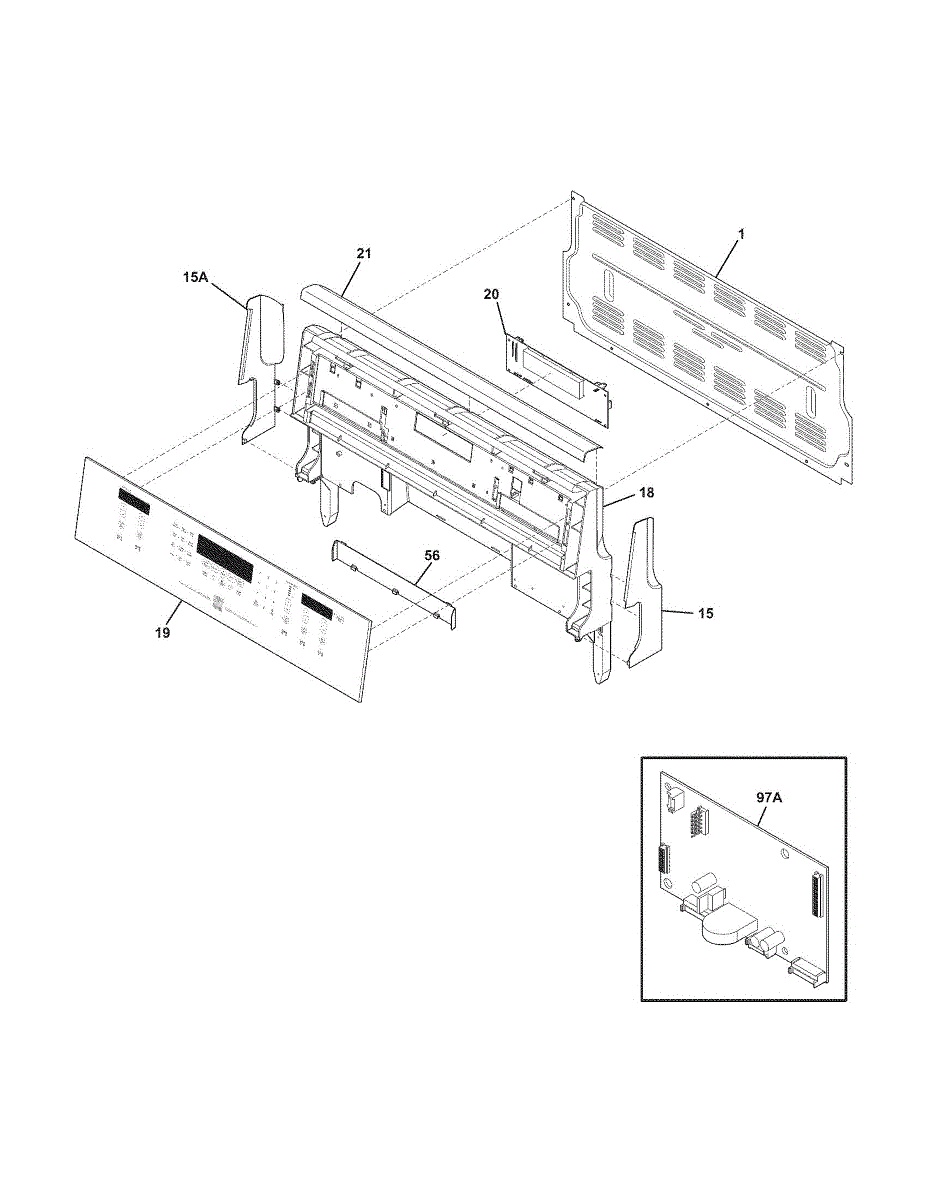

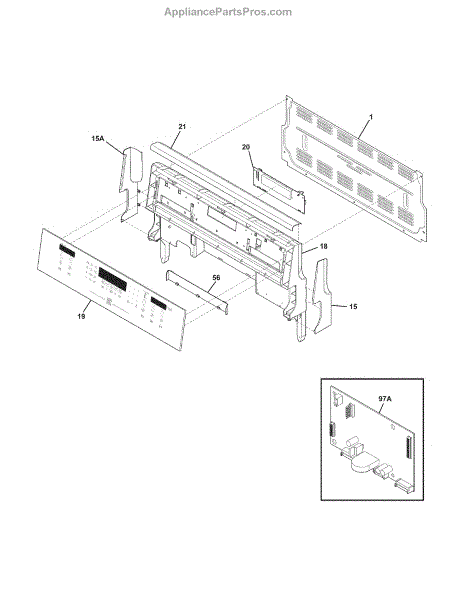

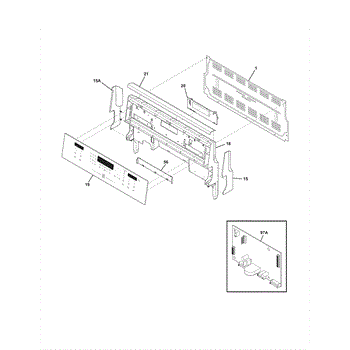

Parts for Kenmore 790.97509002 (79097509002, 790 97509002): Backguard Parts

Replace your range's control panel touch pad when buttons are cracked, worn, or unresponsive. This overlay installs on the control board housing.

Decorative trim piece that finishes the range door opening. Replaces cracked, chipped, or missing trim along the door frame for a clean look.

This wiring harness routes power and control signals between the appliance's electrical components to restore reliable operation and safe connectivity. It replaces a damaged, frayed or disconnected harness assembly. What it does

• Re-establishes electrical connections between control board, switches and motors where applicable
• Restores power/signal continuity to components experiencing intermittent or no power
• Helps stop symptoms like no-start, intermittent operation, and blown fuses when caused by wiring damage
• Replaces visibly burned, cut or corroded wiring that can create safety and function issues

• One wiring harness assembly as shown

• Verify the appliance is fully unplugged or power is shut off at the breaker before starting work
• Match wire colors, connector shapes and pin counts to the originals before connecting
• Secure harness away from moving parts and heat sources; replace any retaining clips or fasteners that are damaged

Replacement owner's manual for your range. Provides operating instructions, maintenance guidelines, and safety information. Order if original is lost or damaged.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Replacement 10-32 x 17/32 screw secures range panels, trim pieces, and internal brackets. Restores stable fit and reduces rattling from loose components.
