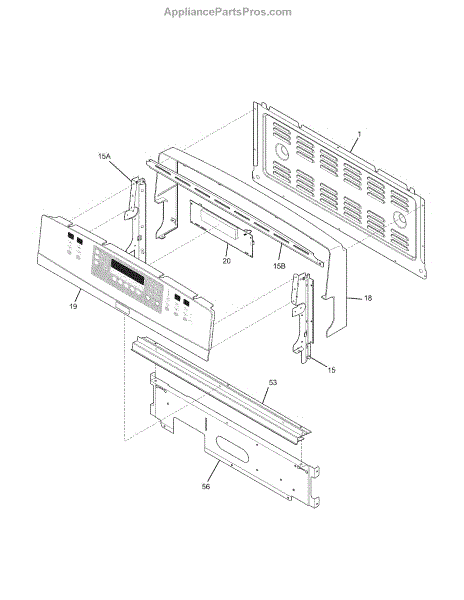

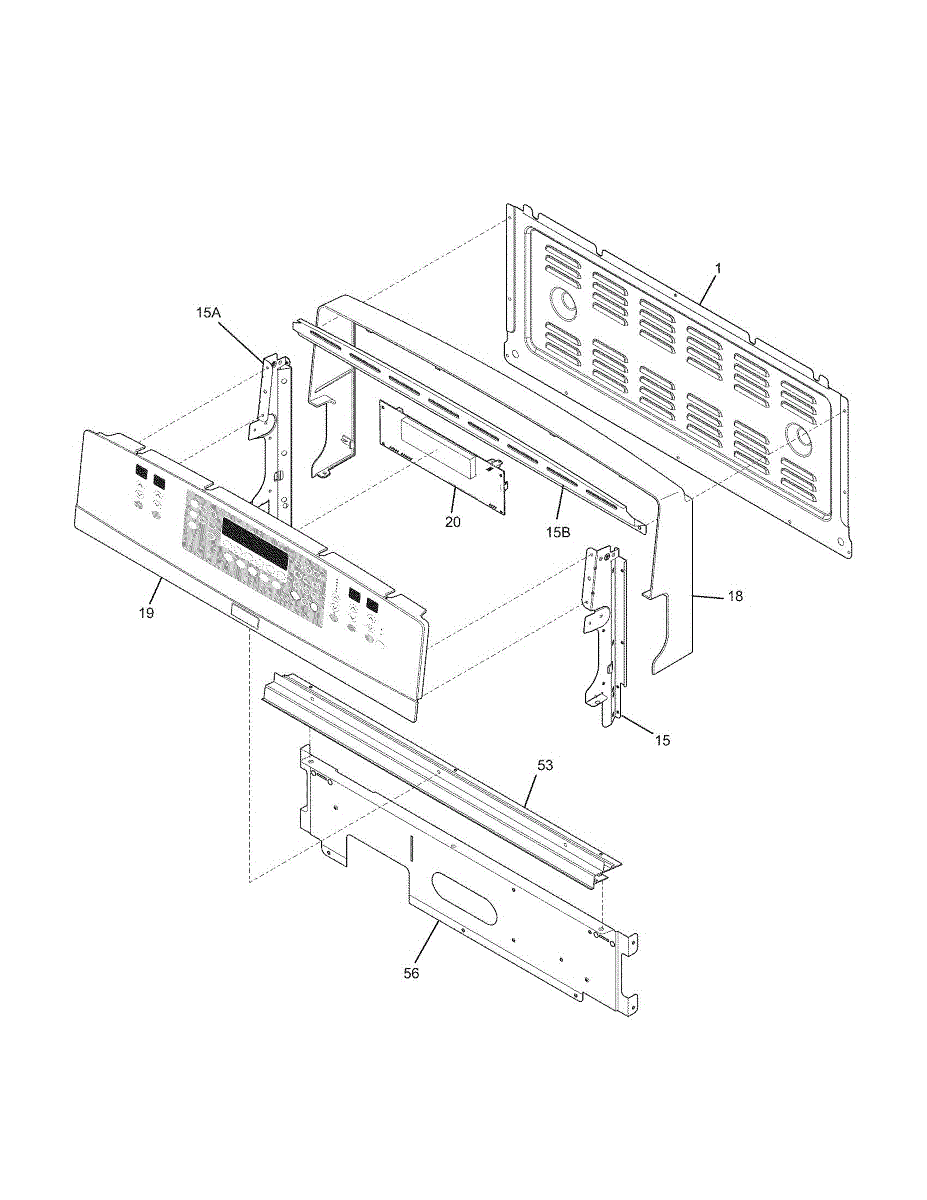

Parts for Kenmore 790.98022801 (79098022801, 790 98022801): Backguard Parts

This is the outer cabinet wrapper that wraps around the body of the range, forming the exterior shell of the appliance. It provides structural support and a finished appearance. Replace this wrapper if it is dented, rusted, warped, or if the finish is peeling or damaged.

Replacement touch pad control panel for your range. Installs on the front control area. Order if your original panel is cracked, worn, or unresponsive.

Range showing error codes or not responding to buttons? This electronic control board manages all user inputs and cycle functions. Common DIY repair.

Replace your damaged or missing range door trim. This cosmetic piece covers the door edge, providing a finished look. Order now if yours is cracked or worn.

This printed repair parts list is the factory parts diagram sheet used to identify appliance components and their part numbers. It helps technicians or DIYers find the correct parts for ordering and repair reference. What it does:

• Shows the exploded parts diagram and reference numbers for the appliance
• Lists OEM part numbers and item callouts used for ordering replacements
• Useful for troubleshooting and planning repairs when parts need identification

• One printed repair parts list

• No installation required; store with appliance manuals or service records
• Handle carefully to avoid tearing or smudging printed information
• If laminated or scanned for reuse, ensure legibility before relying on part numbers
• For ordering, always match part numbers from the list to the product page

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
