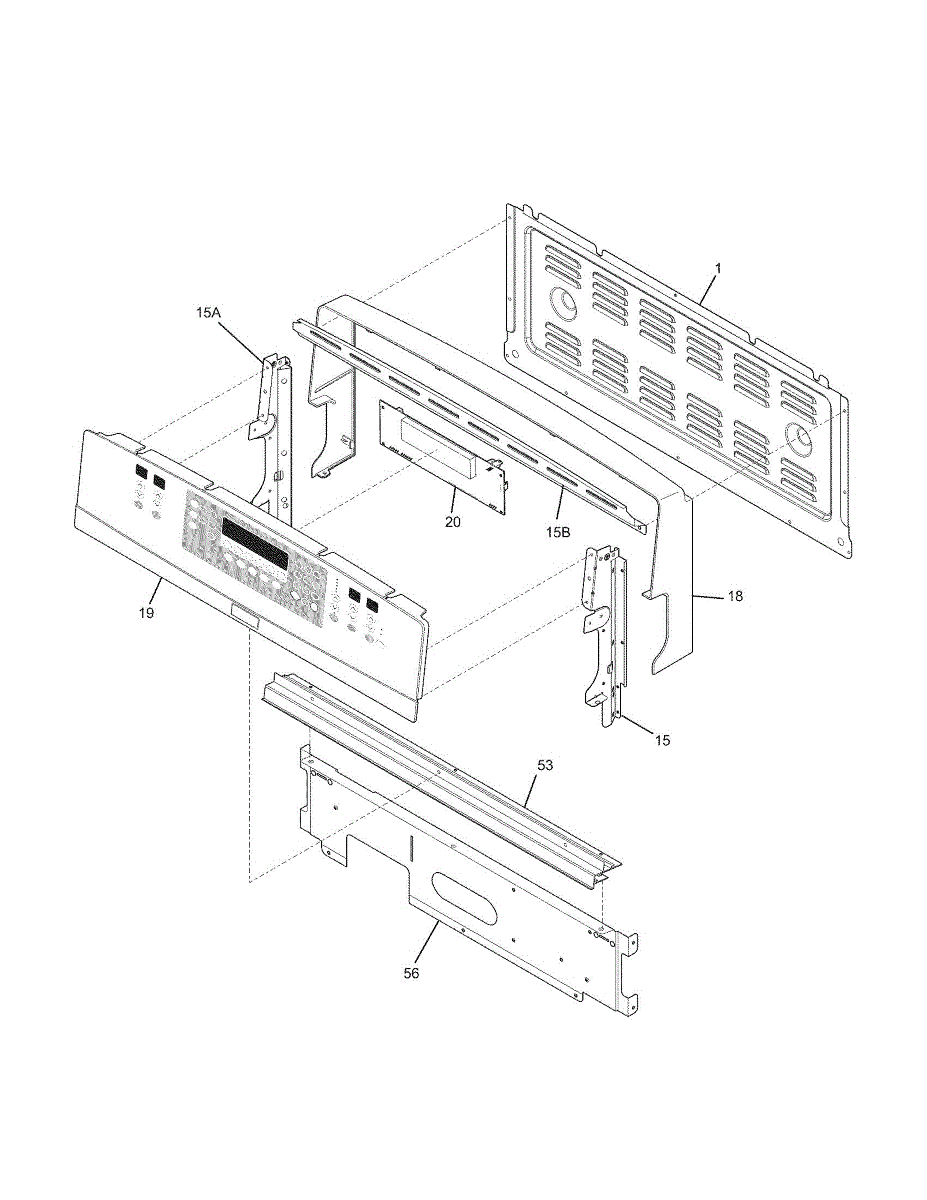

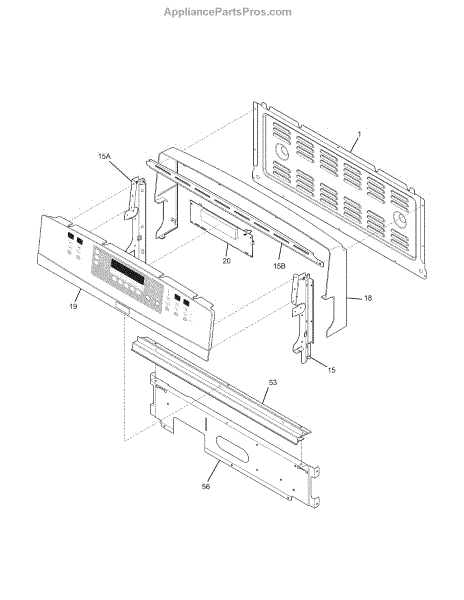

Parts for Kenmore 790.98023800 (79098023800, 790 98023800): Backguard Parts

Range showing error codes or not responding to buttons? This electronic control board manages all user inputs and cycle functions. Common DIY repair.

Replace your damaged or missing range door trim. This cosmetic piece covers the door edge, providing a finished look. Order now if yours is cracked or worn.

This repair parts list is the parts diagram and reference listing used to identify replacement components and assembly locations. It helps owners quickly match part names and reference numbers for ordering and service. What it does:

• Shows the appliance's exploded view so you can see how components fit together
• Lists reference numbers and part names used by parts catalogs and service guides
• Aids troubleshooting by clarifying assembly relationships and part placement

• This is a reference document, not a physical replacement component; use it to identify parts before service
• Keep the list with the appliance or service records for future reference
• Follow all safety procedures and disconnect power before servicing any appliance parts
• For installation instructions, refer to the service manual or manufacturer guidance for the specific part

Replacement broiler pan for your range or wall oven. Installs in the oven cavity to catch drippings during broiling. Needed when original is warped or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Two-piece broiler pan set for your range or wall oven. Includes vented insert and drip tray. Replace cracked, warped, or missing broiler pans.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
