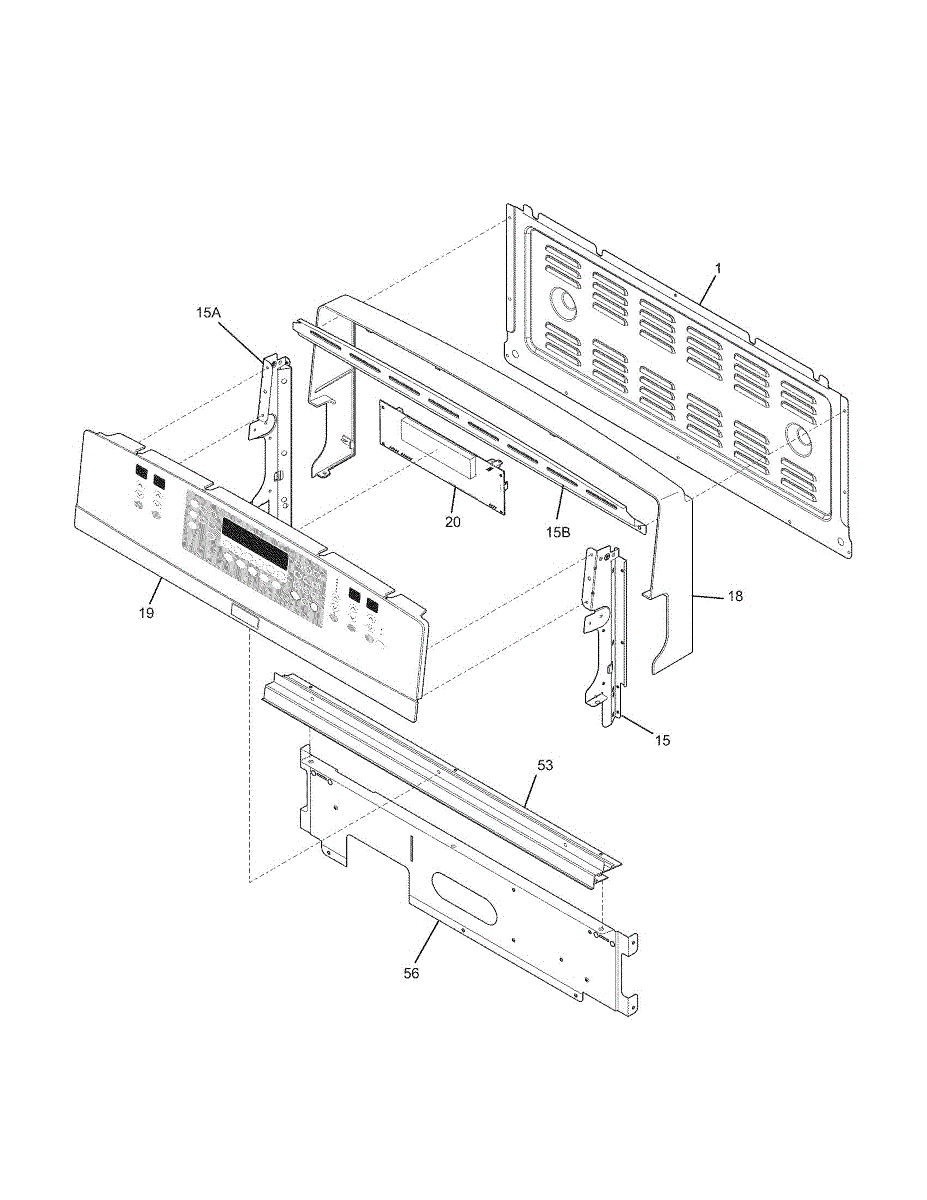

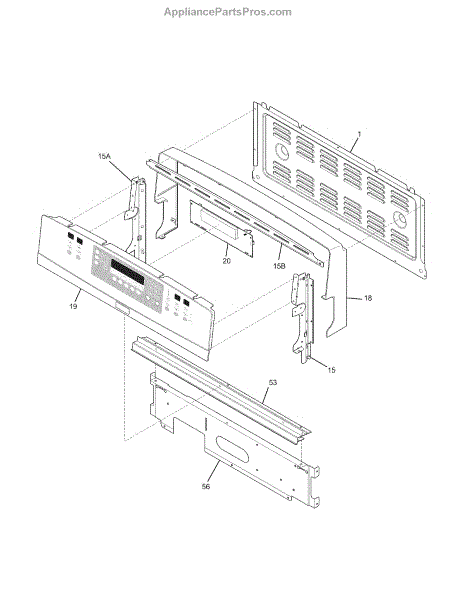

Parts for Kenmore 790.98023801 (79098023801, 790 98023801): Backguard Parts

Range showing error codes or not responding to buttons? This electronic control board manages all user inputs and cycle functions. Common DIY repair.

Replace your damaged or missing range door trim. This cosmetic piece covers the door edge, providing a finished look. Order now if yours is cracked or worn.

This is a manufacturer parts list sheet that shows the parts diagram and part numbers for identifying replacement components—handy for ordering the correct parts and planning service. What it does:

• Provides the official parts diagram with reference numbers for the appliance
• Helps you identify the exact replacement parts by OEM part number
• Useful when a printed parts list is missing, damaged, or unclear
• Speeds accurate parts ordering and reduces incorrect purchases

• No installation required; store with appliance paperwork for future reference
• Use alongside the model-specific service literature or online diagrams when ordering parts
• Keep away from moisture and direct sunlight to preserve print legibility

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
