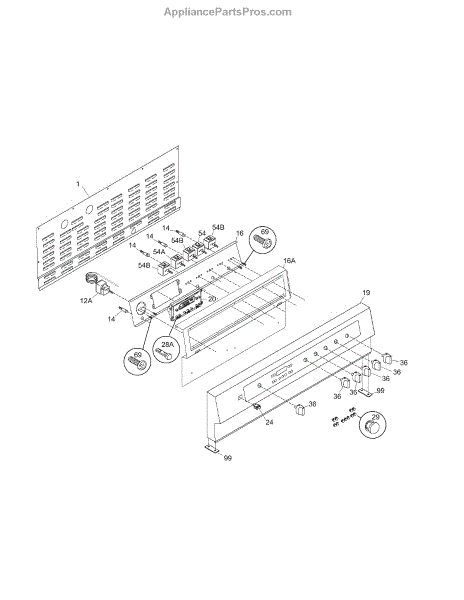

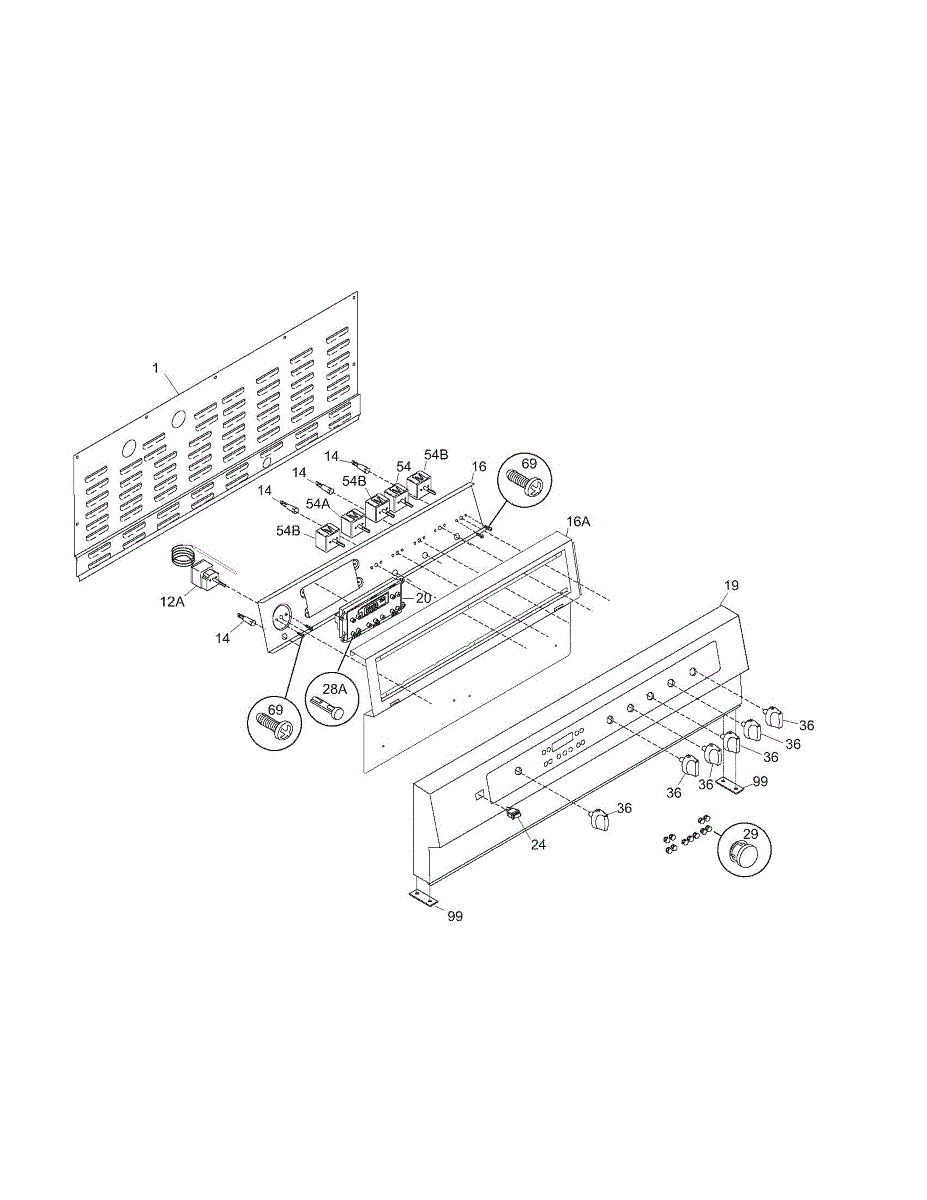

Parts for Kenmore 790.99513307 (79099513307, 790 99513307): Backguard Parts

This oven thermostat senses and regulates oven temperature so food cooks evenly and the range reaches set temperatures. It replaces a failed temperature control to restore accurate heating and cycle behavior. What it does:

• Closes and opens the control circuit to maintain the oven at the selected temperature
• Can correct symptoms such as oven not reaching set temperature, overheating, or excessive cycling
• Works with the oven's control system and heating elements to stabilize bake and broil operations
• Mechanical design — avoid bending or damaging the sensing element/capillary

• One oven thermostat

• Disconnect power to the appliance before starting any service
• Handle the thermostat and sensing element carefully; do not kink or sharply bend the capillary
• Verify proper thermostat mounting and oven cavity seals for accurate temperature control

This interior refrigerator light provides bright, even illumination so you can see food and settings clearly while the door is open. Designed to fit the factory light location and restore proper interior lighting. What it does

• Illuminates the refrigerator compartment for improved visibility
• Replaces a burned-out, flickering, or dim interior light
• Helps locate food and read controls without removing items
• Works with the factory light housing and switch to operate when the door opens

What's included One interior refrigerator light Install notes

• Disconnect power to the appliance before starting any work
• Handle glass or bulb components carefully to avoid breakage and injury
• Use the exact part number for compatibility; do not force if fitment differs

This is an oven control board that includes timer and clock functions for managing cooking operations. It regulates oven temperature, timing, and coordinates between different heating elements. Replace this part if your oven won't maintain proper temperature, the timer doesn't work, or cooking cycles don't start or complete correctly.

If your range burner won't heat, stays on constantly, or won't adjust temperature, the infinite switch likely failed. This part regulates heat levels.

The range timer knob shaft is the rotating rod that connects the timer control knob to the internal timer mechanism behind the control panel. Replace when the timer knob spins freely without engaging, feels loose, or the timer won't advance properly.

Replaces a worn, cracked, or missing range control knob. Restores safe operation of burners and oven functions. Graphite finish matches original knob.

Range burner not heating or stuck on high? This infinite switch controls surface element temperature. Common repair for unresponsive controls.

Element won't heat or overheats? This infinite switch kit restores precise temperature control to your cooktop's burners. Fixes erratic heating issues.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This repair parts list is the official parts diagram sheet that identifies service parts and part numbers so you can find the correct replacements. It helps you locate and verify components before ordering or repair. What it does:

• Shows exploded diagrams and reference part numbers for the appliance
• Helps identify the correct replacement parts and their location
• Useful for diagnosing which parts are causing a symptom
• Simplifies ordering by matching parts to the OEM reference numbers

• One repair parts list / parts diagram sheet (printed document)

• This is a documentation item only; no physical installation required
• Use the parts list as a reference when planning repairs or ordering parts
• Always disconnect power and follow safety instructions before servicing the appliance

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
