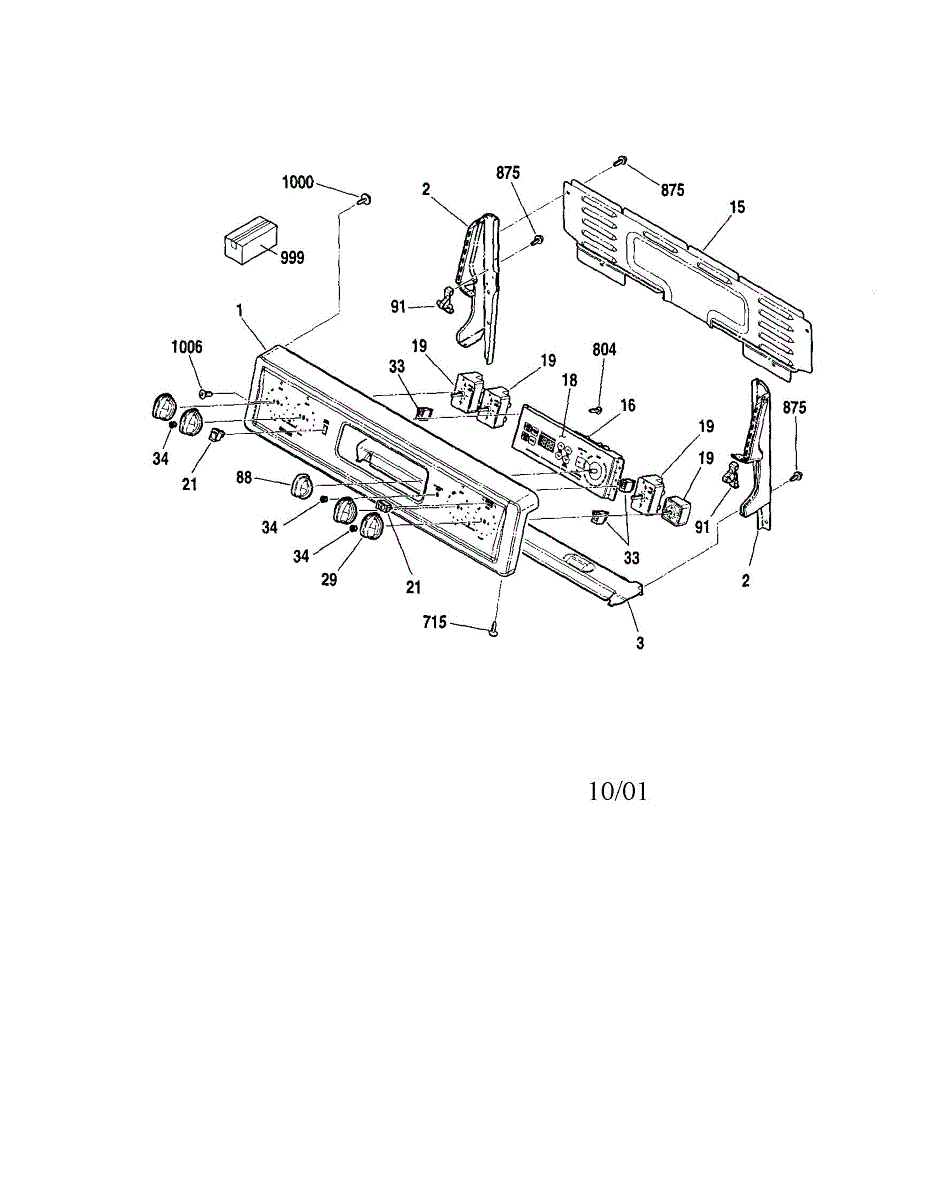

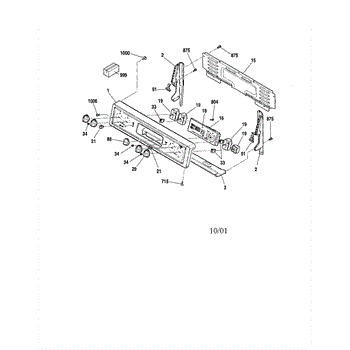

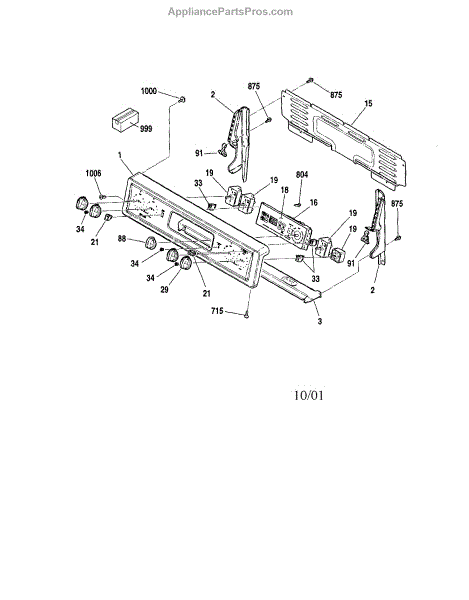

Parts for Kenmore 911.94752010 (91194752010, 911 94752010): Backguard Parts

Bisque. Right hand side

Bisque. Left hand side

Black right-hand side endcap for ranges. Replace this cosmetic trim piece if your existing endcap is cracked, broken, or missing to restore appearance.

Black. Left hand side

White. Left hand side

Heat shield that installs between the cooktop and control panel on your range. Replace if cracked, warped, or missing to protect components from heat damage.

Burner stuck on high or won't heat properly? This infinite switch controls temperature settings. Common fix for dual burners that won't adjust heat levels.

Burner stays on high or won't turn off completely? This infinite control switch regulates surface burner heat. Simple 10-minute DIY fix with video guide.

Burner won't shut off or stays on high? The infinite control switch regulates surface burner heat. Easy DIY repair, typically 10-15 minutes to replace.

Burner won't adjust temperature or stuck on high? This surface burner control switch restores heat control. Quick 10-minute fix with basic tools.

Range burner not heating properly or won't adjust temperature? This infinite switch controls surface element heat levels. Moderate DIY repair in 30-45 minutes.

Burner won't heat or stay at the right temperature? This range infinite switch controls surface element heat levels. Direct replacement part.

Replace your range pilot indicator light when it stays on, flickers, or won't illuminate. Signals when cooktop elements are hot for safety. Verify fit by model.

Black. 8-18 x 5/16 inch.

White. 8-18 x 5/16 inch.

Bisque. 8-18 x 5/16 inch.

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Black. 8-18 AB HXW 3/8

This wiring diagram is the factory service schematic that shows the electrical layout and connector locations for the appliance, helping technicians identify circuits and trace wiring for safe diagnostics and repairs. It provides a clear, labeled schematic for reference during service. What it does

• Shows component connections, wire colors, terminal IDs, and circuit paths to aid troubleshooting
• Helps locate problematic circuits when controls, motors, or heaters won't operate as expected
• Clarifies connector pinouts and wiring routing to prevent mis-wiring during repairs
• Useful for confirming factory wiring when replacing harnesses or control boards

• One factory wiring diagram/service schematic sheet

• Always disconnect power to the appliance before inspecting or working on wiring
• Use the diagram for reference only; verify live circuits with a multimeter if required
• Keep the diagram dry and protected; replace if illegible or damaged

Hex washer head screw for electric ranges. Secures panels, brackets, and internal components. Replace if screw is stripped, missing, or damaged.
