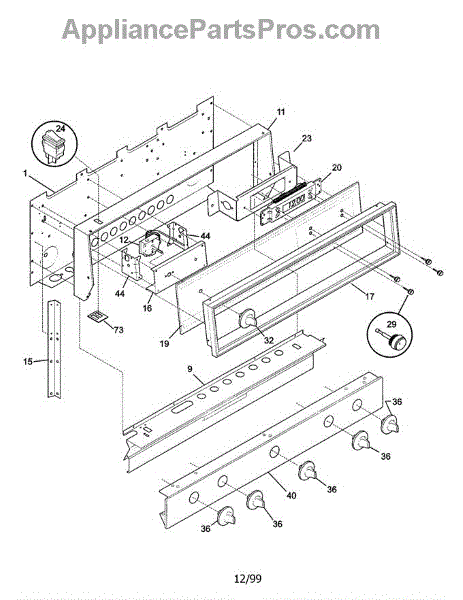

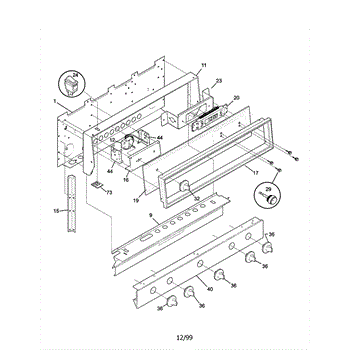

Parts for Tappan TGF605WFD2: Backguard Parts

This decorative door trim restores the finished look around a range or oven door and hides gaps or mounting hardware for a clean appearance. It's a direct-fit replacement that helps maintain your appliance's original styling. What it does:

• Covers and protects the edge of the oven/range door for a finished appearance
• Hides exposed screws, gaps, or worn factory edges
• Helps prevent dirt buildup around the door perimeter
• Useful when original trim is cracked, dented, or missing

• One decorative door trim

• Remove power to the appliance and allow surfaces to cool before beginning
• Installation typically requires removing the door or outer panel to access fasteners
• Keep all screws and mounting clips to reinstall the trim securely

This control knob is the user interface dial that lets you select settings on your range or cooktop, restoring simple, reliable control of heat and oven functions. It's a direct-fit replacement when the original knob is cracked, loose, or missing. What it does:

• Replaces a worn, cracked, or missing control knob so you can securely set temperature and function positions.
• Provides a positive grip and clear pointer for accurate selection of burners or oven modes.
• Restores tactile feedback and detent positions for safe, predictable operation.
• Helps stop unintended knob movement that can lead to incorrect settings or heat levels.

• One control knob (single knob)

• Pull the old knob straight off the valve/stem; align the new knob's splines with the stem and push until fully seated.
• If knob resists, verify correct orientation of splines—do not force to avoid damaging the valve stem.
• Disconnect power/gas or follow manufacturer safety instructions for your appliance before attempting repairs.

This thermostat mounting bracket secures the temperature control assembly inside the appliance so the thermostat stays aligned and operates reliably. It replaces a damaged or missing bracket to restore proper fit and positioning of the control. What it does:

• Provides a secure mounting point for the thermostat or temperature control sensor
• Keeps the thermostat properly aligned to ensure accurate temperature sensing
• Prevents movement or vibration that can cause intermittent temperature control issues
• Helps maintain correct spacing between the control and cabinet components

• One thermostat mounting bracket/support

• Intended for experienced DIYers; disconnect power before beginning
• Inspect mounting screws and adjacent components; replace any stripped hardware for a secure fit
• Handle plastic brackets carefully to avoid cracking; verify thermostat alignment after installation
• No wiring changes required — part mounts around existing thermostat assembly

This snap bushing is a push-in panel grommet that protects and secures wiring where harnesses pass through metal or plastic panels. It prevents chafing and helps keep wire routing neat for safer operation. What it does:

• Cushions and shields wires from sharp panel edges to reduce abrasion and shorts
• Secures wiring harnesses in place to prevent unwanted movement or snagging
• Provides a finished, vibration-resistant pass-through for electrical leads
• Commonly replaced when the original bushing is cracked, broken, or missing

• One snap bushing

• Disconnect power before servicing electrical components
• Press-fit into the panel hole until the bushing snaps into place; confirm a secure fit
• Replace if brittle, torn, or deformed; do not use a damaged bushing
• Use pliers for removal if needed; avoid forcing or enlarging the hole

This snap bushing is a push-in grommet that secures and protects wiring where it passes through sheet metal openings, helping prevent wire chafing and wear. It's a simple replacement that restores proper wire routing and protection. What it does:

• Holds wiring or harnesses in place at panel openings to prevent rubbing and abrasion
• Cushions wires against sharp edges to reduce the risk of wire damage and shorts
• Maintains correct wire routing to prevent pinching when panels are reassembled
• Common symptom: visible chafed insulation or loose wiring at an opening

• One snap bushing (quantity: 1)

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Access the panel or opening where the wiring passes through; remove any retaining screws or clips as needed
• Press the bushing into the hole until it snaps fully into place, then route the wire through the center
• Inspect surrounding wire insulation and replace or repair any damaged wiring before reassembly

Strain relief retainer secures electrical cables at the cooktop connection point. Replace if cracked, broken, or missing to protect wiring integrity.

This rivet is a small, durable fastener used to secure panels and trim on household appliances. It restores a tight, stable fit where a worn or broken rivet has allowed parts to loosen or rattle. What it does

• Fastens appliance panels, trim, or brackets where a permanent or semi-permanent hold is required
• Prevents panel movement, vibration noise, and misalignment caused by a missing or damaged rivet
• Common replacement when the original rivet is sheared, corroded, or deformed
• Matches OEM fit and function for a secure repair in the intended location

• Intended for use with the specific rivet hole size and material
• Installation typically requires a rivet tool or appropriate driving punch and should be done with care to avoid panel damage
• Disconnect power and follow appliance safety procedures before working on the unit
• If replacing multiple fasteners or damaged surrounding material, inspect adjacent parts and replace as needed

Hex washer head ,10-32 x 0.375. Ground

Cork and rubber spacer for ovens and ranges. Provides cushioning and spacing between components. Replace if worn, cracked, compressed, or missing.

Secures and organizes wires inside your appliance. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number.

Shoulder screw secures oven components with built-in spacer for proper alignment. Replace worn, missing, or stripped fasteners to restore fit.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Phillips pan head screw for securing panels and components in appliances. Replace missing, stripped, or corroded screws during repairs or maintenance.

This is a replacement mounting screw used to secure appliance panels, brackets, and components. Replacing worn or missing screws restores proper fit and reduces rattles or loose parts for safe, stable operation. What it does:

• Secures panels, brackets, trim, or small components in place
• Helps eliminate rattling, vibration, and loose or misaligned parts
• Restores proper fastening after maintenance or part replacement
• Matches the appliance's original fastener style for correct fit

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent thread or component damage

Size: 6-20 x 0.312 inch.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
