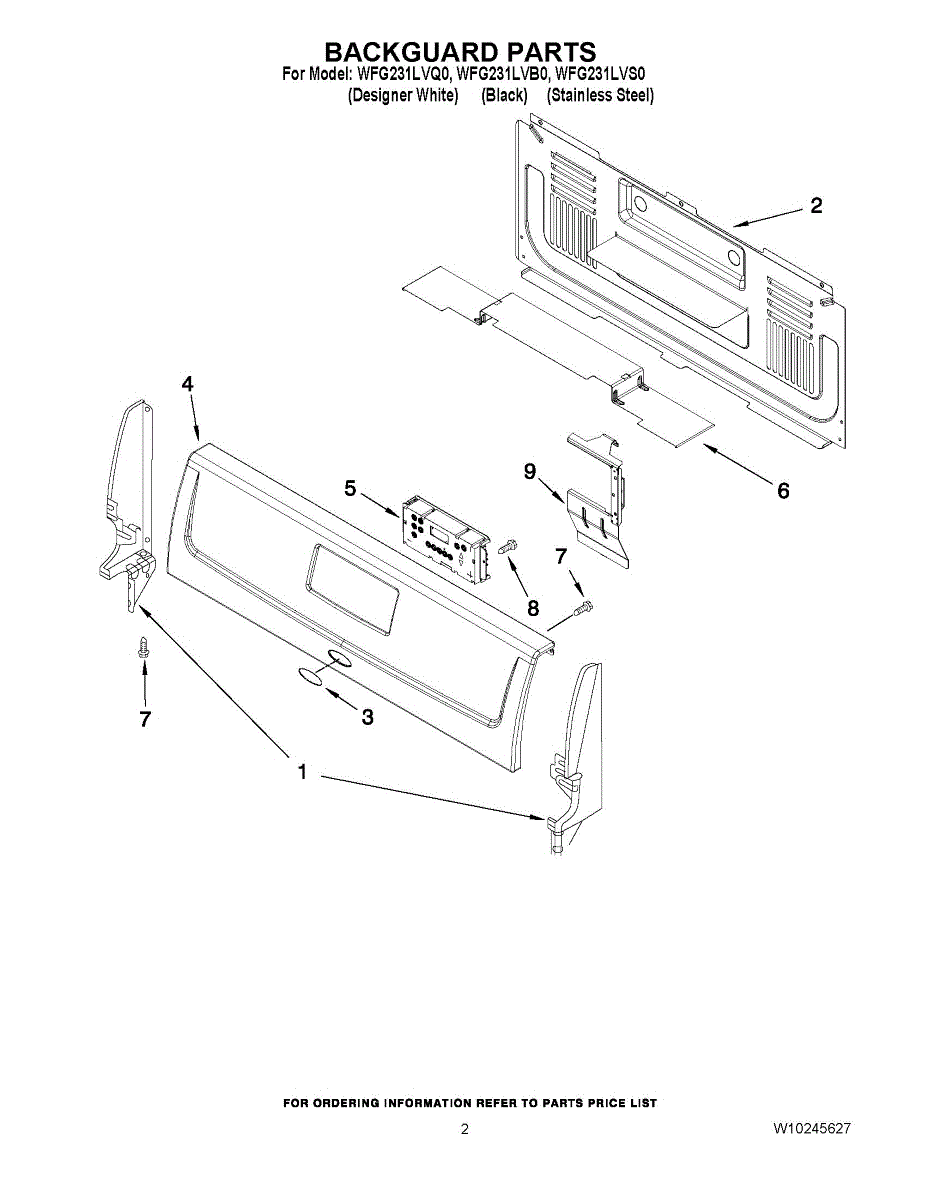

Parts for Whirlpool WFG231LVS0: 02 - Backguard Parts

Color: Black. Left hand side. For right hand use 98004633. For biscuit use 98008274. For white use 98005336.

Color: Black. Right hand side. For left hand use 98004632. For biscuit use 98008275. For white use 98005337.

This is a white plastic end cap that covers the left side of the range backsplash, providing a finished appearance and protecting the edge from damage. It snaps or fastens onto the end of the backsplash panel. Replace this end cap if it is cracked, discolored, or missing, which can leave an unfinished look and expose the raw edge of the backsplash.

Color: White. Right hand side. For left hand use 98005336. For black use 98004633. For biscuit use 98008275.

Color: Black. For biscuit use 98017734T. For white use WP98017734W.

Color: White. For biscuit use 98017734T. For black use 98017734B.

Fix oven not heating, timer issues, or unresponsive controls with this electronic control board. Manages bake, broil, and user interface. 10-minute repair.

Fix F1, F2, or F5 error codes, oven won't start, or shuts off mid-cycle. This range control board manages timing and sequences. Moderate DIY repair.

This factory fastener secures appliance panels, brackets, and internal components so everything stays aligned and quiet. Replacing a missing or damaged screw restores a tight fit and helps reduce vibration, rattles, and wear.

• Fastens metal or plastic parts to the cabinet/frame
• Maintains alignment of covers, ducts, housings, and brackets
• Replace if the head is stripped, threads are worn, or hardware is missing
• Symptoms can include loose or misaligned panels, rattling/vibration noises, or parts that won't stay secured

• Disconnect power and shut off gas/water before service.
• Match the screw to the original location and reuse existing holes/mounts.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver bit to prevent stripping the head.

This factory fastener secures appliance panels, brackets, and internal components so everything stays aligned and quiet. Replacing a missing or damaged screw restores a tight fit and helps reduce vibration, rattles, and wear.

• Fastens metal or plastic parts to the cabinet/frame
• Maintains alignment of covers, ducts, housings, and brackets
• Replace if the head is stripped, threads are worn, or hardware is missing
• Symptoms can include loose or misaligned panels, rattling/vibration noises, or parts that won't stay secured

• Disconnect power and shut off gas/water before service.
• Match the screw to the original location and reuse existing holes/mounts.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver bit to prevent stripping the head.

Right hand side. For left hand use 98018144

Left hand side. For right hand use 98018143.
