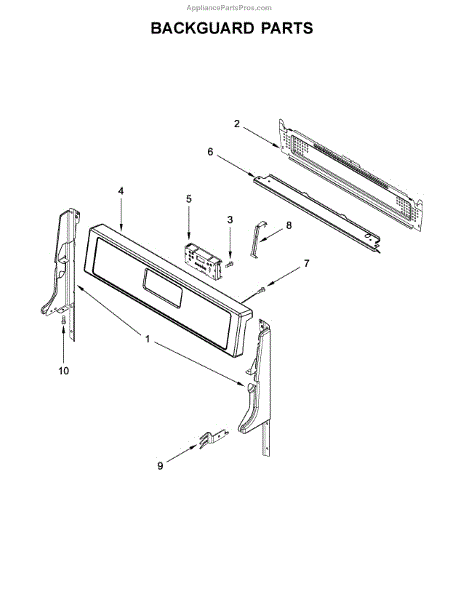

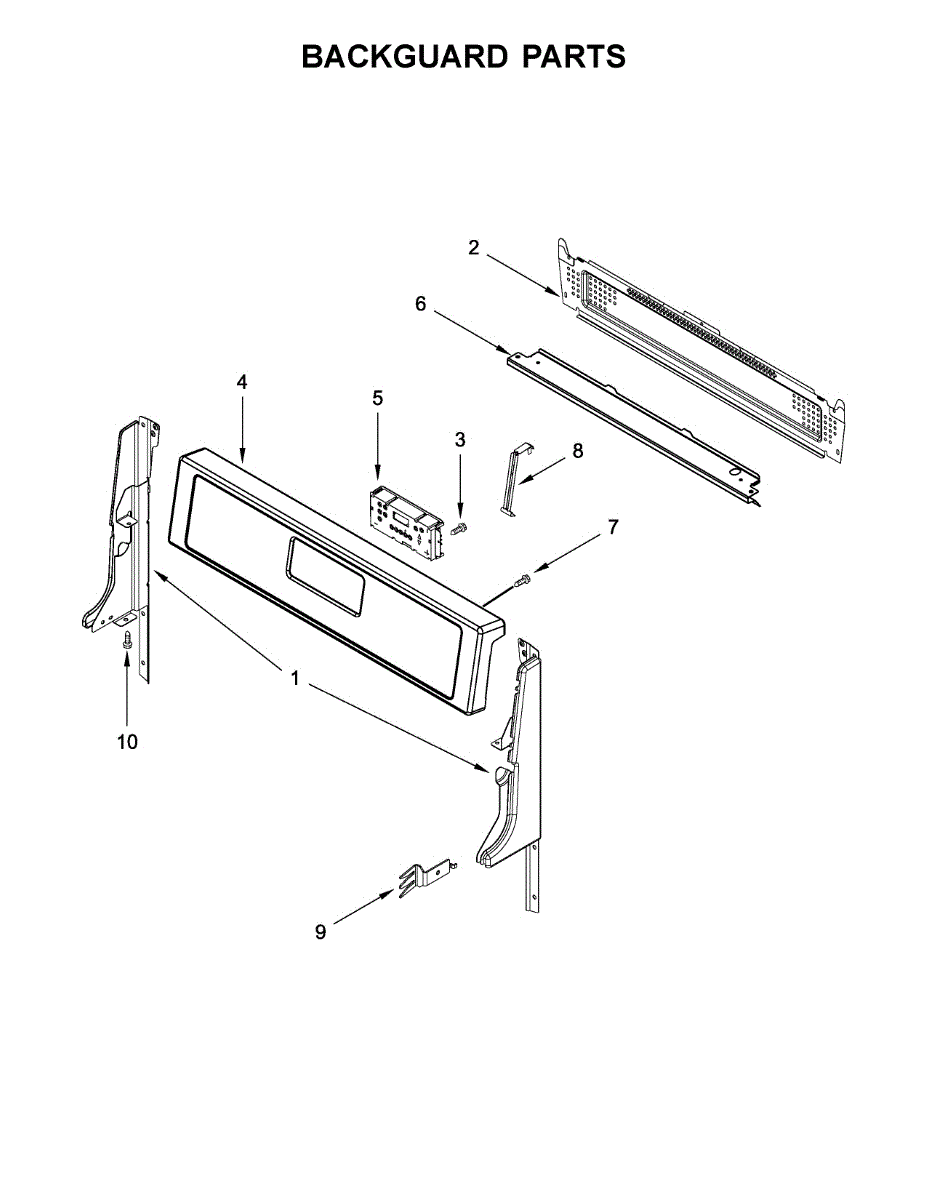

Parts for Whirlpool WFG505M0BB2: Backguard Parts

Parts for Whirlpool WFG505M0BB2: Backguard Parts

Location on Diagram
Part Description
Price & Availability
1B
By: Whirlpool
Part Number: W10873107

Color: Black

Right Hand Endcap

More
$54.18

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1
By: Whirlpool
Part Number: W10873109

Color: Black

Left Hand Endcap

More
$54.18

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1A
By: Whirlpool
Part Number: W10873441

Color: White

Left Hand Endcap



More
$54.18

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
2
By: Whirlpool
Part Number: W10588614
$45.46

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
3
Product photo
4.9 (18)
By: Whirlpool
Part Number: W11233072

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

  • Fastens panels, brackets, covers, or internal parts to the chassis or frame
  • Helps maintain alignment and support, reducing rattle, vibration, or looseness
  • Replaces missing or damaged screws that have backed out, broken, or stripped
  • Restores secure mounting after service when original hardware is lost
What's included: 1 screw Install notes:
  • Disconnect power; shut off water or gas supplies before servicing
  • Use the correct driver; start threads by hand to avoid cross-threading
  • Match length and thread to the original location; do not substitute with longer hardware
  • Tighten snugly; do not overtighten into plastic or thin metal

More
$21.46

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
4A
By: Whirlpool
Part Number: W11171357

The Control Panel is an OEM component specifically designed for Whirlpool ranges. It houses the digital display, timer, temperature settings, and function buttons that allow homeowners to operate the oven and cooktop.

The control panel plays an integral role in safely starting cooking cycles and programs through an easy-to-read interface. Homeowners rely on this panel to preheat, set temperatures, timers and monitor status lights.

Causes of a bad control panel can include cracked or broken buttons and displays from repeated use over time. Liquid damage may disrupt electronic components.

Symptoms of a bad control panel include:

  • Non-responsive or uncalibrated buttons
  • Flickering or broken LED displays
  • Inability to start desired cook cycles or programs
  • Erratic temperature readings or oven not preheating

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

More
$192.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
4
By: Whirlpool
Part Number: W11121752

Replace your range control panel if buttons are unresponsive, the display is blank, or oven settings won't change. Moderately difficult DIY repair.

More
$132.55

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
4B
By: Whirlpool
Part Number: W11097777

Replace your gas range control panel if buttons are unresponsive or the display is damaged. Restores oven and cooktop functionality. Panel only.

More
$102.38

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
5
5.0 (2)
By: Whirlpool
Part Number: W11805590
$244.61

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
5A
4.5 (6)
By: Whirlpool
Part Number: W11805589
$328.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
6
By: Whirlpool
Part Number: W10535746

Replace your gas range burner deflector if it's cracked, warped, or missing. This metal component directs heat flow and protects internal parts.

More
$18.79

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
7A
Product photo
By: Whirlpool
Part Number: WP98008544

Color: White. For black order WP98008545. For biscuit order 98008169.

More
$7.94

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
7
Product photo
4.0 (1)
By: Whirlpool
Part Number: WP98008545

Color: Black. For biscuit order 98008169. For white order WP98008544.

More
$8.94

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
8
Product photo
By: Whirlpool
Part Number: W11230932

Secures range components and panels to maintain proper alignment. Replace if your original bracket is cracked, broken, or missing to restore stability.

More
$57.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
9
By: Whirlpool
Part Number: W10535815
$11.93

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
10
Product photo
5.0 (1)
By: Whirlpool
Part Number: W10837731

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

  • Fastens brackets, panels, or internal parts at the original mounting points
  • Replaces worn or missing hardware to correct loose or misaligned components
  • Helps reduce vibration-related noise and movement
  • Matches the original thread and length specified for the application
What's included: 1 screw Install notes:
  • Disconnect power; shut off water or gas if applicable before servicing
  • Compare to the original for thread and length match before installation
  • Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
  • Reuse any original spacers/washers if present; replace if damaged

More
$7.56

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
