Parts for Kenmore 103.9177100 (1039177100, 103 9177100): Backguard Section Parts

Backguard Section
Electric Range

Parts for Kenmore 103.9177100 (1039177100, 103 9177100): Backguard Section Parts

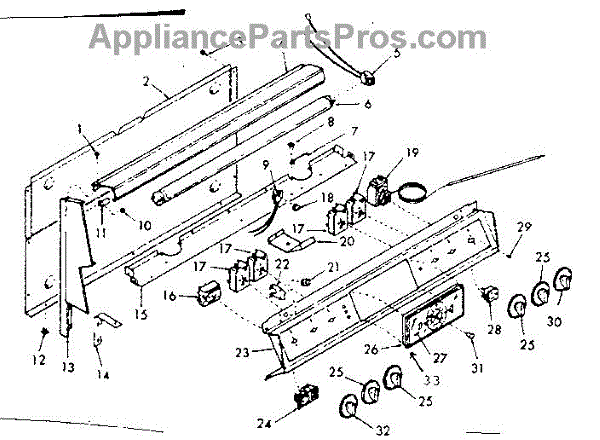

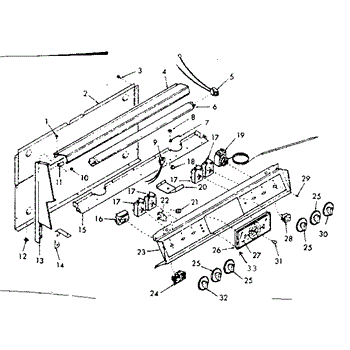

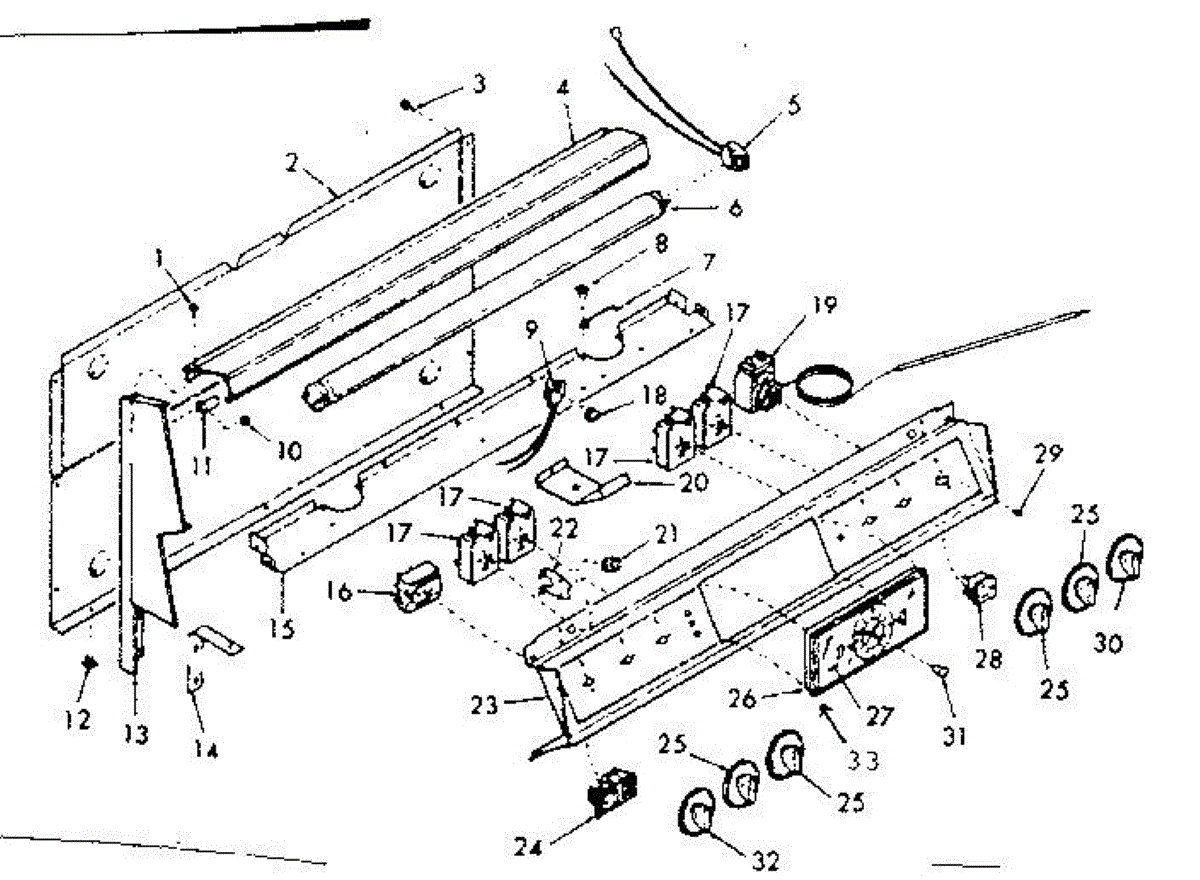

Location on Diagram
Part Description
Price & Availability
1

Screw

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2

Wire Cover

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3

Screw

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

Shade Lamp

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5A

Lamp Holder

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5

Lamp Holder

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6

Fluorescent Lamp

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7

Retainer

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8

Clip

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

9

Indicator Light

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

9A

Indicator Light

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10
Product photo

Nut

5.0 (1)
By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11

Angle

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13A

End Cap

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13

End Cap

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14

Pad

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15

Shield

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16

Selector Switch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17A
Product photo

Switch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17
Product photo

Switch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

18

Light Lens

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

19

Thermostat

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

20

Brace

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21

Bushing

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22

Bracket

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

23C

Curtain

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

23A

Curtain

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

23B

Curtain

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

23

Curtain

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

24

No Longer Available

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

25

Knob

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

26B

Motor - 60C

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

26C

Motor

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

26

Retforrepr

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

26A

Retforrepr

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

27

Glass Timer

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

28

Convenience Outlet, Without Wire Leads (1 Req.)

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

29

Screw

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

30

Thermostat Knob

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

31

Clock Knob

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

32

Selector Knob

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

33

Clock Bezel

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

33A

Clip

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI

Instructions

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI

Owners Manual

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI

Parts List

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI

Rotisserie

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI

Liner Kit

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI

Pan And Ring Kit Complete

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI

Cook Book

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
