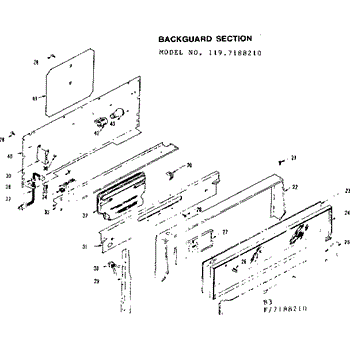

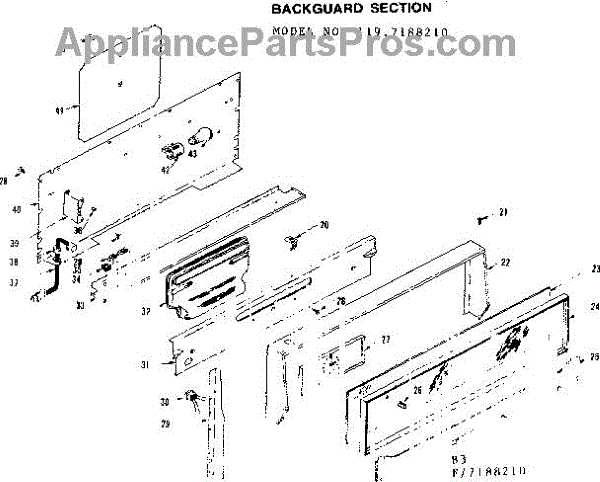

Parts for Kenmore 119.7188210 (1197188210, 119 7188210): Backguard Section Parts

This snap bushing is a push-in panel grommet that protects and secures wiring where harnesses pass through metal or plastic panels. It prevents chafing and helps keep wire routing neat for safer operation. What it does:

• Cushions and shields wires from sharp panel edges to reduce abrasion and shorts
• Secures wiring harnesses in place to prevent unwanted movement or snagging
• Provides a finished, vibration-resistant pass-through for electrical leads
• Commonly replaced when the original bushing is cracked, broken, or missing

• One snap bushing

• Disconnect power before servicing electrical components
• Press-fit into the panel hole until the bushing snaps into place; confirm a secure fit
• Replace if brittle, torn, or deformed; do not use a damaged bushing
• Use pliers for removal if needed; avoid forcing or enlarging the hole

This terminal block secures and connects incoming power wires to the appliance's internal wiring, restoring a reliable electrical connection for safe operation. Fits applications that use a 3-terminal power connection. What it does:

• Provides a durable connection point for incoming line, neutral and ground conductors
• Replaces damaged, cracked or loose terminal points that can cause intermittent power or burning smell
• Secures wiring to the heating element or control harness to maintain consistent power delivery
• Helps prevent arcing or poor contact from worn terminals when installed correctly

• One terminal block

• Always disconnect power at the breaker or unplug the appliance before servicing
• Verify wiring colors and terminal positions before removal; take a photo for reference
• Use appropriate insulated tools; tighten terminal screws securely but avoid over-torquing
• If corrosion or damaged wiring is present, replace affected wires or connectors as needed
