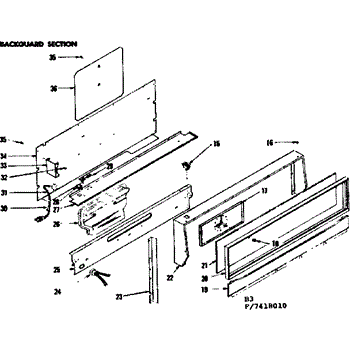

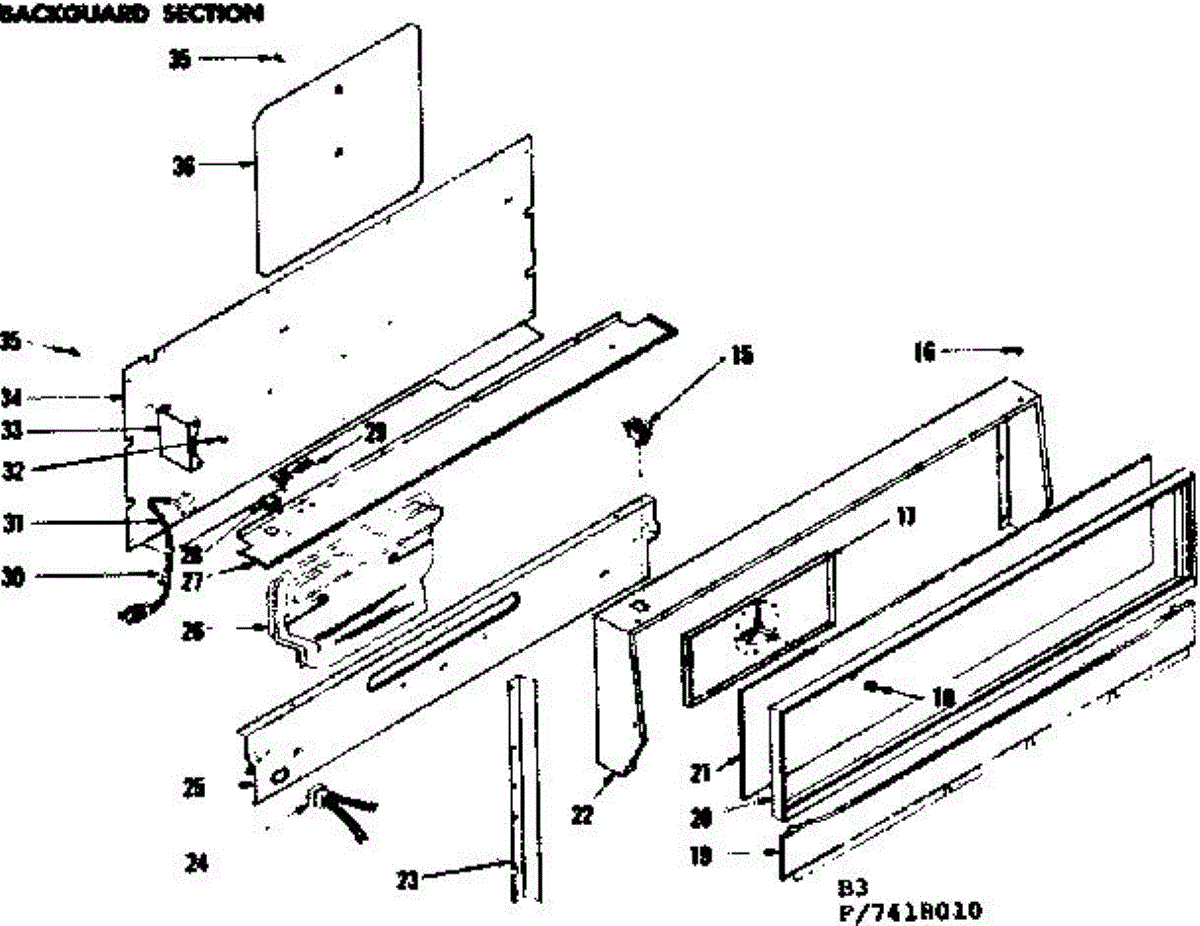

Parts for Kenmore 119.7418011 (1197418011, 119 7418011): Backguard Section Parts

This decorative door trim restores the finished look around a range or oven door and hides gaps or mounting hardware for a clean appearance. It's a direct-fit replacement that helps maintain your appliance's original styling. What it does:

• Covers and protects the edge of the oven/range door for a finished appearance
• Hides exposed screws, gaps, or worn factory edges
• Helps prevent dirt buildup around the door perimeter
• Useful when original trim is cracked, dented, or missing

• One decorative door trim

• Remove power to the appliance and allow surfaces to cool before beginning
• Installation typically requires removing the door or outer panel to access fasteners
• Keep all screws and mounting clips to reinstall the trim securely

This wall thermostat replaces a faulty room temperature control to restore reliable on/off cycling and stable indoor comfort. It provides a straightforward user interface so your heating or cooling system responds to setpoint changes. What it does:

• Senses room temperature and signals the HVAC system to turn heating or cooling on or off
• Helps correct symptoms like inconsistent room temperatures or HVAC that won't cycle at the setpoint
• Replaces a worn or unresponsive thermostat control to restore normal temperature regulation
• Works as a direct replacement part when the original thermostat is damaged or no longer controlling the system

• Turn off power to the HVAC system at the breaker before starting any work
• Compare the new thermostat's terminal layout and wire colors to the old unit before disconnecting
• Secure wiring to the correct terminals and mount the thermostat to the wall per the original bracket or new template

This wall thermostat replaces a faulty room temperature control to restore reliable on/off cycling and stable indoor comfort. It provides a straightforward user interface so your heating or cooling system responds to setpoint changes. What it does:

• Senses room temperature and signals the HVAC system to turn heating or cooling on or off
• Helps correct symptoms like inconsistent room temperatures or HVAC that won't cycle at the setpoint
• Replaces a worn or unresponsive thermostat control to restore normal temperature regulation
• Works as a direct replacement part when the original thermostat is damaged or no longer controlling the system

• Turn off power to the HVAC system at the breaker before starting any work
• Compare the new thermostat's terminal layout and wire colors to the old unit before disconnecting
• Secure wiring to the correct terminals and mount the thermostat to the wall per the original bracket or new template

This snap bushing is a push-in panel grommet that protects and secures wiring where harnesses pass through metal or plastic panels. It prevents chafing and helps keep wire routing neat for safer operation. What it does:

• Cushions and shields wires from sharp panel edges to reduce abrasion and shorts
• Secures wiring harnesses in place to prevent unwanted movement or snagging
• Provides a finished, vibration-resistant pass-through for electrical leads
• Commonly replaced when the original bushing is cracked, broken, or missing

• One snap bushing

• Disconnect power before servicing electrical components
• Press-fit into the panel hole until the bushing snaps into place; confirm a secure fit
• Replace if brittle, torn, or deformed; do not use a damaged bushing
• Use pliers for removal if needed; avoid forcing or enlarging the hole

This terminal block secures and connects incoming power wires to the appliance's internal wiring, restoring a reliable electrical connection for safe operation. Fits applications that use a 3-terminal power connection. What it does:

• Provides a durable connection point for incoming line, neutral and ground conductors
• Replaces damaged, cracked or loose terminal points that can cause intermittent power or burning smell
• Secures wiring to the heating element or control harness to maintain consistent power delivery
• Helps prevent arcing or poor contact from worn terminals when installed correctly

• One terminal block

• Always disconnect power at the breaker or unplug the appliance before servicing
• Verify wiring colors and terminal positions before removal; take a photo for reference
• Use appropriate insulated tools; tighten terminal screws securely but avoid over-torquing
• If corrosion or damaged wiring is present, replace affected wires or connectors as needed
