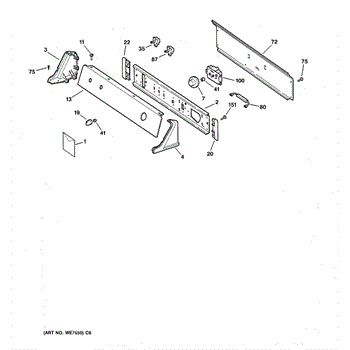

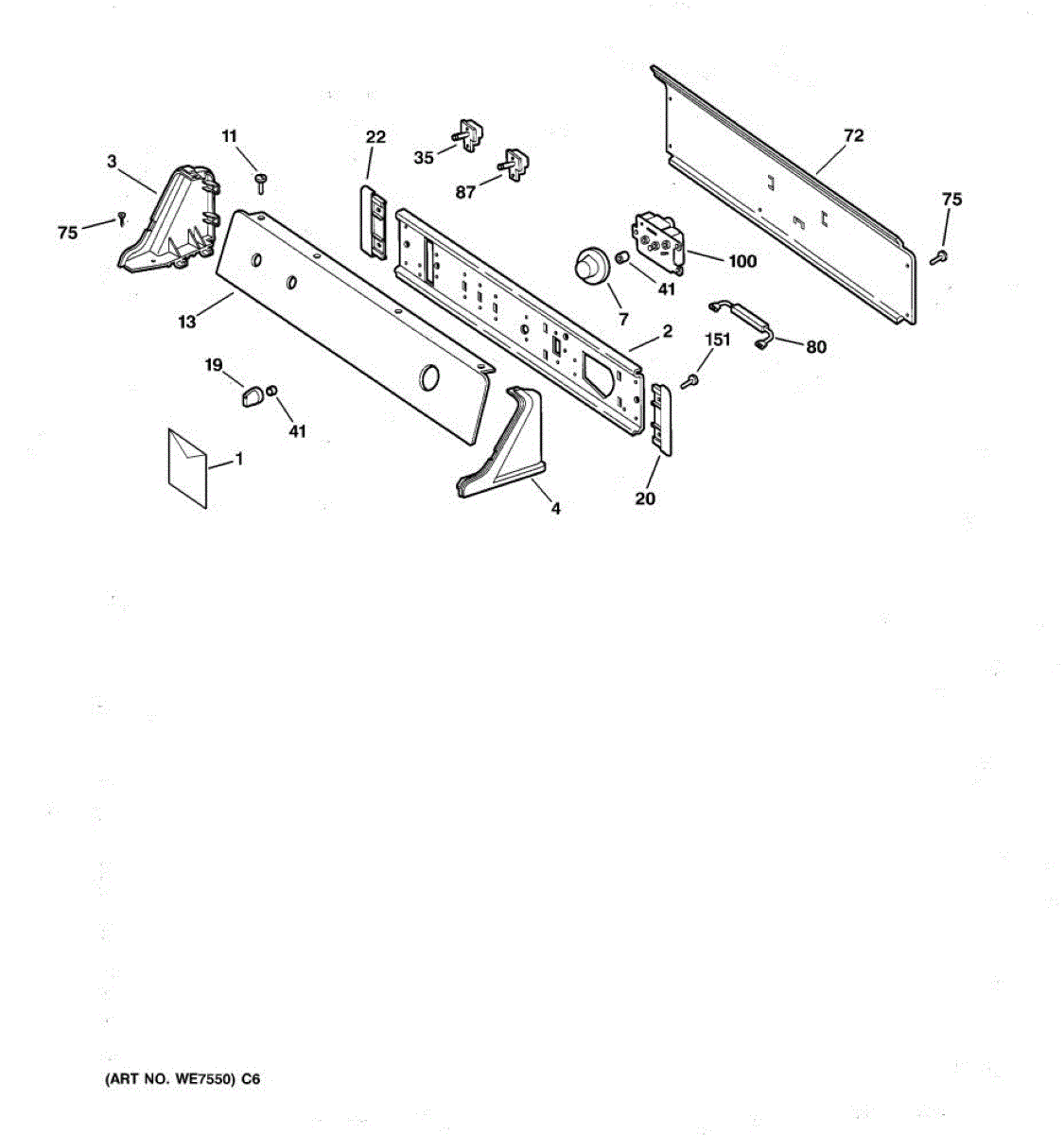

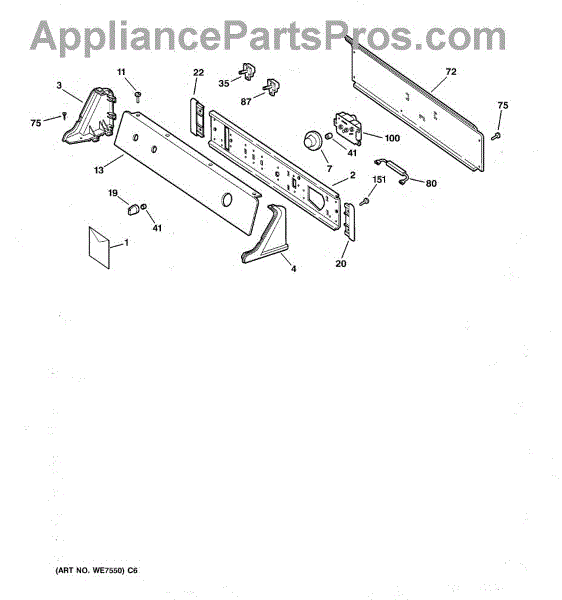

Parts for Ge DBXR453ET2AA: 01 - Backsplash Assembly Parts

Installation instructions manual for your dryer. Replace lost, damaged, or missing setup guides to ensure proper installation and safe operation.

Almond. Left hand

Almond. Right hand

Color: Almond. For white order WE1X1263. Insert included.

Size: 8-18 AB FLT 5/8.

Control knob and clip assembly for dryer or washer. Attaches to control shaft to set cycles and settings. Replace if cracked, broken, or missing.

Dryer won't start when you press the button? This rotary start switch activates your dryer cycle. Simple DIY fix in minutes with basic tools.

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement screw for securing dryer components like drum supports, panels, and housings. Needed when screws are lost, stripped, or damaged during repair.

Replacement electromechanical oven timer that restores timed-cooking control on compatible GE ranges and wall ovens. Use it to regain reliable cycle timing for bake, broil and self-clean functions. What it does:

• Advances and times oven cooking cycles so timed bake/broil and self-clean operations run as expected.
• Common symptoms: timer does not move, timed cycles do not start or finish, or oven won't complete a timed cooking cycle.
• Replaces a failed mechanical timing mechanism in the oven control console; interfaces with existing console wiring and mounting.
• Verify model compatibility using your appliance model number before ordering.

• Disconnect power to the appliance at the circuit breaker before beginning any repair.
• Label or photograph wire locations before removal to ensure correct reconnection.
• Use basic hand tools and avoid forcing connectors; handle the assembly carefully.

Includes 12 screws. Size: 8-18 ab.
