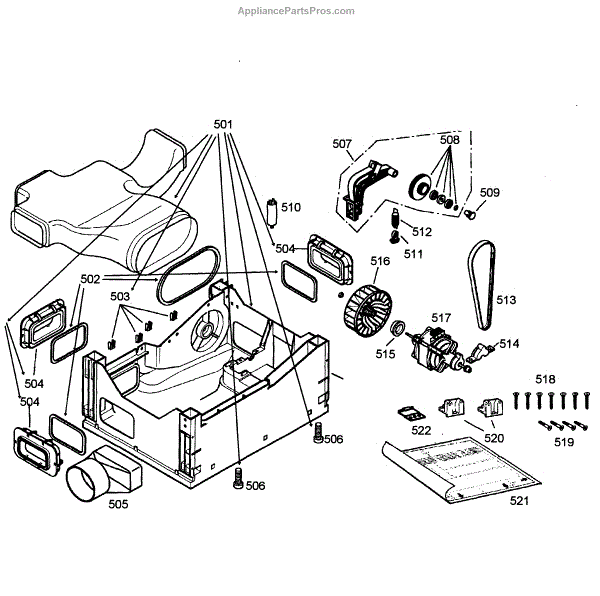

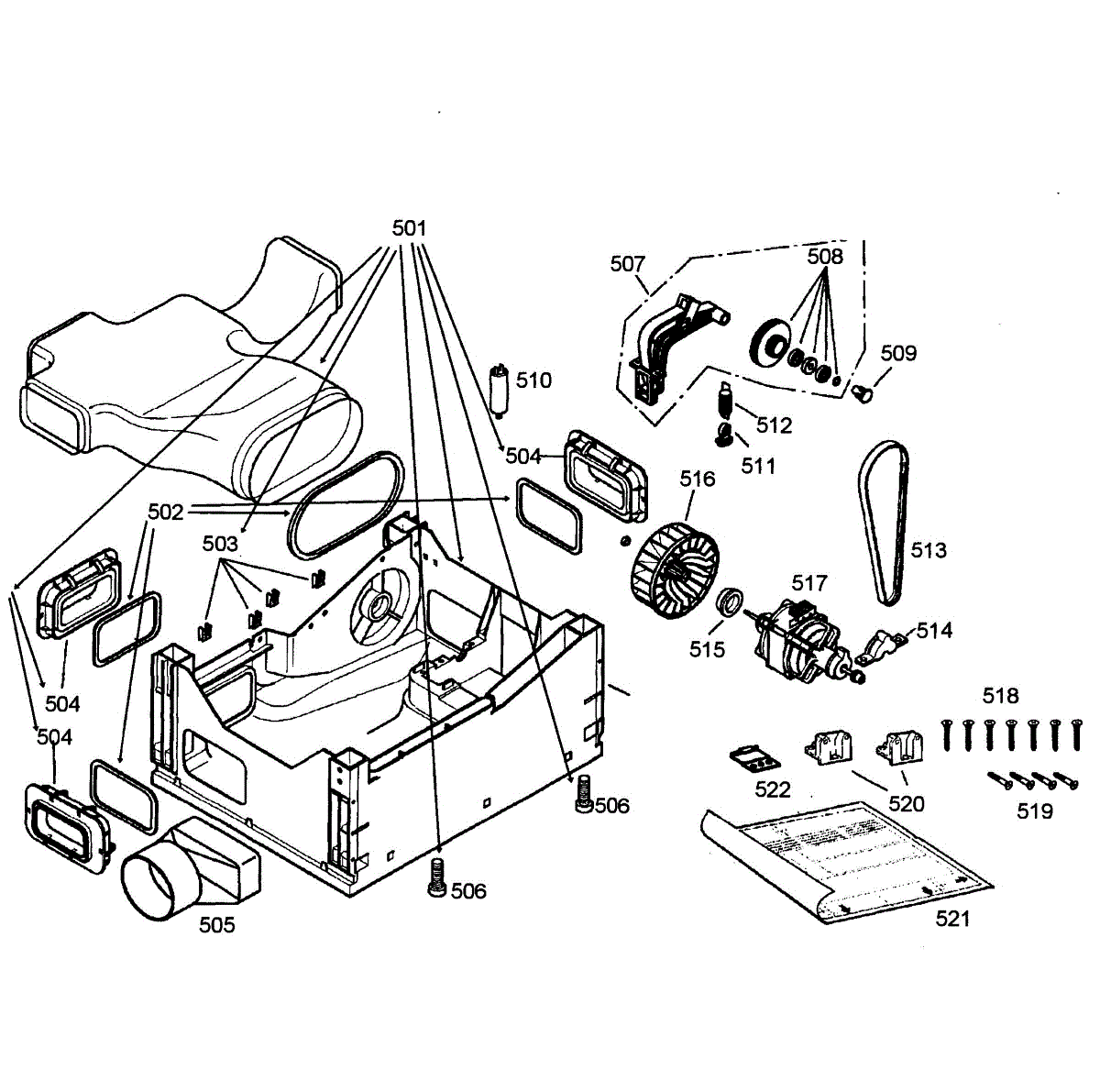

Parts for Bosch WTA3500UC/08: Base Assy Parts

A sealing kit designed to replace worn seals in the dishwasher pump area to stop leaks and restore a watertight pump assembly. Ideal when seals fail and allow water to escape around the pump. What it does:

• Replaces worn or damaged pump seals to help stop leaks beneath the machine
• Restores the pump assembly's watertight seal for proper water circulation and drainage
• Helps prevent water damage to the cabinet and flooring caused by seal failure
• Commonly used when you find water under the dishwasher, visible leaks near the pump, or damp cabinet flooring

• One sealing kit

• Disconnect power and shut off the water supply before starting any repair
• Access usually requires removing the lower access panel and may require partial pump disassembly
• Keep track of small seals and O-rings during removal; inspect related parts for wear

Connects your dryer exhaust to the vent hose for proper airflow. Replace if cracked, broken, or damaged from wear or improper installation.

Replacement leveling foot for dryers. Installs on the bottom corner to elevate and stabilize the appliance. Order if cracked, broken, or missing.

This genuine OEM replacement part is a pulley assembly for dryers. Sometimes called an idler arm, the pulley assembly keeps the dryer drive belt under tension as the belt wraps around the dryer drum. If the dryer is no longer spinning properly and is making a lot of noise, the pulley assembly may need to be replaced. Luckily this repair is a relatively simple process.To remove the old dryer pulley assembly, start by making sure the dryer is unplugged. Remove the lint screen from the top of the dryer. Remove the two Phillips screws by the lint screen opening. Depress the clips that hold the top cover down. Lift the top cover and keep it in an upright position. Disconnect the wire harness to the switch that separates the connector. Remove the screws on the front panel. Lift the panel forward and set it to the side. Next, lift the drum and locate the pulley assembly under the drum. Lift the belt off the motor pulley to remove the assembly. Set the new pulley assembly in the same position as the old one and make sure everything is aligned. Rotate the drum to make sure it rotates smoothly. reinstall the panels.This replacement part is sold individually and is compatible with Bosch, Gaggenau, and Thermador dryers.

This part is a drive pulley with bearings, also known as a dryer roller. The purpose of this component is to allow the dryer to tumble properly by providing support to the drum cylinder. The drive pulley provides the tension needed.When the drive pulley begins to go bad, the unit may begin making loud noises while running. This could include squeaking, thumping, or squealing noises. Be sure to unplug the dryer before attempting to work on this part.This part is sold individually and comes straight from the manufacturer. This particular drive pulley with bearings is compatible with dryer units that are manufactured by Bosch. This could include brands such as Thermador and Gaggenau in addition to Bosch.

Secures and supports your dryer's drive pulley for smooth belt and drum operation. Replace when worn to restore proper pulley alignment and reduce noise.

Suspension spring for dryers. Supports the drum assembly and reduces vibration during operation. Replace if spring is stretched, broken, or missing.

The Blower Belt is an OEM part for Bosch dryers. This belt efficiently transmits rotation from the motor to the blower fan, circulating heated air through the dryer drum.

Causes of a bad blower belt can include drying and cracking from heat exposure over many cycles.

Symptoms of a bad blower belt include:

• The blower fan not spinning or rotating slower than usual
• Longer dry times or an inability to fully dry clothes
• An intermittent squealing or squeaking noise from the belt

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This small cylindrical component reduces friction and provides smooth operation for moving parts within the dishwasher's mechanical systems. Replace it if you hear grinding noises during operation, racks don't slide smoothly, or if spray arms don't rotate properly.
