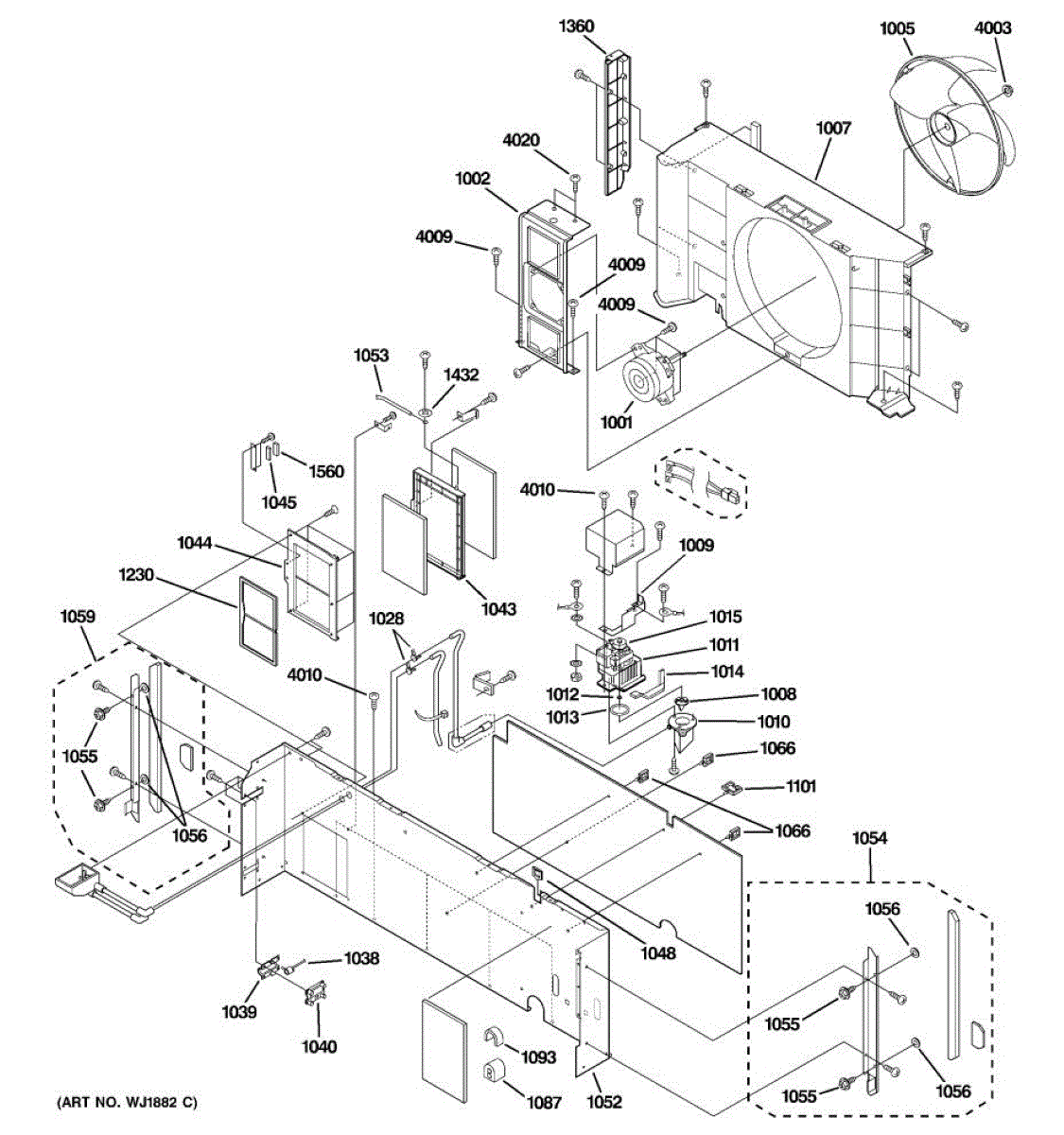

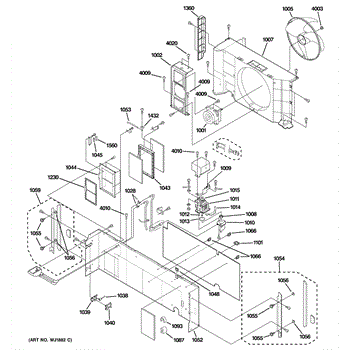

Parts for Ge AZ58H07EADM1: 02 - Base & Chassis Parts

Outdoor motor mounting bracket for air conditioners. Secures the condenser fan motor to the unit frame. Replace if bent, cracked, or corroded.

Condenser shroud housing for room air conditioners. Covers and protects the condenser unit. Replace if cracked, broken, or damaged from wear.

This pump housing cover protects and seals the appliance drain/pump assembly to help direct water flow and prevent leaks. It replaces a worn or damaged cover to restore proper drainage and reduce water under the appliance. What it does:

• Seals the pump housing so water drains through the pump instead of leaking out
• Helps maintain correct flow path for the drain system
• Common replacement for symptoms like leaks under the appliance or water pooling after cycles
• Can be needed if cover is cracked, warped, or the pump seal area is damaged

• Disconnect power and water supply before starting any repair
• Drain remaining water from the appliance and work on a dry surface
• Remove access panels and mounting hardware to reach the pump housing; keep fasteners for reassembly
• Inspect sealing surfaces and gaskets; replace any damaged seals to ensure a leak-free fit; test appliance after reassembly

This replacement fan housing secures the evaporator fan motor and blade assembly to restore proper airflow inside the freezer compartment, helping the appliance maintain consistent cooling and temperature control. What it does:

• Holds the evaporator fan motor and blade in the correct position to direct airflow across the evaporator coils
• Restores stable, quiet fan operation when a cracked or damaged housing causes vibration or rubbing
• Helps improve cooling consistency when airflow has been disrupted
• Prevents contact between the fan blade and cabinet that can cause noise or motor strain

• 1 fan housing

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels or the evaporator cover; keep fasteners organized
• Inspect the fan blade and motor during install; replace any damaged components to prevent repeat failure
• Do not overtighten mounting screws; ensure the fan spins freely after installation

Fan housing cover for room air conditioners. Protects internal fan components. Replace if cracked, broken, or missing to restore proper airflow.

A replacement rubber O-ring that seals connections to help prevent water or air leaks and restore proper sealing performance. Use this small, flexible gasket where a worn O-ring is allowing drips or loss of pressure. What it does:

• Forms a watertight/airtight seal between joined parts to stop leaks
• Prevents water from dripping at hose, valve, or fitting connections
• Restores reliable sealing when an original O-ring is cracked, flattened, or missing
• Helps maintain pressure and proper flow by eliminating gaps

• Inspect mating surfaces and replace the O-ring only when the exact size and material match the original
• Lightly coat with food-safe silicone or the manufacturer-recommended lubricant
• Ensure the O-ring seats evenly in its groove before reassembling; avoid twisting or pinching
• Disconnect power and shut off water supply before replacing parts; follow all appliance-specific safety instructions

Rubber washer for air conditioner unit assembly. Installs between components to create seal and reduce vibration. Replace if cracked, worn, or missing.

This wire fixing band is a small retainer clamp that secures wiring harnesses and individual wires to appliance chassis to prevent rubbing, pinching, or accidental disconnection. It helps protect wiring from damage and reduces electrical faults. What it does:

• Holds wiring harnesses and loose wires in place to prevent contact with hot or moving parts
• Reduces wear from vibration and movement that can cause frayed insulation or shorts
• Helps maintain safe routing of wires to avoid pinch points and strain on connectors
• Commonly used where a simple clipped band or strap is needed to fasten wires to sheet metal

• Inspect surrounding wiring and connectors before installation; replace damaged wires or insulation
• Secure the band to the designated chassis hole or stud without over-tightening to avoid crushing wires
• Disconnect power before accessing wiring and follow all appliance safety procedures

This is a D-shaped air filter designed for a room air conditioner. It captures dust and debris from incoming air before it passes through the evaporator coils, helping maintain efficient cooling and airflow. Replace this filter if it is torn, clogged beyond cleaning, or warped, which can cause reduced cooling performance or musty odors from the unit.

Secures and shields the condenser assembly in room air conditioners. Replace if your original plate is cracked, damaged, or missing to restore stability.

Replace the special mounting nut for your room air conditioner. Secures components and panels. Order a new nut if the original is stripped or missing.

Special mounting screw for air conditioner assembly. Replace if screw is stripped, missing, or damaged during maintenance or installation work.

Special screw for air conditioner assembly. Replaces lost, stripped, or damaged screws during installation or repair. Secures components properly.
