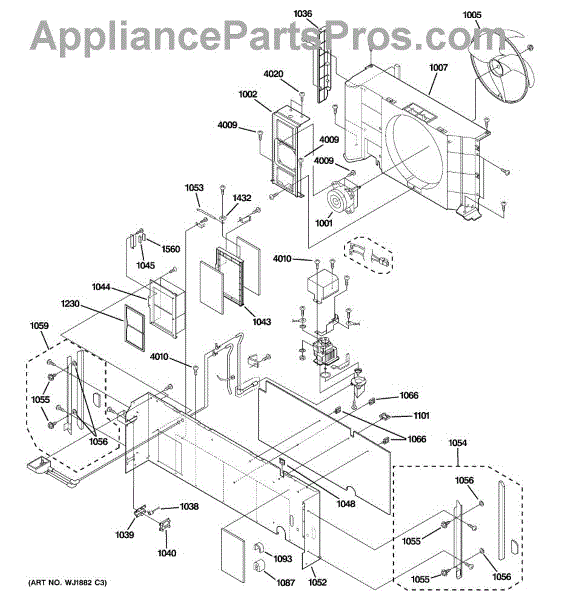

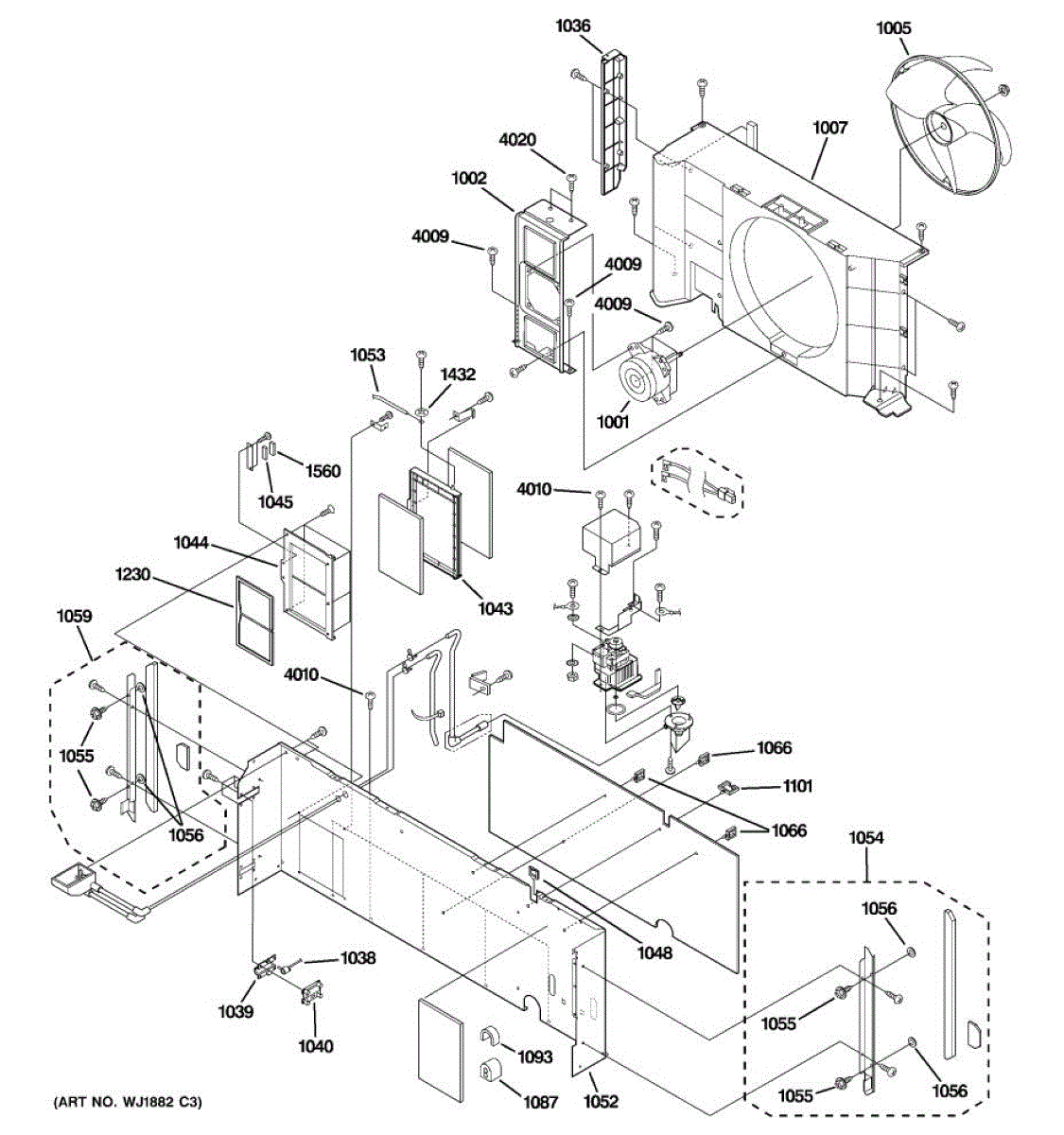

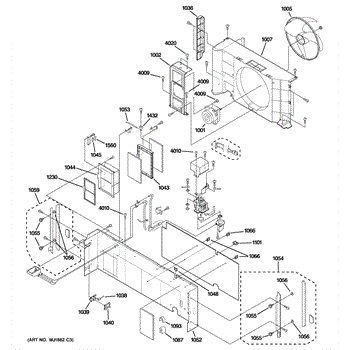

Parts for Ge AZ58H12EACM1: 02 - Base & Chassis Parts

Condenser shroud housing for room air conditioners. Covers and protects the condenser unit. Replace if cracked, broken, or damaged from wear.

Secures and shields the condenser assembly in room air conditioners. Replace if your original plate is cracked, damaged, or missing to restore stability.

This bulkhead is the replacement housing piece that supports and aligns internal rotating parts and helps direct airflow in the appliance. Replacing a worn or damaged bulkhead restores proper drum alignment and reduces rubbing or air leaks. What it does:

• Supports and locates the drum/rotating assembly to maintain proper alignment
• Provides a mounting surface and pathway for airflow inside the appliance
• Prevents rubbing and excess vibration caused by damaged or warped housings
• Helps eliminate symptoms such as squealing, rubbing noises, uneven spinning, or reduced airflow

• Disconnect power and gas before beginning service
• Follow the appliance service manual for disassembly and reassembly steps
• Inspect adjacent bearings, seals, and fasteners; replace if worn to prevent repeat failure
• Use proper tools and take care not to damage sealing surfaces or wiring during installation

Rubber washer for air conditioner unit assembly. Installs between components to create seal and reduce vibration. Replace if cracked, worn, or missing.

This wire fixing band is a small retainer clamp that secures wiring harnesses and individual wires to appliance chassis to prevent rubbing, pinching, or accidental disconnection. It helps protect wiring from damage and reduces electrical faults. What it does:

• Holds wiring harnesses and loose wires in place to prevent contact with hot or moving parts
• Reduces wear from vibration and movement that can cause frayed insulation or shorts
• Helps maintain safe routing of wires to avoid pinch points and strain on connectors
• Commonly used where a simple clipped band or strap is needed to fasten wires to sheet metal

• Inspect surrounding wiring and connectors before installation; replace damaged wires or insulation
• Secure the band to the designated chassis hole or stud without over-tightening to avoid crushing wires
• Disconnect power before accessing wiring and follow all appliance safety procedures

This is a D-shaped air filter designed for a room air conditioner. It captures dust and debris from incoming air before it passes through the evaporator coils, helping maintain efficient cooling and airflow. Replace this filter if it is torn, clogged beyond cleaning, or warped, which can cause reduced cooling performance or musty odors from the unit.

Special mounting screw for air conditioner assembly. Replace if screw is stripped, missing, or damaged during maintenance or installation work.
