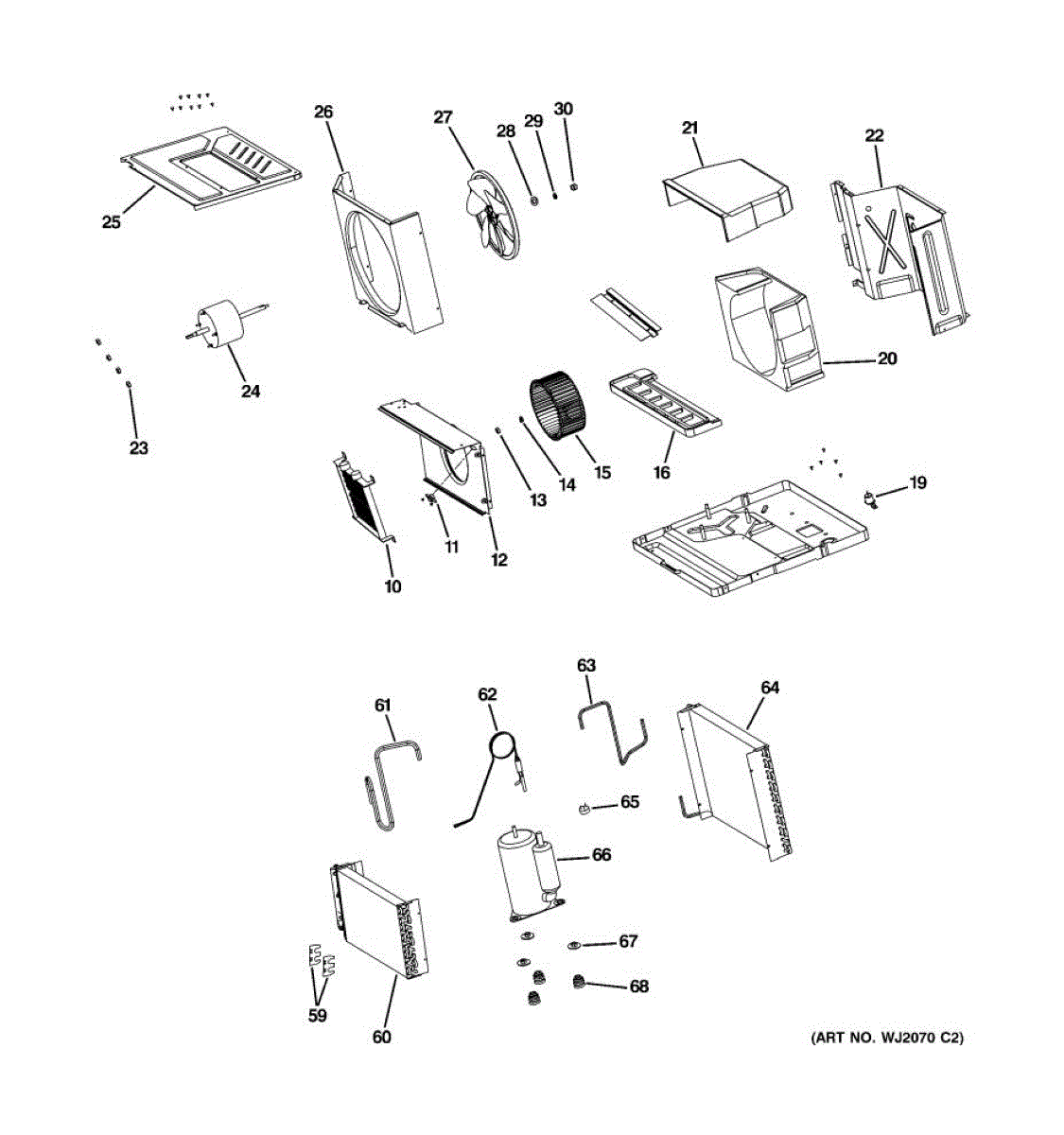

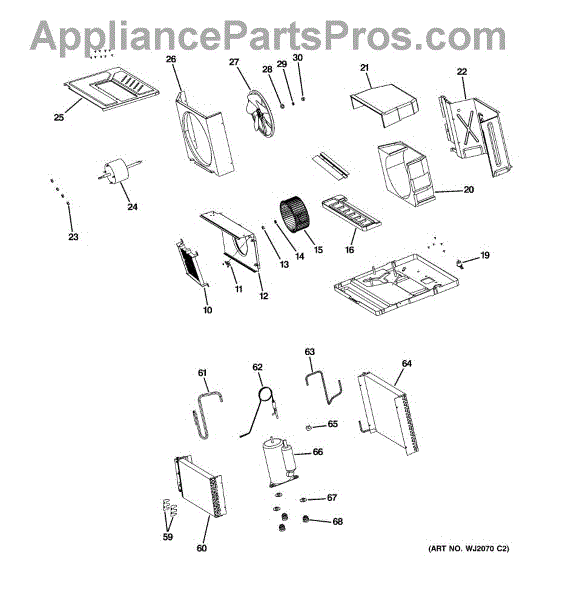

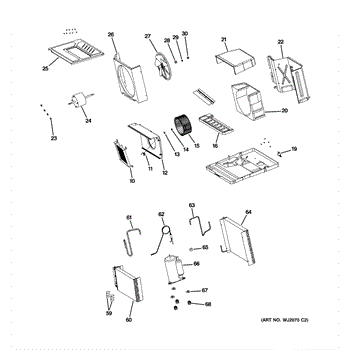

Parts for Ge AEE12DQW1: 03 - Base Pan & Unit Parts

This axial flow fan circulates air inside the appliance to help cool components and maintain proper ventilation. It replaces a worn or damaged blower wheel to restore airflow and reduce overheating risk. What it does:

• Moves air across coils or internal components to support cooling and ventilation.
• Helps prevent overheating and supports consistent appliance performance.
• Can reduce unusual temperature-related symptoms or poor cooling/airflow.
• Fits into the appliance's blower/motor assembly to restore proper airflow.

• Disconnect power to the appliance before starting any repair.
• Handle the fan blades carefully to avoid bending or damage.
• Verify proper seating on the motor shaft and secure fasteners per the appliance's service instructions.

This flat washer provides a secure, even load distribution for a fastener on the appliance, helping maintain proper assembly and reduce loosening or wear. Use it to replace a damaged or missing washer during repairs. What it does:

• Sits under a nut or bolt to spread load and protect the appliance surface
• Helps prevent fasteners from loosening due to vibration
• Restores proper spacing and alignment for connected parts
• Commonly replaced when you see corrosion, cracking, or a loose connection

• One flat washer

• Disconnect power and turn off water supply before starting any repair
• Tighten fasteners to a snug fit—avoid over-tightening which can crush the washer
• If adjacent parts show damage or corrosion, inspect and replace as needed

This nut with attached washer is a small securing fastener used to clamp appliance parts and prevent loosening. It provides a low-profile, integrated washer bearing surface for a reliable hold. What it does:

• Secures panels, brackets, or components to prevent movement and rattling
• Maintains clamping force where an integrated washer is needed
• Helps keep electrical and mechanical connections stable
• Common symptom: loose or vibrating parts, squeaks, or components that shift during use

• One nut with attached washer

• Disconnect power and water before servicing
• Use the correct socket or wrench to avoid rounding the nut
• Tighten to snug fit — avoid overtightening which can strip threads or damage parts
• If replacing a rusted or damaged fastener, inspect mating threads and replace as needed

This sensor support is a small mounting bracket that secures an appliance sensor in the correct position for reliable readings and consistent operation. It replaces a worn or broken bracket to restore proper sensor placement. What it does:

• Holds the sensor firmly in place to help maintain accurate measurements
• Prevents sensor movement or vibration that can cause inconsistent readings
• Helps reduce false error codes related to misaligned sensors
• Restores proper sensor positioning after accidental damage or wear

• One sensor support mounting bracket

• Disconnect power to the appliance before beginning any repair
• Handle the sensor and wiring gently; avoid pulling on wires or connectors
• Ensure the sensor is seated in the bracket in the correct orientation before reassembly
• Use the existing fasteners or clips; do not overtighten plastic parts
