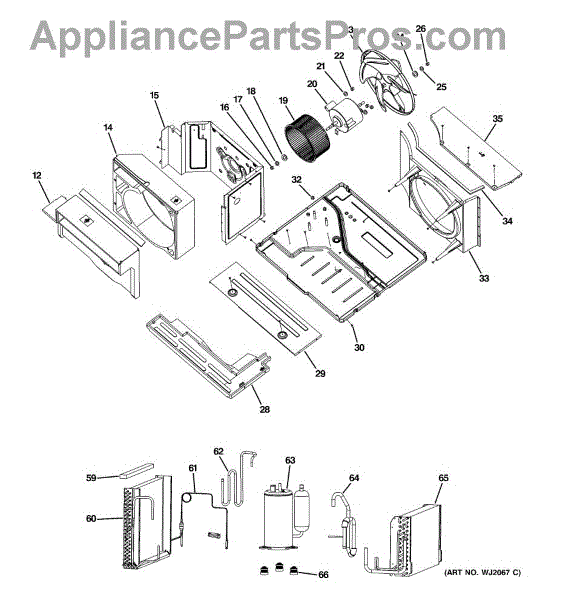

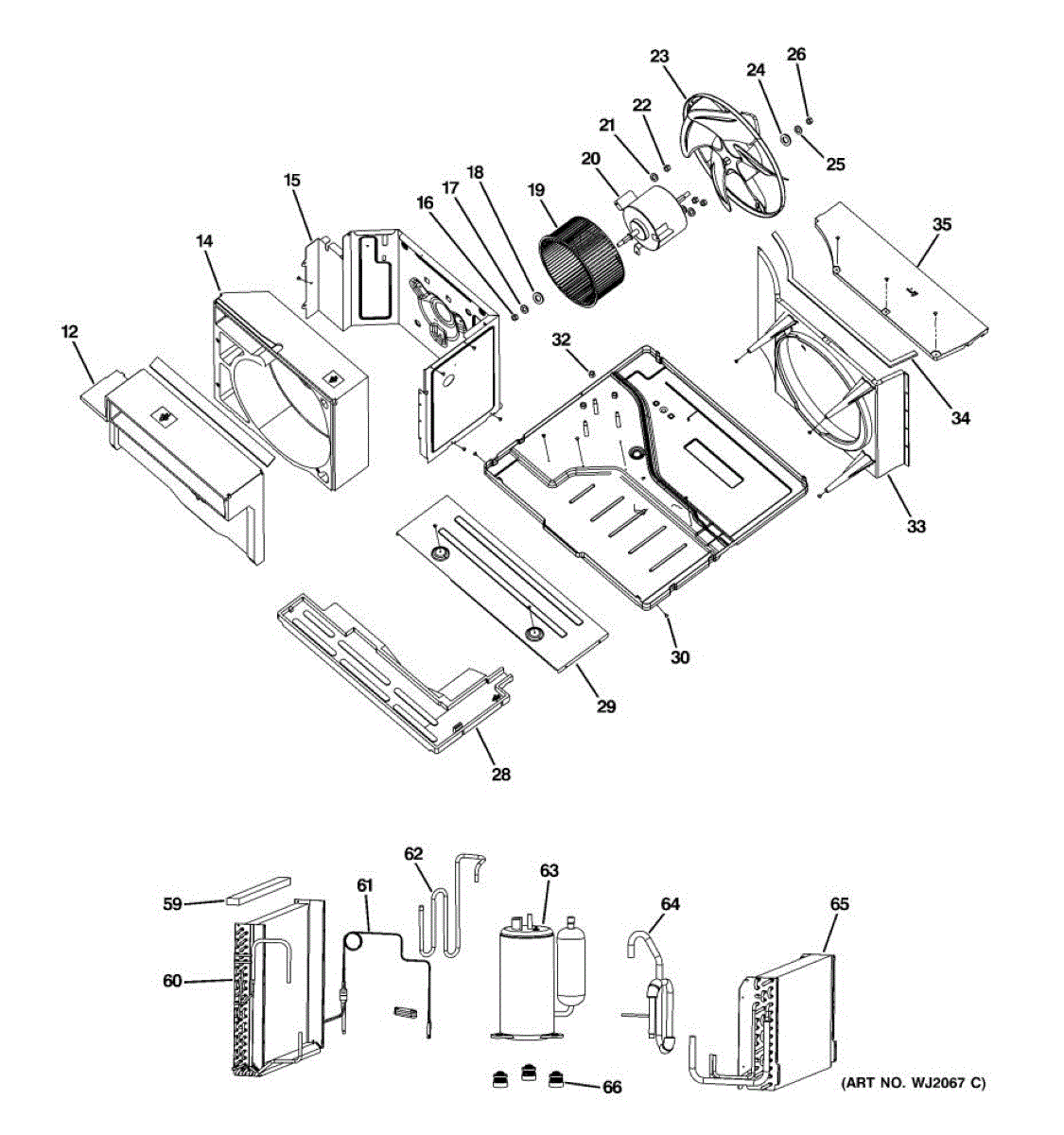

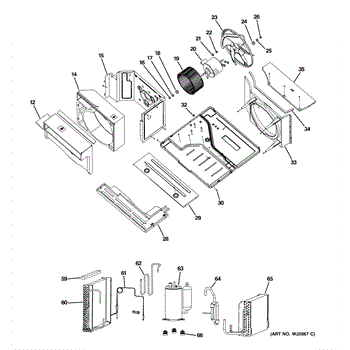

Parts for Ge AEL24DQL1: 03 - Base Pan & Unit Parts

This nut-washer secures appliance assemblies where a captive nut and flat washer are needed, helping keep fasteners tight during normal operation. It's a small replacement part that prevents loosening and maintains proper component alignment. What it does:

• Acts as a combined nut and washer to fasten components and distribute load
• Keeps threaded connections from backing off due to vibration
• Restores secure attachment when the original nut-washer is damaged, stripped, or missing
• Commonly replaced when assemblies wobble, rattle, or come loose

• One nut-washer

• Disconnect power and unplug the appliance before beginning any repair
• Use the proper screwdriver or socket to avoid rounding the fastener
• If threads are damaged, replace the mating screw or stud rather than over-tightening

A small flat washer used as a replacement fastening spacer that helps secure bolts and prevent metal-to-metal wear. Restores proper spacing and fastener tension so assemblies stay aligned and tight. What it does:

• Acts as a spacer and load-distribution surface under a bolt or nut
• Prevents fasteners from loosening and reduces metal wear at contact points
• Restores correct alignment where a missing or worn washer caused vibration or rattling
• Simple, durable replacement for worn or corroded washers in mechanical assemblies

• Disconnect power before servicing electrical appliances to avoid shock
• Use appropriate hand tools; replace with the same style and thickness for correct fit
• Inspect mating fasteners and surfaces; replace any damaged hardware

This 10 mm-diameter gasket provides a precise seal to prevent leaks and maintain proper operation of the appliance connection where it installs. Durable construction helps restore a tight, reliable seal. What it does:

• Creates a watertight/airtight seal at the mating joint to prevent leaks
• Helps maintain proper pressure and function of the connected component
• Replaces worn, cracked or flattened seals that can cause drips or loss of performance
• Restores reliable sealing to reduce cycling or moisture-related issues

• Disconnect power and shut off water supply before starting any repair
• Inspect mating surfaces and clean away residue to ensure a proper seal
• Replace the old gasket fully; do not stretch excessively when installing
• After installation, restore power/water and check the connection for leaks

This evaporator fan motor circulates cold air through the freezer and refrigerator compartments to help maintain even temperatures and proper cooling performance. Replaces a worn or noisy motor to restore airflow. What it does:

• Spins the evaporator fan blade to move cold air across the evaporator coils and into the compartments
• Commonly used when cooling is uneven or the fridge/freezer is warmer than expected
• Can resolve loud buzzing, grinding, or no-airflow symptoms when motor is failed
• Works with the existing fan blade and mounting hardware when compatible

• One evaporator fan motor

• Disconnect power to the appliance before servicing to avoid electrical shock
• Access may require removing interior panels or the evaporator cover; keep fasteners for reassembly
• Handle the motor and connector carefully to avoid damaging the wiring harness
• Fully defrost and dry the area before installing the replacement

This spring washer provides resilient tension to help keep screws and bolts from loosening on appliance assemblies. It's a simple replacement part that restores proper fastener tension and helps maintain secure connections. What it does:

• Applies spring force around a fastener to resist vibration-related loosening
• Commonly used on panels, brackets, and components that see movement or vibration
• Can reduce rattling and intermittent connection issues caused by loose hardware
• Works with 6 mm-diameter fasteners where a small lock-style washer is required

• Disconnect power and unplug the appliance before servicing
• Use the correct 6 mm fastener and proper orientation when reinstalling
• Tighten hardware to the OEM's recommended torque if available; avoid overtightening
• If other fasteners or parts are damaged, replace them to ensure a secure repair

This nut with attached washer is a small securing fastener used to clamp appliance parts and prevent loosening. It provides a low-profile, integrated washer bearing surface for a reliable hold. What it does:

• Secures panels, brackets, or components to prevent movement and rattling
• Maintains clamping force where an integrated washer is needed
• Helps keep electrical and mechanical connections stable
• Common symptom: loose or vibrating parts, squeaks, or components that shift during use

• One nut with attached washer

• Disconnect power and water before servicing
• Use the correct socket or wrench to avoid rounding the nut
• Tighten to snug fit — avoid overtightening which can strip threads or damage parts
• If replacing a rusted or damaged fastener, inspect mating threads and replace as needed

A small mounting nut used to secure components and panels on compatible appliances. Replaces a loose or missing nut to restore stable, safe fastening and reduce rattling or wobble. What it does:

• Secures panels, brackets, or assemblies to the appliance frame
• Prevents fasteners from backing out during normal operation
• Helps stop rattling, vibration noise, and loose-fitting parts
• Restores proper alignment for attached components

• Disconnect power and water before beginning any repair
• Match threads and size before installation; hand-start the nut to avoid cross-threading
• Tighten securely with the correct socket or wrench, but do not overtighten
• If the original fastener was damaged, replace the mating bolt/stud as needed

This axial flow fan moves air through the appliance to help cool internal components and support proper airflow. Replacing a worn or damaged fan restores quiet operation and helps prevent overheating-related issues. What it does:

• Circulates air across internal components or heat exchangers to maintain proper operating temperatures
• Helps prevent overheating of electronics, motors, or heating elements
• Reduces abnormal noise caused by worn or imbalanced fan blades or bearings
• Supports consistent airflow for reliable appliance performance

• One axial flow fan assembly

• Disconnect power to the appliance before starting any repair
• Handle the fan blades carefully to avoid damage; align properly during installation
• Verify secure mounting and electrical connections before restoring power
• Test appliance operation after installation and observe for proper airflow and quiet operation

This 8 mm diameter gasket creates a reliable seal in appliance assemblies to help prevent leaks and loss of pressure or airflow. It's a small replacement part that restores proper sealing where a worn gasket is causing issues. What it does:

• Seals joints and connections to help prevent water or air leaks
• Restores tight fit where a cracked, brittle, or flattened gasket allows seepage
• Reduces vibration noise from loose or poorly sealed parts
• Helps maintain proper operation of the sealed compartment or fluid path

• One 8 mm diameter gasket

• Disconnect power and water supply (when applicable) before servicing the appliance
• Remove old gasket and thoroughly clean mating surfaces before installing the new gasket
• Ensure the gasket is fully seated and aligned along the entire contact surface for an effective seal

A small circular rubber gasket designed to provide a reliable seal where a 8 mm diameter gasket is specified. Helps prevent air, moisture, or dust from passing through a joint or opening in the appliance. What it does:

• Creates a tight seal around shafts, openings, or mating surfaces to reduce leaks and drafts
• Cushions and protects components from vibration and wear
• Helps maintain correct airflow or pressure paths inside the appliance
• Common replacement when a worn or cracked seal causes unwanted noise, moisture, or air loss

• One 8 mm diameter gasket

• Inspect mating surfaces and clean thoroughly before installing the new gasket
• Replace only with the exact gasket size specified for your appliance to ensure proper sealing
• If adhesive or a retainer is used, follow the appliance manufacturer's instructions for secure attachment
• Disconnect power or follow appliance safety procedures before servicing

This M8 nut secures components to an M8 stud or bolt, restoring a firm mechanical connection. Use it to replace a missing, stripped, or loose fastener so panels and brackets stay properly attached. What it does:

• Threads onto an M8 bolt or stud to lock parts together.
• Prevents components from working loose due to vibration.
• Commonly used on brackets, mounts and assemblies that require an M8 fastener.
• Replacing a worn or missing nut can stop rattling, movement, or misalignment.

• Disconnect power and follow appliance safety procedures before servicing.
• Use the correct sized wrench or socket to avoid rounding the nut.
• Tighten to the manufacturer's recommended torque where available; do not overtighten.
• Inspect mating bolt/stud threads and replace if damaged.

This evaporator assembly is the internal refrigeration coil that circulates cold refrigerant and helps remove heat from the freezer compartment. It's a direct-replacement service part used when the evaporator is damaged, leaking, or severely corroded. What it does:

• Circulates refrigerant through the freezer evaporator circuit to enable heat exchange
• Supports frost-free operation by providing the cooling surface for defrost cycles
• Can be required if the refrigerator is cooling poorly or running unusually long cycles

• Disconnect power before attempting any service; follow basic electrical safety
• Replace or recover refrigerant only by a certified HVAC/R technician per local regulations
• Defrost and dry the evaporator cavity before installation; check gaskets and seals during reassembly
• Inspect related components (heater, thermostat/sensor, fan) for damage; replace as needed
