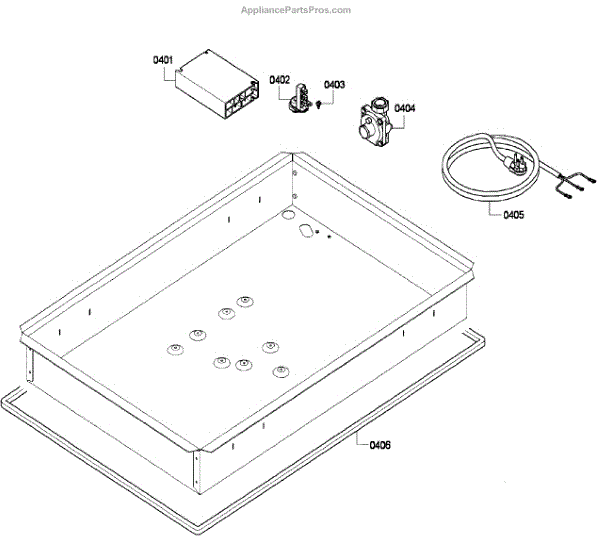

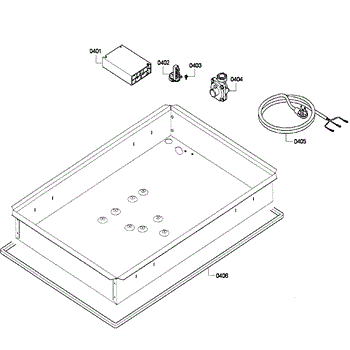

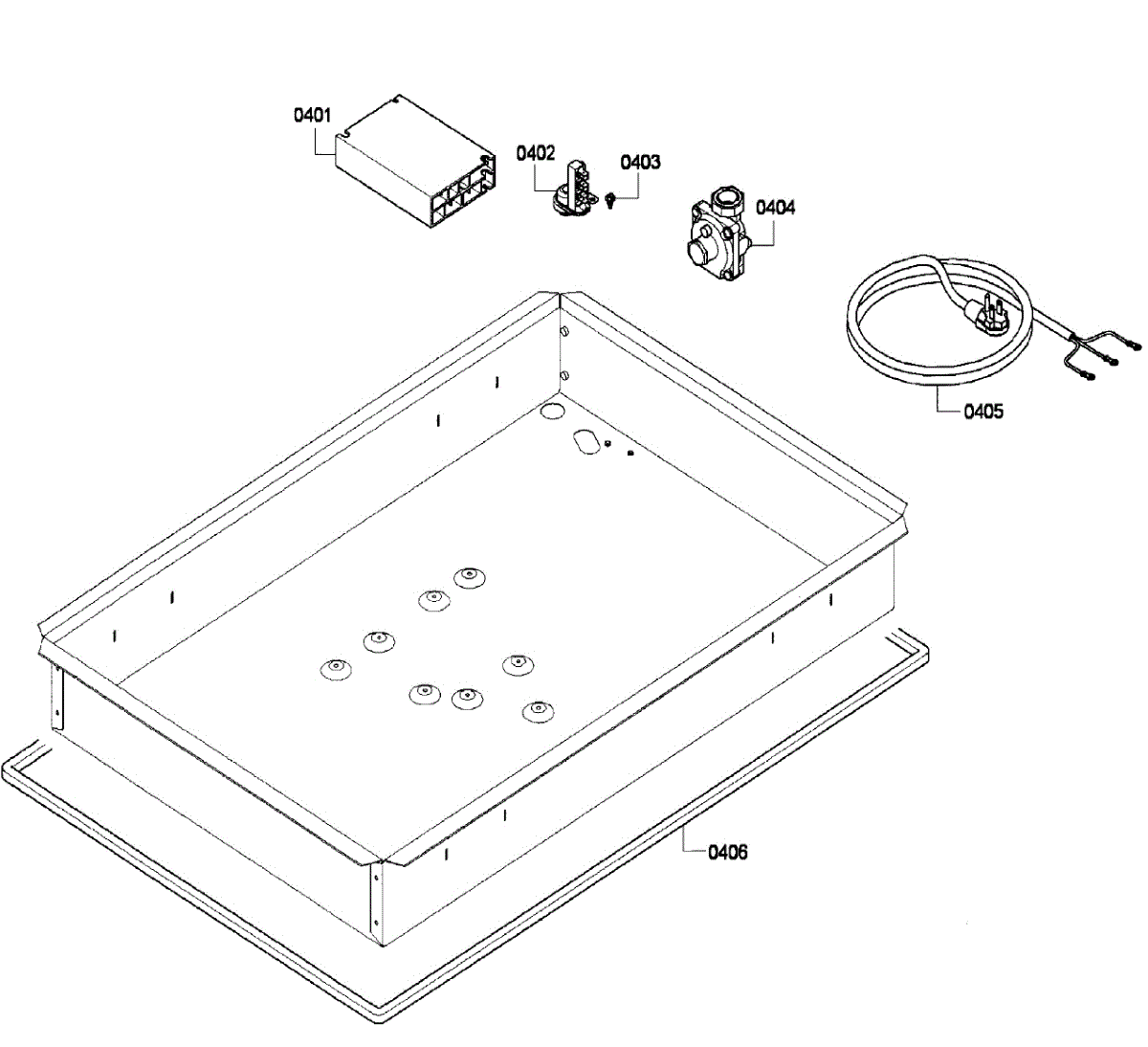

Parts for Bosch NGM5064UC/03: Base Parts

Ignition device creates the spark that lights gas burners on compatible Bosch gas ranges and cooktops. Replacing a worn or faulty ignition device restores reliable ignition and reduces burner-start failures. What it does:

• Generates the high-voltage spark used to ignite gas at the burner
• Replaces a unit that causes clicking without ignition or burners that won't light
• Supports reliable ignition timing for proper burner start-up
• Works as the primary spark source for the cooktop's gas ignition system

• Disconnect electrical power and shut off the gas supply before starting work
• Handle ceramic electrodes and connectors carefully to avoid damage
• Basic hand tools are typically required; wiring plugs into the existing harness

The Pressure Regulator is an OEM replacement part for Bosch gas cooktops. It maintains consistent burner flame levels for precise meal preparation, maximizing fuel efficiency. Even pressure safeguards safety through controlled gas flow.

Causes of a bad pressure regulator can include deteriorating diaphragm seals or valve shafts due to repetitive operations over the appliance's lifespan. Mineral scales from sediment in gas lines threaten integrity.

Symptoms of a bad pressure regulator include:

• Flames lift or flare away from burner heads unpredictably
• Burners cannot maintain set heat levels, constantly cycling
• Difficulty achieving desired flame height or cooktop shuts off
• Potential safety hazards like uncontrolled gas leakage

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This replacement cable is a direct-replacement wiring harness used to restore electrical connections for the appliance control and components. It provides the needed wiring continuity so controls and sensors can communicate reliably. What it does:

• Reestablishes a secure electrical connection between components and the main control
• Restores signal/power routing when a frayed or damaged wire causes intermittent operation
• Can resolve symptoms such as failure to power on, intermittent cycles, or related error codes tied to wiring faults
• Prevents shorting or poor contact that can lead to inconsistent appliance behavior

• Recommended for technicians or experienced DIYers; disconnect power before replacing
• Verify matching connector shapes and wire colors before installation
• Route the cable away from heat and moving parts to avoid future damage

The Tape, Foam is an OEM part for Bosch cooktops. This foam tape creates a tight seal between the cooktop surface and surrounding countertop. It helps contain spills and keeps external surfaces heat-isolated.

Causes of bad foam tape can include wear and breakdown of the adhesive over repeated exposure to cooking heat and cleaning chemicals.

Symptoms of a bad foam tape include:

• Fluids leaking down around the edges of the cooktop
• Hot surfaces outside the cooktop area that can cause burns
• Reduced heat containment impacting cooking efficiency

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Cooktop Bracket Kit is an OEM part for Bosch cooktops. This bracket and hardware kit serves to securely fasten the cooktop surface to the underlying countertop.

Causes of a bad bracket can include wear and deformation from heavy cooktop use over time, or damage to fastening screws from accidental impacts.

Symptoms of a bad bracket and fastening kit include:

• The cooktop surface becoming loose, wobbly, or unstable during use
• Gaps appearing between the cooktop and countertop edges
• Reduced heat containment and risk of burns from loose surfaces

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.
