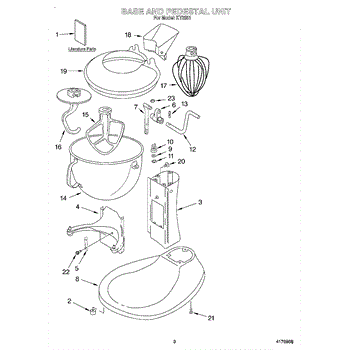

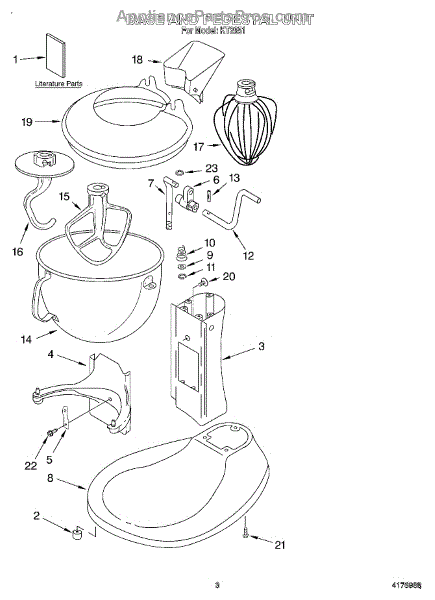

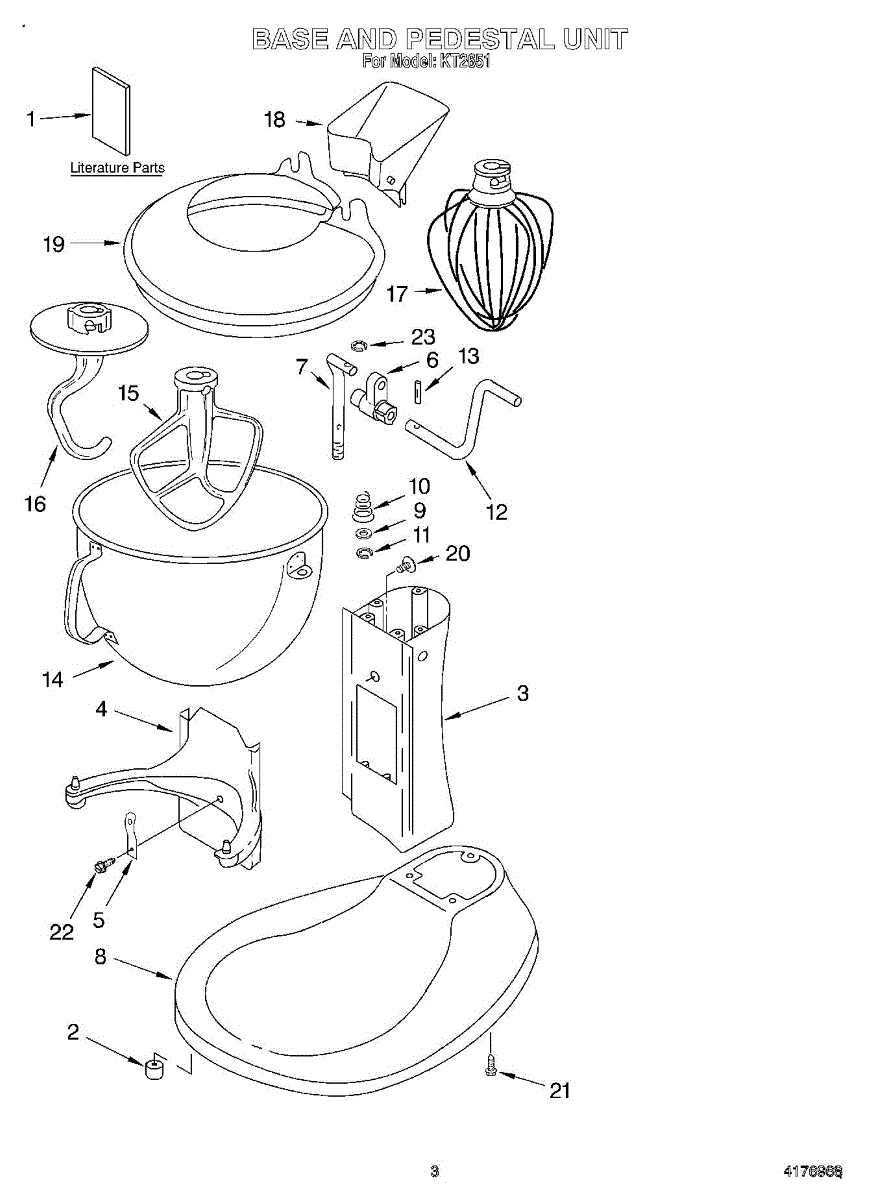

Parts for Kitchenaid KT2651: 03 - Base And Pedestal Unit, Literature Parts

The Foot Kit is an OEM part for Whirlpool stand mixers. This kit includes replacement feet that help stabilize and secure the mixer during operation, preventing it from moving or slipping on the countertop.

Causes of a bad foot kit can include wear and tear from regular use, damage from moving the mixer, or degradation of the material over time.

Symptoms of a bad foot kit include:

• The mixer moving or sliding on the countertop during use
• Visible wear, cracks, or missing feet
• Increased vibration or noise during operation
• Uneven or unstable placement of the mixer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This door trim restores the appliance's exterior appearance by replacing a damaged or missing Caviar-finish trim piece. It returns a clean, finished look and helps cover fasteners and edges for a seamless door surface. What it does

• Replaces worn, scratched, or gouged trim to improve cosmetic appearance
• Covers mounting holes and seams for a finished look
• Helps maintain proper door alignment where trim interfaces with adjacent parts
• Common symptom: visible chips, scratches, or missing trim exposing fasteners

• One door trim piece in Caviar finish

• Disconnect power to the appliance before beginning service
• Use basic hand tools; remove surrounding trim or fasteners as required for access
• Handle carefully to avoid scratching the new finish during installation
• Follow model-specific instructions for correct alignment and fastening

This Empire red touch-up paint restores the original appliance finish to cover chips, scratches, and small blemishes for a clean, uniform look. Ideal for maintaining the appliance's appearance between larger repairs or panel replacements. What it does:

• Matches the Empire Red appliance color to conceal chips and surface scratches
• Prevents small bare spots from showing and improves overall cosmetic appearance
• Helps maintain consistent color on exterior panels and trim
• Useful for spot repairs after minor impacts or wear

• Clean and dry the surface thoroughly; remove grease and loose paint before applying
• Apply in thin coats, allowing recommended dry time between coats for best results
• Test on an inconspicuous area first to confirm color match
• Follow all product label warnings; use in a well-ventilated area and keep away from heat and open flame

A white replacement bowl support that centers and stabilizes the appliance bowl or glass tray to reduce wobble and noise, helping restore smooth rotation and reliable operation. What it does:

• Centers and supports the bowl or glass tray to prevent off-center rotation and rubbing.
• Keeps the tray steady to reduce vibration and noisy operation.
• Helps the tray rotate smoothly for even heating or proper function.
• Common symptoms it can address: wobbling or off-center bowl/tray, noisy rotation, scraping or unstable tray movement.

• Disconnect power to the appliance before starting any work.
• Remove the bowl or glass tray and lift out the old support; inspect the drive hub or shaft for damage.
• Align the support over the hub/shaft and press into place until fully seated; do not force broken or warped plastic.

This small retainer clip secures the drip bowl and coil surface element so they stay properly seated on the cooktop. Replacing a worn or missing clip restores a tight, level fit and reduces wobble during use. What it does:

• Holds the drip bowl to its mounting point and helps keep the surface element seated
• Maintains alignment to reduce movement and rattling
• Helps prevent the element from tilting so cookware sits more evenly
• Common symptoms: loose or wobbly burner/bowl, bowl won't stay seated, or a cracked/missing clip

• Retainer clip only

• Disconnect power at the breaker before servicing
• Lift out the coil element and drip bowl; note clip orientation for reassembly
• Snap the new clip into place carefully—avoid over-flexing the part
• Reinstall the bowl and element and ensure the burner locks in and sits level

The Lift Arm is an OEM part for Whirlpool stand mixers. It's a part that facilitates the movement of the mixing bowl, allowing for easy attachment and removal, as well as adjustment of the bowl height during mixing.

Causes of a bad part can vary from normal wear and tear due to frequent use, improper adjustment or handling causing stress or damage to the arm, to accidental impact that may bend or break the arm.

Symptoms of a bad Lift Arm include:

• Difficulty in adjusting the bowl height, leading to uneven mixing.
• The bowl not securing properly or wobbling during operation.
• Excessive wear or damage visible on the arm, affecting its function.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This bowl and foot assembly replaces a cracked or worn support bowl used to stabilize and support the appliance's internal component, restoring proper alignment and quiet operation. Durable molded construction suits direct-replacement needs. What it does:

• Supports and centers internal components to maintain smooth rotation and balance
• Replaces damaged, cracked, or warped bowl/foot that can cause rattling or uneven operation
• Restores correct spacing to prevent contact between moving parts and the cabinet
• Matches factory fit and finish for a secure, stable installation

• Disconnect power before beginning any repair to avoid electrical hazard
• Handle with care to avoid cracking the plastic; use gentle force when seating into place
• Basic hand tools may be needed to access the mounting area; model-specific diagram for access

This replacement spring restores proper tension and return action within the original mechanism of your appliance. Replacing a fatigued or broken spring helps moving parts operate smoothly and return to position for consistent, reliable performance.

• Supplies controlled tension within the assembly
• Returns levers or linkages to their neutral position after use
• Helps maintain proper alignment and engagement of moving parts
• Common signs of failure: weak/loose feel, parts not returning, intermittent operation, rattling or squeaking

• Disconnect power before service; also shut off gas/water
• Note original routing and attachment points; take a reference photo before removal
• Use needle-nose pliers or a spring tool; avoid overstretching the new spring
• Verify smooth manual movement before reassembly and testing

This spring-style roll pin secures mating parts on a shaft or linkage. It keeps components tightly aligned so gears, levers, or hubs stay in place during operation, helping prevent looseness, slipping, and noise.

• Expands inside aligned holes to lock components together on a shaft or hub
• Helps maintain alignment and transmit torque in rotating or linkage assemblies
• Common failure signs: wobble, rattling, parts shifting out of place, or intermittent operation
• Replace if the original pin is bent, cracked, sheared, missing, or no longer holds a tight fit

• Disconnect power and work on a stable surface with the appliance cool
• Support the assembly; use a correctly sized roll-pin punch and light hammer taps to drive the old pin out
• Align holes carefully and press/tap the new pin in flush; do not enlarge the hole
• Wear eye protection and avoid striking cast or plastic parts directly

The Coated Flat Beater is an OEM replacement part for 5 and 6 Quart KitchenAid stand mixers. This flat beater is responsible for thoroughly incorporating ingredients when mixing or blending recipes.

Over time and with regular use, the nonstick coating on flat beaters can show wear through scratches or loss of the smooth finish. This decreases their ability to effectively process ingredients while mixing.

Symptoms of a worn-out flat beater include:

• Ingredients sticking to or clinging to the beater blades
• Less thorough or incomplete mixing results
• Paler or uneven color development when creaming butter/sugar

This OEM KitchenAid part is also compatible with select Kenmore and other licensed KitchenAid models sold exclusively by Sears.

This dough hook is the replacement mixing hook used to knead and fold dough in compatible countertop mixers. It restores proper dough handling so you can mix bread and pastry batters evenly without overworking the motor. What it does:

• Replaces worn or damaged dough hook used to knead, fold and mix yeast doughs and thicker batters
• Restores consistent dough development and improved ingredient incorporation
• Helps eliminate uneven mixing, excessive sticking, or torn pastry from a misshapen hook
• Fits into the mixer's attachment hub and transfers motor torque to the dough

• One dough hook

• Disconnect mixer from power and remove all bowls/attachments before installing
• Attach into the mixer's hub per the machine's user manual until it locks or seats fully
• Inspect for secure fit and test at low speed before full use
• Do not use if the hook is bent or cracked; replace to avoid damage to the mixer or poor mixing results

The KN256WW 5 Quart KitchenAid Wire Whip is an OEM part for Kitchenaid stand mixers. This wire whip is essential for incorporating air into ingredients, making it perfect for whipping cream, egg whites, and mixing light, fluffy batters.

Causes of a bad wire whip can include metal fatigue from regular use, accidental bending from improper storage, or corrosion from exposure to moisture.

Symptoms of a bad wire whip include:

• Ingredients not mixing thoroughly
• Visible bending or warping of the wires
• Difficulty attaching or detaching the whip from the mixer
• Unusual noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Pouring Shield For 5 and 6 Quart KitchenAid Lift Bowl Stand Mixer Bowls. The one piece pouring shield is attached to the mixing bowl and helps with adding ingredients without making a mess by keeping lightweight ingredients like flour from flying out of the bowl while mixing. The Pouring Shield is dishwasher safe on the top-rack and works with KitchenAid models KB26G1, KD2661, KL26M2, KL26M8, KP2671, KP26M1, KP26M8, KP26M9, KP26N9, KSM7581, KSM7586, KSM7588, KSM7589, KT2651, KV25H, 4KB25G, 4KD2661, 4KP26M1, 5KSM7580, 5KSM7581, 5KSM7586, 5KSM7590, 5KSM7591, 7KSM7586, 9KSM7990.

Pouring Shield For 5 and 6 Quart KitchenAid Lift Bowl Stand Mixer Bowls. The one piece pouring shield is attached to the mixing bowl and helps with adding ingredients without making a mess by keeping lightweight ingredients like flour from flying out of the bowl while mixing. The Pouring Shield is dishwasher safe on the top-rack and works with KitchenAid models KB26G1, KD2661, KL26M2, KL26M8, KP2671, KP26M1, KP26M8, KP26M9, KP26N9, KSM7581, KSM7586, KSM7588, KSM7589, KT2651, KV25H, 4KB25G, 4KD2661, 4KP26M1, 5KSM7580, 5KSM7581, 5KSM7586, 5KSM7590, 5KSM7591, 7KSM7586, 9KSM7990.

Replacement cam that restores proper engagement of the appliance's mechanical linkage so cycles run smoothly. Installs where the drive/shift mechanism needs a correctly timed cam to stop slipping or misalignment. What it does:

• Transfers rotary motion to the linked component so parts engage at the correct time
• Restores reliable engagement to reduce skipping, grinding, or irregular cycle behavior
• Commonly replaced if cracked, worn, or otherwise fails to engage properly
• Matches the OEM part name and fit as a direct replacement when the original cam is damaged

• Always disconnect power (and water, if applicable) before starting service
• Remove required access panels and note the original cam orientation for correct reassembly
• Inspect mating parts (shaft, clips, splines) and replace any damaged hardware before installing the new cam
• Reassemble panels and run a test cycle to ensure normal operation and correct engagement

This screw secures appliance panels, brackets, and trim so everything stays aligned and rattle-free. Replace missing, stripped, or rusted hardware to restore a solid fit and dependable operation. What it does:

• Fastens components to the cabinet/frame to maintain proper alignment
• Helps prevent vibration, rattling, and small gaps from loose hardware
• Replaces lost, damaged, or corroded screws to restore secure mounting
• Common signs include loose panels/trim, vibration noises, or shifting parts

• 1 screw

• Disconnect power; shut off gas/water if applicable before servicing
• Support the part being fastened to keep holes aligned and avoid damage
• Start threads by hand to prevent cross-threading; realign if resistance is high
• Tighten snugly—do not overtighten to avoid stripping threads or cracking plastic

This factory mounting screw secures components in place inside compatible appliances, helping maintain proper alignment and reliable operation.

• Fastens panels, brackets, or internal parts to prevent shifting and vibration
• Common fix when a panel or bracket is loose or rattling
• Resolve issues like gaps, misalignment, or buzzing from loose hardware

• Unplug power and shut off utilities before servicing
• Retain and reuse original hardware and clips where applicable
• Start threads by hand to avoid cross-threading, then tighten snugly without over-torquing

This retaining ring snaps into a groove to keep a component securely positioned on its shaft. Replacing a bent or missing ring restores proper fit and helps stop looseness, shifting, and noise from parts moving out of place.

• Locks into a machined groove to secure gears, shafts, or linkages
• Prevents axial movement that can cause wobble or separation
• Helps eliminate rattling, scraping, or intermittent operation from loose assemblies
• Direct replacement for a worn, stretched, or missing ring identified during service

• Disconnect power and allow all moving parts to stop before servicing
• Wear eye protection; retaining rings can spring free under tension
• Use proper snap-ring/retaining-ring pliers and avoid over-expanding the ring
• Ensure the ring is fully seated in the groove with correct orientation and retention
