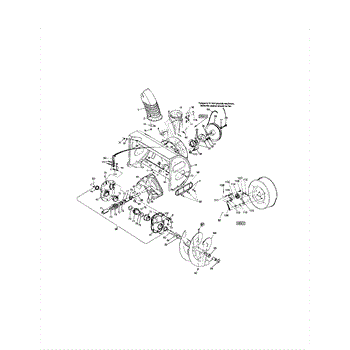

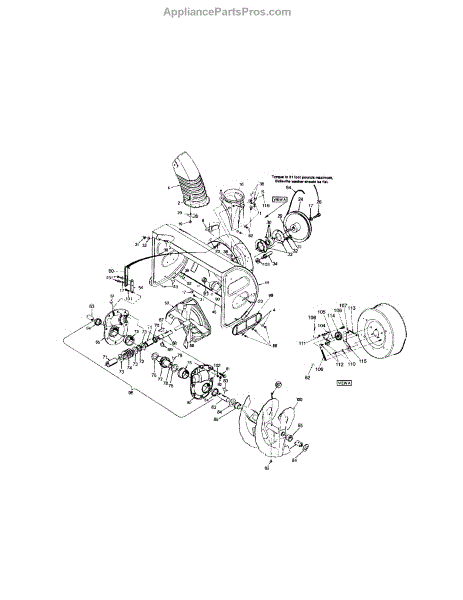

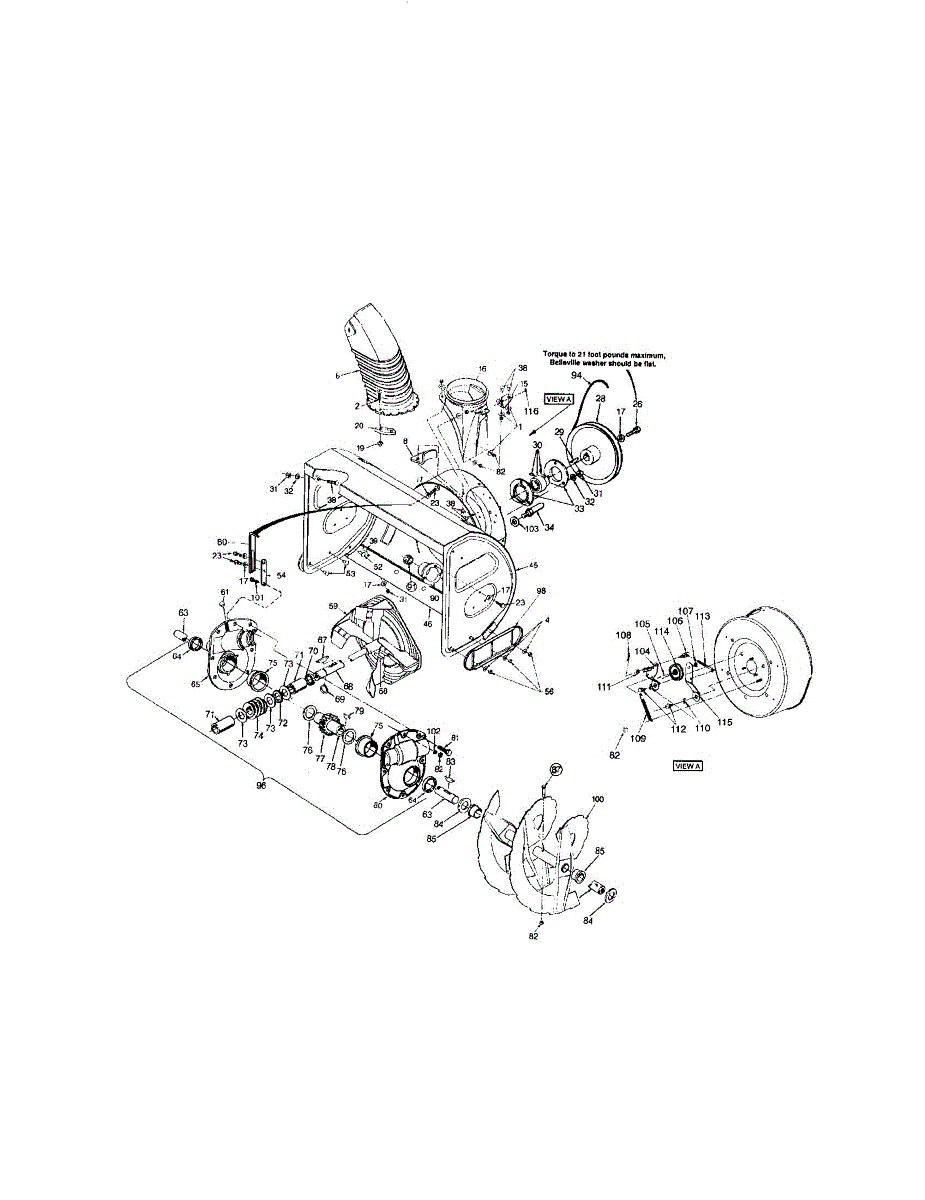

Parts for Mtd 31AE993I401: Blade Assembly Parts

With small gasoline-powered tools that require control panels, this hex screw attaches the panel to the handles of the tools. Machined to be durable, important screws such as these take a real beating. In their locations at critical points on the handle, the hex screws are considered "wear items," and thus periodically, they must be replaced. The control panel itself is often a location of extreme forces, jostling, and abrupt movement in unpredictable directions. The constant movement, with sheet metal rubbing against the hex screws from every direction, make wear inevitable. The manufacturers recommend that spare screws of this type be kept on hand if the heavy use of the equipment is expected. Among the gasoline-powered tools that use these screws are snowblowers, yard tractors, mowers, tiller, chippers, shredders, and other tools requiring hand-maneuvered levers. These screws are compatible with a number of equipment brands and manufacturers, including MTD, Ryobi, Poulan, Yard-Man, Bolens, Troy-Bilt, and Yard Machines.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

The lock nut is a piece of standard hardware that may have a variety of applications on lawn and garden equipment, including on engines, housings, and other components. The lock nut offers a secure fit by tightening into a flange that prevents the nut from loosening like a regular nut might. Over time, the flange or the nut can become worn or damaged. In some cases, lock nuts may be lost during the process of other repairs or maintenance. Replacing them with genuine OEM parts like this lock nut is the best solution. This lock nut is compatible with hundreds of machines, including mowers, snowblowers, and chippers from MTD, Troy-Bilt, Cub Cadet, RYOBI, Yard-Man, Yard Machines, Bolens, and Husky. The ¼-inch lock nut has multiple locations and applications, so owners should consult their parts diagram for exact placement and part number identification. This lock nut is made of durable metal and sold as a single unit. Those who need additional pieces will have to order multiple quantities. This part will require a wrench or a socket to replace, as well as pliers and/or a screwdriver to hold the bolt or screw in place.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

This replacement part is a bearing. This is a genuine replacement part made by MTD. Bearings are small but important parts found in many different types of machines. This part is able to reduce friction among certain pieces in the engine and keep things running properly and efficiently.A new bearing might be needed if the current one is damaged or worn down in any way. Bearings might become stripped down over time due to normal wear and tear. If this is the case it is recommended that it be replaced immediately so that the machine can return to normal functioning. Work gloves are recommended when replacing these small parts. This part is sold individually and is sourced directly from the manufacturer. This part is a genuine OEM replacement part.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

Bearing housing for snow thrower auger assembly. Replaces cracked, broken, or worn housing that causes wobbling or noise. Mounts on auger shaft.

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

33-inch shave plate for snow blowers. Mounts at the base of the auger housing to protect surfaces and control snow intake. Replace when worn, bent, or damaged.

Versatile bolt for lawn tractors and mowers. Secures various components throughout the machine. Replace when damaged, stripped, or missing.

Replace a lost, stripped, or corroded nut on your lawn mower, tractor, or outdoor power equipment. Secures components for safe operation.

This grease plug is a genuine OEM replacement part sourced directly from the manufacturer. It is found on snowblowers and other outdoor yard machines on the gearcase assembly, which houses the auger gear. The grease plug seals the oil port on the gearbox. This keeps lubrication inside the gearbox and is the access point for adding more when needed. If this plug is lost, the gearbox's oil could leak out, and contaminants could get into the gearbox.Lubricate the contents of the gearbox before installing the new grease plug. Locate and remove the two screws on the side to drain the gearbox. Install the grease plug in the bottom. Refill the oil using the vent hole. Continue filling until oil is coming out the top side screw. Close everything back up, and the machine is ready for use. To prepare the equipment for long storage, remove the grease plug and check the oil level. If it is not to the top, add more lubricant before sealing the grease plug.This grease plug is made of durable black molded plastic and is sold as an individual unit. It is compatible with snowblowers and snow throwers manufactured by Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, and Husky.

Protects gearbox components from debris and weather damage. Metal housing keeps internal gears safe from foreign objects. Moderate difficulty repair.

Snow blower won't move forward or reverse? The drive shaft transfers engine power to the wheels. Common fix for loss of drive or jerky movement.

Oil seal prevents leaking from crankshaft input and output shafts. Replace when worn or damaged to maintain proper engine lubrication. Verify fit with model.

Sleeve bearing for snow blowers and throwers. Absorbs friction between moving parts for smooth operation. Replace if worn or damaged. Verify fit with model.

Thrust bearing reduces friction in snow blower moving parts. Replace if you notice unusual noise, vibration, or binding. Verify fit with your model number.

Thrust washer for snow throwers. Installs on drive shafts to reduce friction between rotating parts. Replace if worn, cracked, or missing.

Snow blower won't move or auger won't turn? This gear transfers power between components. Common fix for drive and auger system failures.

Left-hand double-thread worm gear for snow thrower auger drive systems. Replaces worn, stripped, or damaged gears that cause grinding or slippage.

Snow thrower making grinding noises or gears slipping? This gear assembly housing protects and lubricates internal gears for smooth operation.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

This V-belt rotates the auger and impeller on your snow blower. Replace when worn, cracked, or slipping to restore throwing performance. Verify fit.

Auger won't turn or snow won't discharge? This snow blower auger gearbox assembly transfers power to move snow. Moderate DIY repair in 1-2 hours.

Replacement skid shoe for snow blower auger housing. Protects surfaces and controls scraping height. Replace if cracked, worn, or missing for proper operation.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

Brake bracket assembly for snow blowers. Secures the brake mechanism to the frame. Replace if cracked, bent, or broken to restore proper mounting.

Hex screw for lawn mowers and outdoor power equipment. Replaces lost, stripped, or damaged hardware. Secures components and panels during assembly.

Extension spring for gas snow blowers. Installs on control linkage or auger engagement system. Replace if broken, stretched, or missing for proper operation.

Wave washer for lawn tractors and snow blowers. Replace if washer is missing, flattened, or worn to restore proper spacing and tension in assembly.

This replacement part is a screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This specific screw is typically found in snowblowers and is responsible for keeping different parts in place and secure. A new screw might be needed if any current ones are missing or damaged. After years of normal wear and tear screws can become stripped overtime and might need replacing. To replace this part the user should only need a common household screwdriver and possibly pliers if the screws have become wedged in an area. Overall this should be a fairly simple repair depending on the amount of new screws needed.This is a genuine OEM replacement part sourced directly from the manufacturer and is sold individually. Be sure the correct amount of screws are purchased as many machines require more than one to operate successfully.

Restore auger drive system function with this idler bracket. Essential for proper belt tension and auger engagement. Moderate DIY repair for snowblowers.
