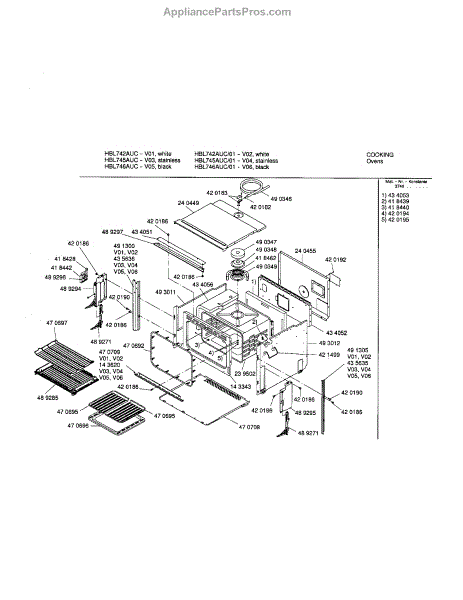

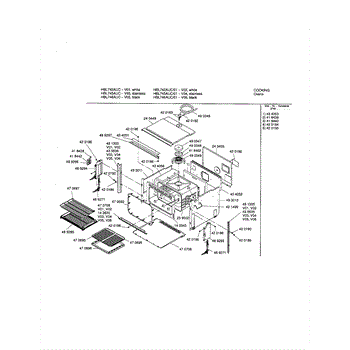

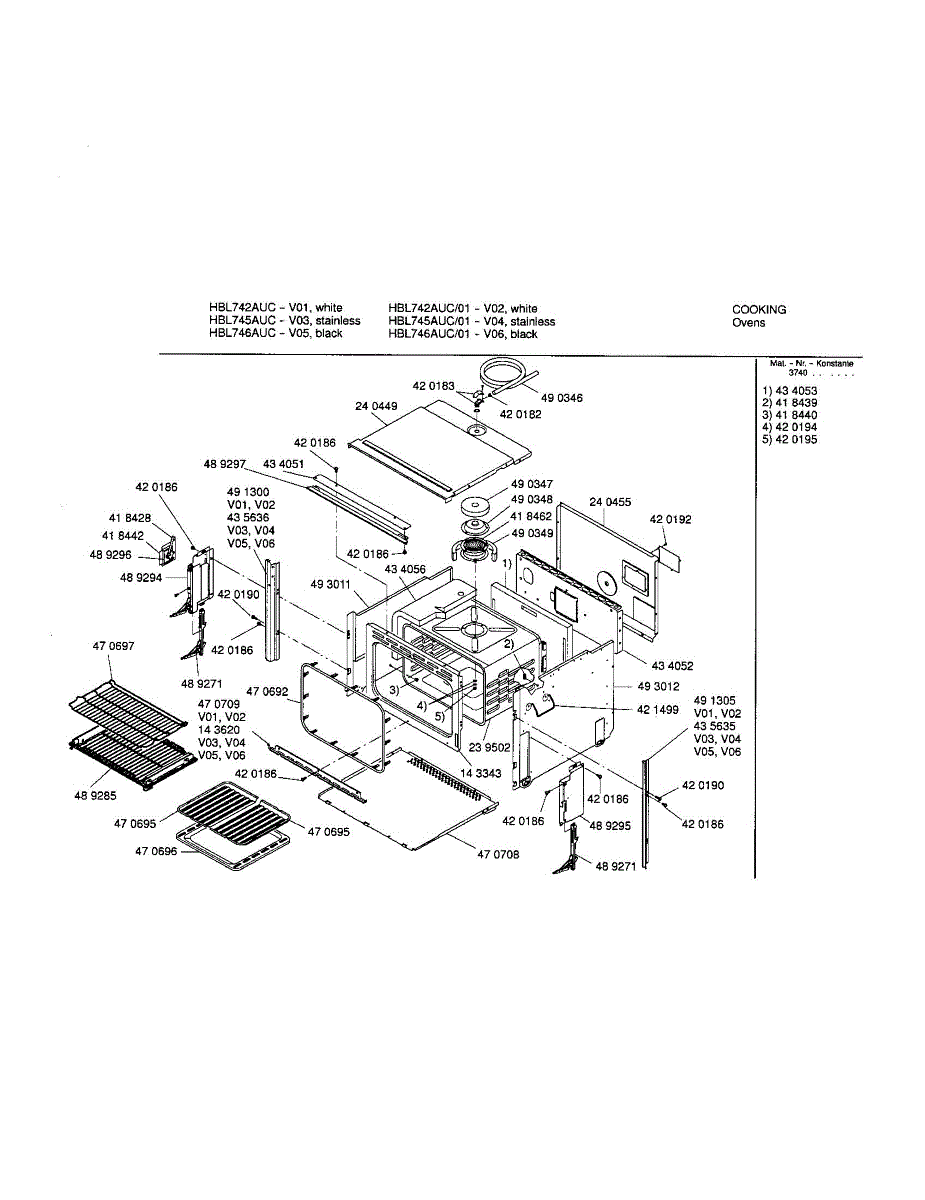

Parts for Bosch HBL746AUC: Body Parts

Replacement use and care manual for wall ovens. Provides operating instructions, maintenance guidelines, and safety information for your oven.

Installation instructions manual for HBL and HBN series wall ovens. Replace lost or damaged paperwork for proper oven mounting and setup guidance.

This oven door hinge switch detects when your oven door is opened or closed, automatically controlling the interior light and sometimes stopping operation for safety. It ensures the light turns on when you open the door and may disable heating elements. Replace this part if the oven light doesn't work, stays on constantly, or if the oven won't operate with the door closed.

This support piece mounts inside the oven cavity and holds oven racks or shelves securely in place. It attaches to the interior side wall and provides a stable ledge for the rack to rest on. Replace this part if oven racks are tilting, sliding out of position, or if the original support has broken or bent.

M4.2 x 9.5mm mounting screw for wall ovens. Secures interior panels, brackets, and components. Replace if stripped, missing, or damaged during repairs.

Insulation pad for electric wall ovens. Installs between the oven cavity and outer panel for heat retention. Replace if worn, torn, or missing.

This is a frying pan designed for use inside a wall oven or range. It sits on the oven rack and is used for stovetop-style cooking tasks such as frying or searing within the oven cavity. Replace this pan if it is warped, the coating is damaged or peeling, or if it no longer sits flat on the rack.

This is the left hand hinge kit. This kit now includes the hinge, hinge housing, microswitch assembly, wire harness and instructions. For the right hand side order 00493360.
