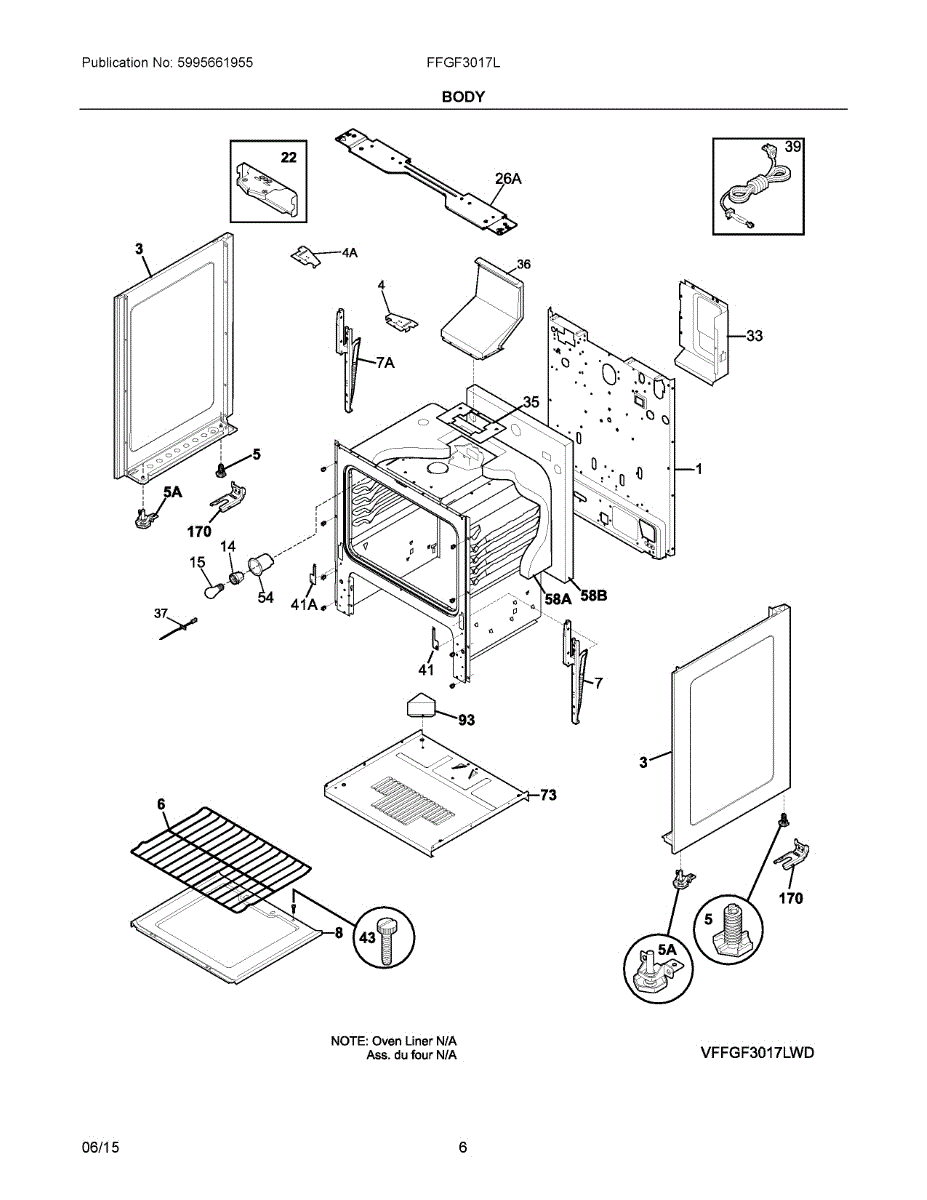

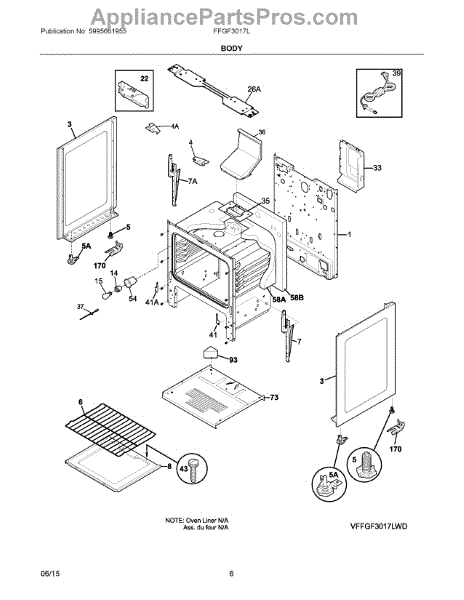

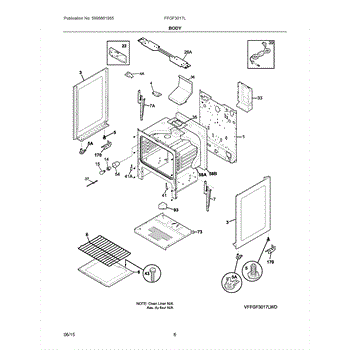

Parts for Electrolux FFGF3017LBF: 04 - Body Parts

This control panel is the exterior trim that houses and protects the oven/range user interface and display, restoring a clean, functional front for the appliance. It keeps buttons and indicators secure and visible for reliable operation. What it does:

• Covers and protects the appliance control buttons, touchpad, and display from spills and damage
• Provides the visible interface for selecting oven functions and viewing status
• Restores a finished appearance to a damaged, cracked, or worn control area
• Helps ensure buttons and indicators align properly for correct operation

• One control panel

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Some models require removing screws or snap clips and gently lifting the old panel from the console
• Handle the panel carefully to avoid scratching the visible finish or bending mounting tabs
• If the panel attaches to electronic components, take care not to damage ribbon cables or connectors; take care not to damage ribbon cables or connectors.

This factory screw secures panels, brackets, and other components in your cooking appliance. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and keep parts properly aligned during use.

• Fastens components to maintain proper alignment and stability
• Helps prevent vibration, rattling, and loose parts during operation
• Replace if threads are stripped, the head is damaged, or the screw is missing
• Commonly used to mount internal or exterior parts in ranges and wall ovens

• Disconnect power and allow the appliance to cool; shut off gas supply if applicable
• Use the correct driver bit to avoid stripping the screw head
• Install in the original location and do not overtighten
• If the receiving threads are damaged, repair or replace the mating part before installation

The Leveling Leg Assembly is an OEM part for Frigidaire ranges. This part provides stability by allowing users to adjust the height of the range, ensuring it is level and balanced on the floor.

Causes of a bad leveling leg assembly can include wear from frequent adjustments, damage due to heavy loads, or breakage from accidental impacts.

Symptoms of a bad leveling leg assembly include:

• The range being uneven or wobbling
• Difficulty in leveling the range using the legs
• Noise or movement when the range is in use
• Doors not aligning properly

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Oven Rack is an OEM part for Frigidaire ovens, designed to provide a stable and durable surface for baking and roasting inside the appliance. This rack is essential for facilitating proper air circulation around food, ensuring even cooking and optimal baking results. The rack measures about 23 inches wide by 16 inches deep.

The primary reasons for replacing an Oven Rack usually involve normal wear and tear from regular use, including the effects of high heat, spills, and the burden of heavy pots and pans.

Symptoms of a needing replacement Oven Rack include:

• Warping or bending from heat exposure or the weight of heavy cookware, which can affect cooking results
• Rust or corrosion that might not only compromise the integrity of the rack but also pose a risk of contaminating food
• Difficulty in sliding the rack in and out smoothly, which could indicate a misshapen rack or damage to its guides

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This oven door hinge controls and supports the door's movement, allowing it to open smoothly and close tightly. A secure, balanced hinge helps preserve the door seal and maintain consistent cooking temperatures.

• Supports door weight and balances spring tension for smooth opening and controlled closing
• Helps the door close fully against the gasket to reduce heat loss and temperature swings
• Replaces worn or bent hinges that cause sagging, slamming, or a door that won't stay closed
• Can reduce squeaks or binding and restore proper door alignment

• Disconnect power and allow the appliance to cool completely before servicing
• Remove the door; lock hinge clips or insert hinge pins before lifting the door off
• Note hinge orientation and spring tension when transferring; keep hands clear of moving spring arms
• After installation, verify door alignment and that the gasket contacts evenly all around

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This bodyside bracket secures the cabinet/body components to the refrigerator frame, helping keep panels aligned and stable for smooth door operation and consistent sealing. Durable replacement for worn or damaged mounting hardware. What it does:

• Provides a stable mounting point between the cabinet side and internal frame to maintain panel alignment
• Helps prevent cabinet movement that can cause door misalignment or uneven gaps
• Restores proper support after impact, corrosion, or stripped fastener holes
• Compatible with common service repairs where the original bracket is bent or broken

• Designed for use with manufacturer-specified fasteners; reuse or replace screws as needed
• Remove power and empty nearby shelves before working to avoid injury or damage
• Use basic hand tools; avoid overtightening fasteners which can crack plastic or deform panels

The Oven Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and regulates the oven's temperature by sending accurate temperature readings to the control board. This ensures that the oven maintains the desired cooking temperature throughout the baking or roasting process.

Causes of a bad oven temperature sensor include exposure to high heat over extended periods, electrical issues, or physical damage to the sensor probe.

Symptoms of a bad oven temperature sensor include:

• Incorrect oven temperatures
• Overheating or underheating during use
• Erratic temperature readings
• The oven not reaching the set temperature

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is the right side cover. For left side use 316233500.

This is the left side cover. For right side use 316233400.

Note: ONE screw only, order as needed.

This oven back insulation panel fits behind the oven cavity to help contain heat and protect rear components. It replaces missing or damaged insulation to help restore normal oven heating behavior and reduce heat transfer to surrounding areas. What it does:

• Limits heat loss from the rear of the oven cavity to help maintain cooking temperature
• Helps reduce excessive heat transfer to rear components and cabinetry
• Use when insulation is torn, compressed, burned, or when the oven takes noticeably longer to preheat
• Helps prevent heat-related damage to wiring, electronics, and nearby parts

• Disconnect power to the appliance before starting any repair
• Access may require pulling the range/oven away from the wall and removing a rear access panel
• Wear gloves and a dust mask when handling old insulation; avoid compressing or tearing the replacement
• Follow OEM instructions for securing insulation with the original clips/adhesive or fasteners

This electrical receptacle is the small connector that secures a wiring plug to an appliance component, restoring a reliable electrical connection and preventing intermittent operation or arcing. What it does:

• Provides a secure plug-in connection between a wire harness and a component
• Restores power to a component when the original connector is cracked, melted, or corroded
• Helps prevent loose connections that can cause intermittent operation or sparks
• Fits the OEM-style wiring configuration for a direct replacement

• Disconnect power to the appliance before starting any repair
• Remove the damaged connector and match the replacement to the harness before installing
• Use basic hand tools; avoid forcing terminals to prevent damage

This metal ignitor shield protects the oven or range ignitor assembly from direct heat and debris, helping maintain reliable ignition and prolong the ignitor's life. It's a simple replacement that restores proper burner protection. What it does:

• Shields the ignitor from spills, drips, and direct flame exposure
• Helps ensure consistent ignition by protecting the ignitor element
• Common symptom: oven or range taking longer to light or erratic ignition
• Common symptom: visible damage or corrosion to the existing shield

• Disconnect electrical power and shut off gas supply before starting work
• Handle parts carefully; avoid contact with the ignitor surface to prevent damage
• Verify correct orientation and secure mounting per the appliance's service instructions

The Anti-Tip Bracket Kit is an OEM part for Frigidaire ranges and ovens. This part secures the appliance to the floor or wall, preventing it from tipping over when the oven door is opened or when heavy cookware is placed on an open door or extended rack. The kit typically includes a metal bracket, screws, and installation instructions.

Over time, or during instances of moving or remodeling, the anti-tip bracket may become dislodged or may not be reinstalled correctly, which can compromise the safety of the appliance.

Symptoms of a missing or improperly installed Anti-Tip Bracket include:

• The range or oven tilts forward when pressure is applied to an open door
• The appliance moves more easily than expected when nudged or cleaned
• Visible absence of a bracket at the lower back portion or floor area behind the appliance

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

This is a replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and keep parts aligned for safe, reliable operation. What it does:

• Secures panels, brackets, and trim to prevent rattling or loosening
• Restores proper fit where a damaged or missing screw caused gaps or movement
• Helps maintain component alignment for smooth operation
• Simple hardware replacement that supports overall appliance stability

• Disconnect power and gas before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or part damage
• Keep small parts away from children and dispose of old fasteners responsibly

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal

Size: 8-32t x 0.500 inch. Color: Black.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Anti-Tip Bracket Kit is an OEM part for Frigidaire ranges and ovens. This part secures the appliance to the floor or wall, preventing it from tipping over when the oven door is opened or when heavy cookware is placed on an open door or extended rack. The kit typically includes a metal bracket, screws, and installation instructions.

Over time, or during instances of moving or remodeling, the anti-tip bracket may become dislodged or may not be reinstalled correctly, which can compromise the safety of the appliance.

Symptoms of a missing or improperly installed Anti-Tip Bracket include:

• The range or oven tilts forward when pressure is applied to an open door
• The appliance moves more easily than expected when nudged or cleaned
• Visible absence of a bracket at the lower back portion or floor area behind the appliance

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Anti-Tip Bracket Kit is an OEM part for Frigidaire ranges and ovens. This part secures the appliance to the floor or wall, preventing it from tipping over when the oven door is opened or when heavy cookware is placed on an open door or extended rack. The kit typically includes a metal bracket, screws, and installation instructions.

Over time, or during instances of moving or remodeling, the anti-tip bracket may become dislodged or may not be reinstalled correctly, which can compromise the safety of the appliance.

Symptoms of a missing or improperly installed Anti-Tip Bracket include:

• The range or oven tilts forward when pressure is applied to an open door
• The appliance moves more easily than expected when nudged or cleaned
• Visible absence of a bracket at the lower back portion or floor area behind the appliance

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.
