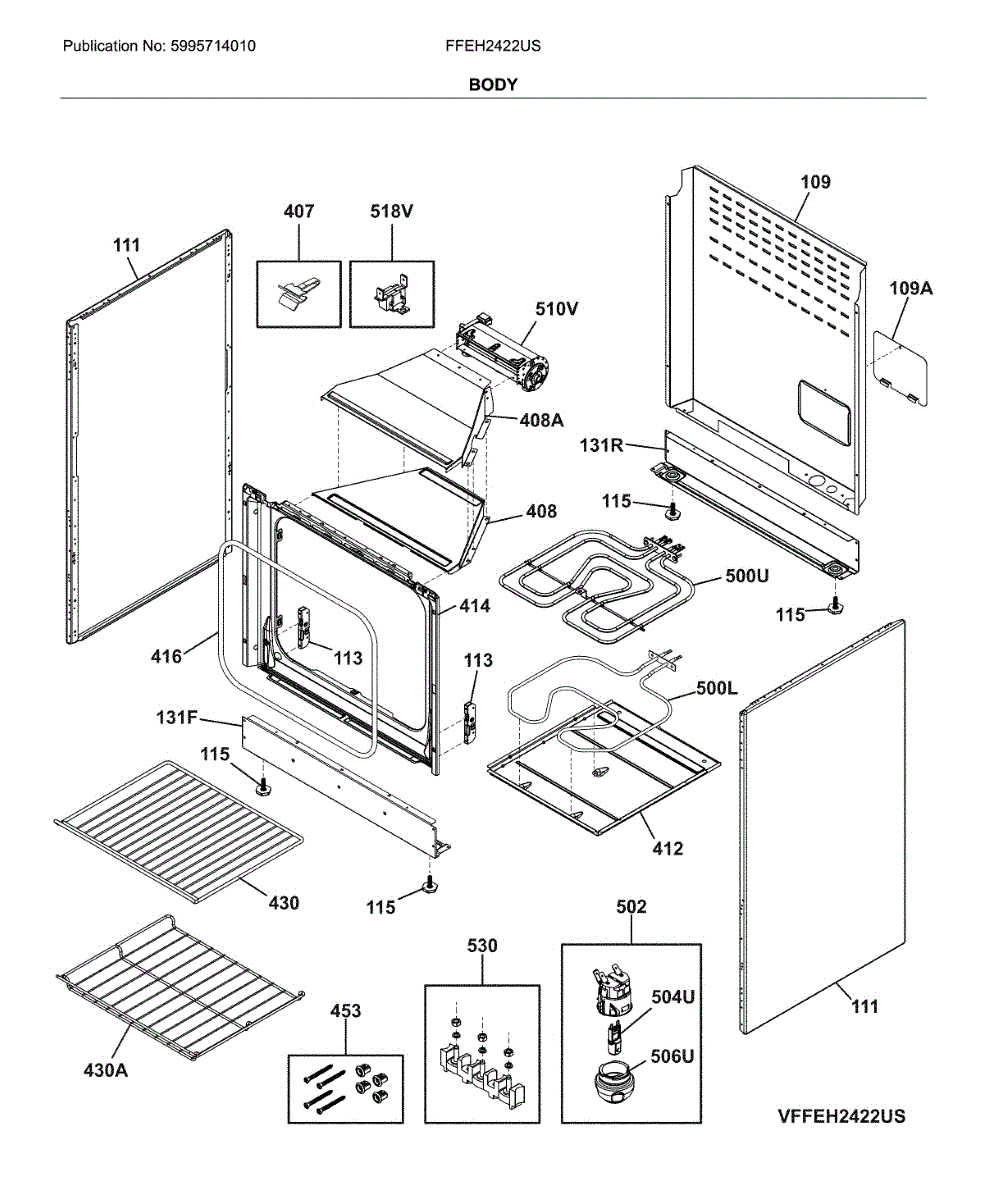

Parts for Frigidaire FFEH2422US: Body Parts

This receptacle is an electrical connector that links the appliance wiring harness to a component, restoring a secure, low-resistance connection for reliable power delivery and signal transfer. What it does:

• Provides a secure electrical connection between the wiring harness and a component.
• Ensures consistent power or signal flow to lights, controls, or motors.
• Common symptom indicators: intermittent or no power to a component, flickering lights, or component failure when the connector is damaged or corroded.
• Helps prevent poor contact that can lead to arcing or heat buildup at the connection.

• Disconnect power to the appliance before inspecting or replacing the connector.
• Verify connector orientation and fully seat until it clicks or is secure; do not force.
• Inspect wiring for damage; replace or repair damaged wires before installing the new receptacle.

This round cooktop surface element replaces a worn or damaged electric range burner to restore even heating for stovetop cooking. It provides a direct-fit heating element for compatible Frigidaire electric ranges. What it does:

• Heats cookware on the cooktop for boiling, frying, and simmering
• Replaces a cracked, non-heating, or intermittently heating burner element
• Restores consistent surface temperature for predictable cooking results
• Works with the range's terminal connections and control switch to regulate heat

• One round cooktop surface element

• Disconnect power to the appliance at the breaker before starting any repair
• Remove the cooktop or burner assembly per the range service instructions to access terminals
• Match element terminal configuration and mounting tabs before installing to ensure fit

This bake element replaces the oven's lower heating element to restore even baking and broiling performance. It heats the oven cavity so food cooks properly and maintains set temperatures for consistent results. What it does:

• Provides the primary heat source for baking by converting electrical energy into heat.
• Heats evenly across the oven floor area to help restore proper bake and roast results.
• Commonly used when the oven won't reach or hold set temperatures or food cooks unevenly.
• Works with the oven's temperature control and safety circuits to regulate cooking heat.

• One bake (lower) oven heating element as shown.

• Disconnect power to the appliance at the breaker before starting work.
• Replacement typically requires removing the oven floor or inner panel to access mounting screws and electrical connectors.
• Handle the element carefully; avoid bending terminals and ensure connectors are fully seated.

This replacement light bulb restores bright, dependable illumination inside your oven so you can monitor cooking without opening the door. Swap it in when the oven light is out, very dim, or flickers during use. What it does:

• Illuminates the oven cavity in a range or wall oven
• Lets you check food without opening the door and losing heat
• Common fix for no light, dim light, or intermittent flickering
• Replaces a burned-out/broken bulb as the first step in troubleshooting

• One light bulb

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely.
• Remove the light cover/lens per your model; handle glass components carefully.
• Install the new bulb securely; avoid touching the glass with bare hands—use a clean cloth or gloves.
• Reinstall the cover, restore power, and test the oven light.

This mechanical temperature control thermostat regulates refrigerator/freezer temperature by sensing temperature and switching the cooling system on and off. Replaces a worn or failed control to help restore stable interior temperatures. What it does:

• Senses cabinet temperature and cycles the compressor or evaporator fan to maintain set temperature.
• Can stop cooling when the thermostat fails open or cause continuous running when it fails closed.
• Commonly replaced when the appliance won't reach set temperature, runs too often, or exhibits erratic temperature changes.
• Works with capillary-style sensing bulbs—handle the bulb carefully to preserve accuracy.

• Disconnect power to the appliance before accessing or replacing the thermostat.
• Handle the sensing bulb and capillary tube gently; avoid kinking, crushing, or stretching the tube.
• Confirm proper routing and mounting of the sensing bulb per the appliance's service instructions for accurate operation.
