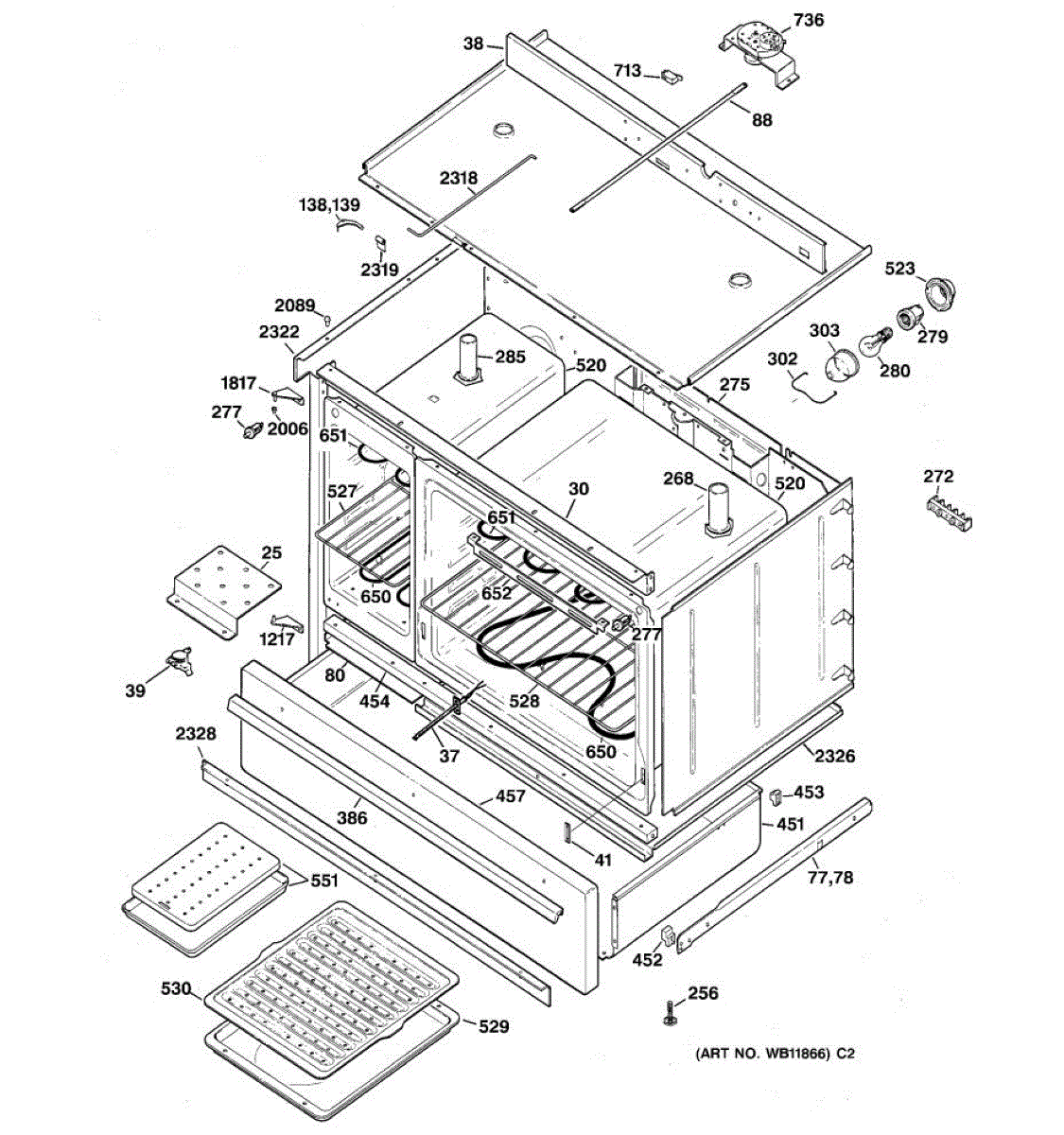

Parts for Ge JCP67Y4WW: 02 - Body Parts & Drawer Parts

This lower oven heat shield protects the range's lower cavity and components from direct heat, helping maintain safe operation and preventing premature damage to adjacent parts. It's a simple replacement when the original is warped or corroded. What it does

• Deflects and disperses heat away from the oven's lower compartment and nearby components.
• Helps prevent damage to insulation, wiring, and nearby metal panels caused by excessive heat.
• Common symptom: shield is visibly warped, rusted, cracked, or missing.
• Reduces hot spots or burning odors caused by heat contacting other parts.

• Disconnect power (and gas, if applicable) and allow the appliance to cool completely before starting.
• Wear gloves to avoid sharp edges; handle the shield carefully to prevent cuts.
• Retain or replace mounting hardware as needed; ensure the shield fits flush and mounting points align.

This right-side hinge pin provides the pivot point that lets a refrigerator door open and close smoothly, restoring proper alignment and reducing sag or wobble for a secure seal. What it does:

• Acts as the pivot pin on the refrigerator door's right hinge assembly
• Supports door weight and keeps door aligned for an even seal
• Replace if the door sags, binds, makes noise, or no longer closes properly
• Works with existing hinge components; replaces worn, bent, or damaged pins

• Disconnect power and empty or support the door before removing hinge hardware
• Support the door while changing the pin to prevent injury or damage
• Tighten hinge fasteners to OEM torque and check door alignment after installation

This small oven light switch controls power to the oven cavity lamp so you can turn the interior light on and off as needed. It replaces a worn or failed switch to restore reliable oven lighting. What it does:

• Completes or breaks the circuit for the oven interior light when engaged
• Commonly used when the oven light won't turn on, stays off, or works intermittently
• Replaces a failed or sticky switch that prevents the lamp from responding
• Matches OEM function and fits the original switch location when specified for your model

• One oven light switch

• Disconnect power to the appliance before starting any repair
• Access is typically through the oven control console or inner liner; remove panels per your model's service instructions
• Handle wiring and connectors carefully; note connector locations before removing

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

This switch latch secures the appliance door and engages the door switch so the unit operates only when the door is closed, helping restore normal start and safety interlock function. What it does:

• Replaces a worn or broken latch that prevents the door from fully engaging.
• Allows the door switch to activate so the appliance can start or run.
• Commonly used when the door won't stay closed, the unit won't start, or cycles unexpectedly.
• Fits the original mounting points and engages the existing door switch mechanism.

• Disconnect power (unplug or shut off breaker) before beginning any work.
• Basic hand tools are typically required; handle sharp edges carefully.
• Verify replacement part number matches the part being removed before installation.
