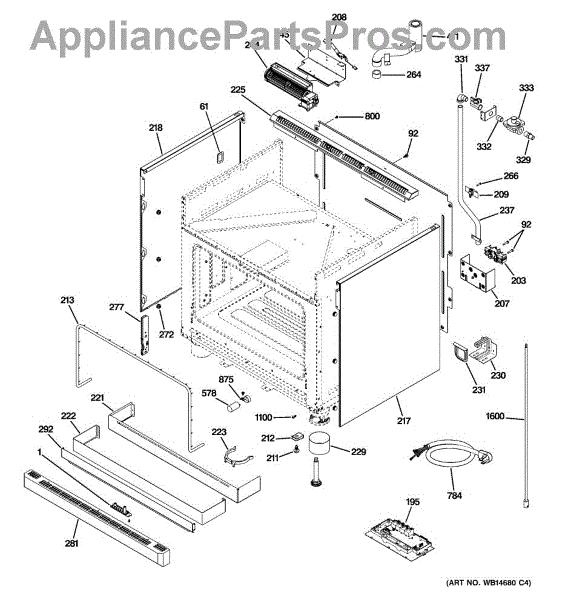

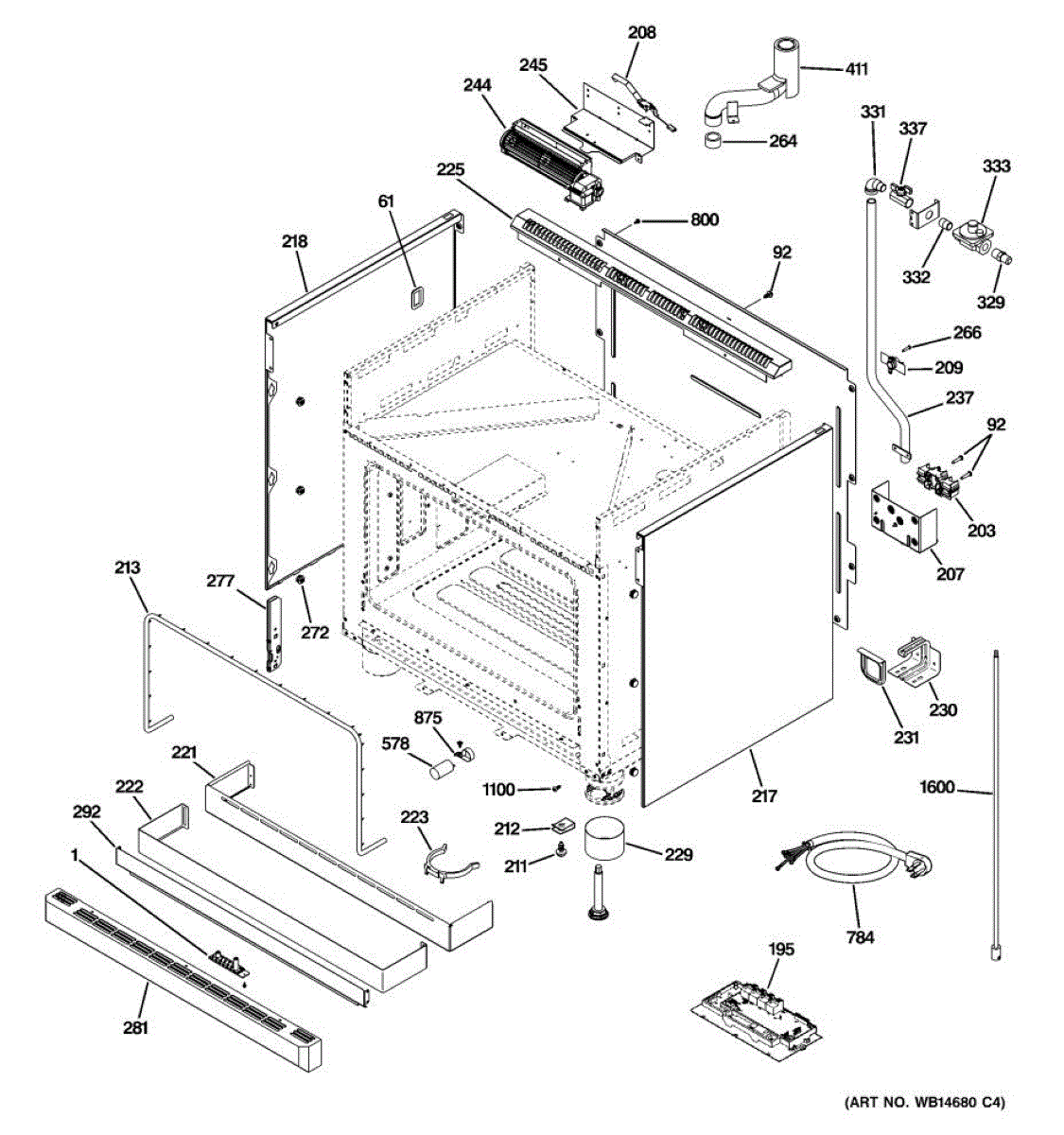

Parts for Ge ZDP366LP2SS: 04 - Body Parts

This carrier orifice assembly routes and meters gas to a surface burner so the cooktop lights and maintains a steady flame. It restores proper gas delivery for reliable burner performance and safer operation. What it does:

• Holds the orifice that meters gas flow to the burner for correct flame size and stability
• Ensures consistent ignition and even heating across the burner
• Can address weak, uneven, or inconsistent flames and burners that struggle to light
• Works as the mounting interface between the gas valve/orifice and the burner head

• Shut off gas supply and electrical power before servicing the appliance
• Basic hand tools are typically required; avoid forcing fittings or overtightening

This lubricant/cleaner is used during service of cooking appliances to dissolve residue and provide light lubrication on small moving parts. It helps restore smoother operation of control shafts and valves when burner knobs feel stiff or sticky. What it does:

• Cleans deposits and old grease from control shafts and valve components
• Provides light lubrication to reduce friction and sticking
• Helps address symptoms such as hard-to-turn burner knobs or rough valve rotation
• Supports preventative maintenance during range/cooktop service

• Lubricant/cleaner

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Work in a well-ventilated area and keep away from open flames or ignition sources
• Apply sparingly per service instructions; avoid contact with igniters, electrical components, and flame ports
• Replace any worn or leaking valve—do not rely on lubricant/cleaner to correct a leak

This wire bushing protects appliance wiring where wires pass through metal or plastic panels, helping prevent chafing and shorts. It restores a safe insulating barrier to wiring harnesses and terminals. What it does:

• Cushions and isolates wires where they pass through openings to prevent abrasion and wire damage
• Helps stop rubbing that can wear insulation and cause arcing or shorts
• Reduces risk of intermittent power, blown fuses, or burning smells from damaged wiring
• Restores proper routing and strain relief for affected harnesses

• Remove power to the appliance before accessing wiring; disconnect power at the breaker or unplug.
• Inspect surrounding wire insulation and harness for damage; replace any wires that show charring or exposed conductors.
• Push the bushing into the opening until seated, then route the wire through the bushing to ensure a snug fit.

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

This relay board assembly routes line voltage to the appliance's assigned components as directed by the main control. Replacing a failed board restores consistent power delivery and dependable heating/ignition on the affected side.

• Switches power to loads assigned to the right-side circuit group
• Common symptoms: no heat/ignition on that side, components won't energize, intermittent operation, or visible/burnt board damage
• Restores proper sequencing of components when commanded by the electronic control

• Disconnect electrical power at the breaker; shut off gas supply if applicable
• Use ESD protection; avoid touching solder joints or relay contacts
• Label/photograph all wiring; move connectors to matching terminals; transfer any mounting hardware from the original board
• Ensure all harnesses are fully seated and the board is secured before restoring power and testing

The Terminal Block Assembly is an OEM replacement part for GE electric stoves. It acts as the central wiring connection hub, routing power to critical heating components such as the oven bake/broil elements and stovetop burners.

Symptoms of a bad terminal block include:

• Intermittent or unpredictable burner/heating element operation
• Inability to achieve proper cooking temperatures
• Buzzing or crackling noises from inside the stove cabinet

Causes stem from normal wear over time, as vibration and heat cycling can cause cracks or corrosion in the block's electrical connections.

This OEM GE part is compatible with Hotpoint, RCA, and some Kenmore electric stove models.

This switch sail assembly is the user-facing actuator that engages a range or cooktop control switch, letting you select heat settings and turn burners on or off. It restores tactile control when the original actuator is worn or broken. What it does:

• Replaces the plastic sail/actuator that interfaces with a control switch for safe, reliable operation
• Transfers knob movement to the internal switch so burners respond to your setting
• Commonly used when a control feels loose, slips, or fails to change settings
• Fits into the control panel and snaps or secures into the switch housing to make a firm connection

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Installation typically requires removing the control panel or trim and carefully disengaging the old actuator from the switch
• Handle plastic components gently to avoid breakage; correct orientation before reassembly

This hi-limit thermostat is a temperature-sensing safety switch that stops power to the heating circuit if temperatures rise above safe levels, helping protect the appliance from overheating and heat-related damage. What it does:

• Senses excessive temperature and interrupts power to the heating element
• Helps prevent continuous heating and potential overheating hazards
• Can cause the appliance to lose heat or fail to maintain temperature when it trips or fails
• Common symptom: no heat or intermittent heating when the limiter is open

• Disconnect power to the appliance before inspecting or replacing the limiter
• Locate and replace only the thermostat explicitly matching the appliance's wiring and mounting
• Verify wiring terminals match and are secure; do not modify terminals or leads

Size: 8-18 x 1/2 inch.

This anti-tip bracket secures a freestanding range or oven to the floor or wall to help prevent tipping during normal use, improving safety and stability. Simple, durable bracket designed to restore the factory anchoring point. What it does:

• Anchors the rear/base of a freestanding range to help prevent the unit from tipping forward
• Reduces rocking or shifting when opening heavy oven doors or sliding cookware
• Restores the proper mounting point after damage or missing hardware
• Helps address symptoms like a range that tilts or moves when pressure is applied

• One anti-tip bracket

• Follow the appliance OEM installation instructions; bracket mounts to floor or wall framing—locate a stud or secure to recommended substrate
• Turn off and disconnect power (and gas if applicable) and remove access panels as required before beginning work
• Use proper fasteners for your floor/wall material; do not rely on adhesive or weak anchors

This anti-tip brace secures the range to the floor or wall to help prevent the appliance from tipping forward when a heavy load is on an open oven door or when pressure is applied to the top edge. It restores a key safety restraint and helps stabilize the appliance. What it does

• Anchors the range to reduce forward tipping when the oven door is open or heavy items are placed on the door
• Helps prevent accidents and appliance movement during normal use
• Works with the range's built-in leveling and mounting points to provide a secure attachment
• Commonly replaced after a move, installation, or if the original bracket is damaged or missing

• One anti-tip brace

• Follow the appliance installation manual for correct placement and mounting location
• Unplug the appliance (or shut off power) and remove access panels as needed before installing
• Use appropriate fasteners for your floor/wall material; secure to framing or floor as specified

The Blower Tangential 45mm is an OEM part for GE gas ranges. It is the convection fan that circulates heated air within the oven cavity during convection cooking cycles.

Symptoms of a bad blower tangential include:

• Lack of airflow inside the oven
• Uneven baking and roasting results
• Inability to select convection cooking modes

Causes of failure can be worn bearings, burned out motor, or damage from excess heat over long-term use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

This side support panel replaces a damaged or missing support on the appliance's side, helping secure and align the cabinet and trim so the unit sits solidly and looks finished after installation or service. What it does:

• Provides structural support for the side of the appliance cabinet and adjacent trim
• Helps maintain correct spacing and alignment next to countertops or panels
• Replaces a bent, warped, or corroded panel
• Reduces rattles or rubbing caused by a loose side assembly

• One side support panel

• Disconnect power; turn off gas supply before servicing
• Carefully pull the unit forward for side access; support it to prevent tipping
• Remove fasteners, transfer any clips/brackets from the old panel, and reinstall with existing hardware
• Wear cut-resistant gloves and verify clearances and level before final tightening

This threaded connector secures or joins short sections of tubing or hose on select appliances, restoring a tight, reliable connection. Use when the original nipple is corroded, stripped, or leaking. What it does:

• Provides a secure, threaded connection between tubing, hose, or fittings
• Maintains a sealed joint to help prevent leaks at the connection point
• Replaces damaged or worn nipples that can cause loose fittings or loss of flow
• Commonly used where a short, durable threaded coupling is required

• One nipple

• Disconnect power and shut off water or gas supply before servicing
• Inspect mating threads and replace any damaged seals or washers
• Hand-start threads to avoid cross-threading, then tighten with the appropriate wrench
• After installation, restore supply and check carefully for leaks during a test run

The Regulator is an OEM part for GE gas ranges and ovens. As a key safety component, the regulator is responsible for maintaining a consistent gas pressure and flow to the burners. It works to reduce higher pressure gas from the supply line to a lower, more controlled pressure required for safe and efficient burner operation.

Causes of a bad regulator can include corrosion or degradation of internal components over many years of use. The precisely calibrated mechanisms that control gas flow can malfunction if wear and tear afflict the regulator.

Symptoms of a bad regulator include:

• Inconsistent or unpredictable burner flame
• Flames that fluctuate between high and low
• Burners that fail to light or stay lit
• Difficulty achieving or maintaining proper cooking temperatures

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This line cord kit replaces a damaged or worn power cord to restore a safe electrical connection between the appliance and your home's outlet. It helps ensure consistent power delivery so the appliance can operate reliably. What it does:

• Replaces a broken, frayed, or damaged power cord to restore appliance power
• Provides the external cord and connection hardware needed to attach to the appliance's power inlet
• Helps stop intermittent power loss or outages caused by a failing cord
• Reduces the risk of arcing or exposed wiring from a compromised cord

• Always disconnect power at the breaker or unplug the appliance before starting any work
• Follow the appliance manufacturer's wiring diagram and instructions when connecting the cord
• Use the original strain relief and secure all connections tightly to prevent wire pull-out

The Screw is an OEM replacement part for GE refrigerators. Countless screws are used throughout the refrigerator to securely hold parts in place.

Symptoms of a bad or missing screw can include:

• Rattling or vibration noises coming from inside the appliance
• Doors or other parts that are no longer properly aligned
• Increased frost or cold air leaks due to compromised seals

Causes may include normal wear and tear over time, accidental damage or loss of a screw during repairs, or improper assembly leaving crucial screws omitted.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.
