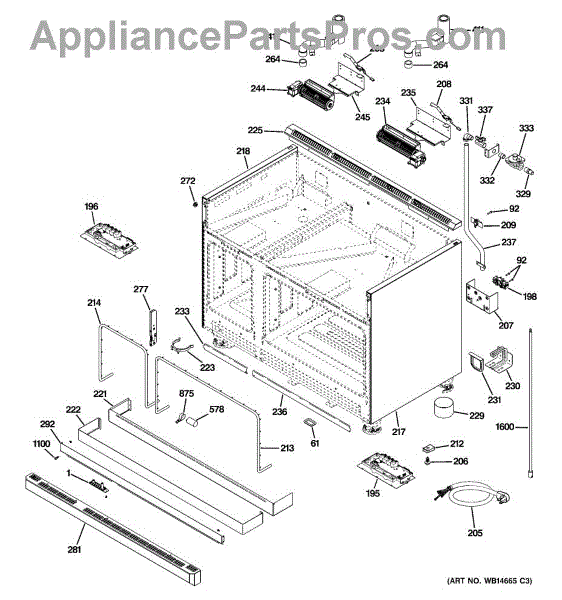

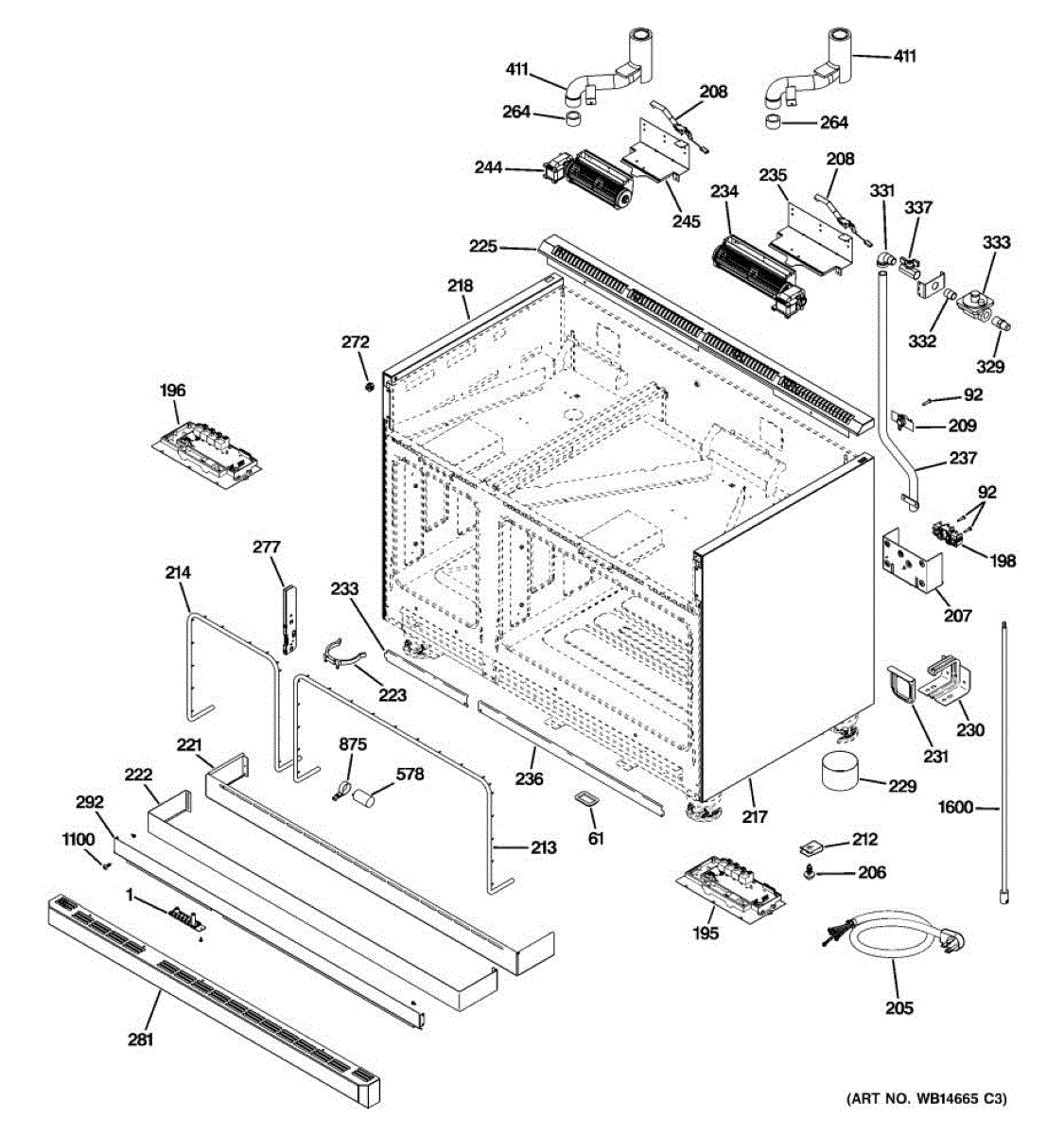

Parts for Ge ZDP486LDP2SS: 06 - Body Parts

Stainless steel cleaner for gas ranges and cooktops. Restores shine and removes fingerprints, smudges, and streaks from exterior surfaces.

Burner orifice carrier assembly for gas cooktops and ranges. Holds and positions the gas orifice. Replace if cracked, damaged, or improperly seating.

Lubricant cleaner for range and oven control shafts, burner valves, and rack paddles. Dissolves residue and restores smooth operation when parts feel stiff.

This wire bushing protects appliance wiring where wires pass through metal or plastic panels, helping prevent chafing and shorts. It restores a safe insulating barrier to wiring harnesses and terminals. What it does:

• Cushions and isolates wires where they pass through openings to prevent abrasion and wire damage
• Helps stop rubbing that can wear insulation and cause arcing or shorts
• Reduces risk of intermittent power, blown fuses, or burning smells from damaged wiring
• Restores proper routing and strain relief for affected harnesses

• Remove power to the appliance before accessing wiring; disconnect power at the breaker or unplug.
• Inspect surrounding wire insulation and harness for damage; replace any wires that show charring or exposed conductors.
• Push the bushing into the opening until seated, then route the wire through the bushing to ensure a snug fit.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

If your oven won't heat or displays error codes, the relay board may have failed. This assembly routes power to burners and heating elements.

This relay board assembly controls and routes power to key appliance components, restoring reliable switching for motors, compressors, or heating elements. Replacing a failed relay board can resolve intermittent operation and restore normal function. What it does:

• Switches power to major loads so motors, compressors, or heaters run when commanded
• Replaces worn or failed relays that cause intermittent starts or clicking noises
• Helps stop erratic operation or loss of function in affected circuits
• Prevents overloads from passing through a damaged relay assembly (when replaced)

• One relay board assembly

• Disconnect power to the appliance before starting any repair to avoid shock or damage
• Handle the board carefully; avoid touching contacts and use ESD precautions if available
• Verify connector orientation and seat all wiring harnesses fully during reassembly

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

Size: 8-18 x 1/2 inch.

Burner won't turn on or heat settings won't change? This control switch sail assembly restores the actuator that engages your range's control switch.

Range overheating or heating element won't turn off? This high-limit thermostat cuts power when temperatures exceed safe levels. Quick safety fix.

Front frame gasket for gas ranges. Replace when worn, cracked, or causing heat loss around oven door. Verify compatibility with your model number.

Replace your gas range door frame gasket to restore proper sealing and heat retention. Prevents heat loss and improves oven efficiency. Verify fit with your model.

Secures the toe kick panel to your range base. Replace if the toe kick is loose, rattling, or won't stay in place. Verify fit with your model number.

This trim vent weld assembly secures and finishes the dryer vent opening for a clean, stable fit. It restores proper vent alignment and helps maintain airflow where the vent meets the appliance exterior. What it does:

• Provides the finished trim and welded mounting needed at the appliance vent opening
• Holds the vent in place to prevent gaps and reduce air leaks around the vent
• Helps restore proper vent alignment after damage or rusted trim
• Commonly replaced when the vent trim is bent, broken, or detached

• Install with appropriate hand tools; inspect surrounding sheetmetal for damage before fastening
• Use care to avoid sharp edges; wear gloves and eye protection during installation
• Confirm fit with the appliance model and part number before installation
• If venting issues persist after replacement, inspect vent ductwork for obstructions or damage

Leveling leg kit for ranges and wall ovens. Includes adjustable feet to stabilize and level your appliance. Replace cracked, bent, or missing legs.

Secures freestanding ranges to the floor or wall to prevent tipping. Replace if bracket is missing, bent, or damaged during appliance installation.

Secures your range to the floor or wall to prevent tipping when the oven door is open. Replace if bracket is bent, broken, or missing during installation.

The Blower Tangential 45mm is an OEM part for GE gas ranges. It is the convection fan that circulates heated air within the oven cavity during convection cooking cycles.

Symptoms of a bad blower tangential include:

• Lack of airflow inside the oven
• Uneven baking and roasting results
• Inability to select convection cooking modes

Causes of failure can be worn bearings, burned out motor, or damage from excess heat over long-term use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

This side support panel replaces a damaged or missing support on the appliance's side, helping secure and align the cabinet and trim so the unit sits solidly and looks finished after installation or service. What it does:

• Provides structural support for the side of the appliance cabinet and adjacent trim
• Helps maintain correct spacing and alignment next to countertops or panels
• Replaces a bent, warped, or corroded panel
• Reduces rattles or rubbing caused by a loose side assembly

• One side support panel

• Disconnect power; turn off gas supply before servicing
• Carefully pull the unit forward for side access; support it to prevent tipping
• Remove fasteners, transfer any clips/brackets from the old panel, and reinstall with existing hardware
• Wear cut-resistant gloves and verify clearances and level before final tightening

This threaded connector secures or joins short sections of tubing or hose on select appliances, restoring a tight, reliable connection. Use when the original nipple is corroded, stripped, or leaking. What it does:

• Provides a secure, threaded connection between tubing, hose, or fittings
• Maintains a sealed joint to help prevent leaks at the connection point
• Replaces damaged or worn nipples that can cause loose fittings or loss of flow
• Commonly used where a short, durable threaded coupling is required

• One nipple

• Disconnect power and shut off water or gas supply before servicing
• Inspect mating threads and replace any damaged seals or washers
• Hand-start threads to avoid cross-threading, then tighten with the appropriate wrench
• After installation, restore supply and check carefully for leaks during a test run

Replacement gas pressure regulator for your range. Installs on the gas supply line to control fuel flow. Order a new regulator if damaged or leaking.

Gas pressure regulator for ranges and ovens. Connects between the gas supply line and burners to control gas flow. Replace if cracked or leaking.

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Mounting bracket that secures the capacitor to your range frame. Replace if bent, broken, or missing to properly support and position the capacitor.

Replacement screw for refrigerators. Secures handles, panels, and internal components. Order if yours is missing, stripped, or lost during repairs.
