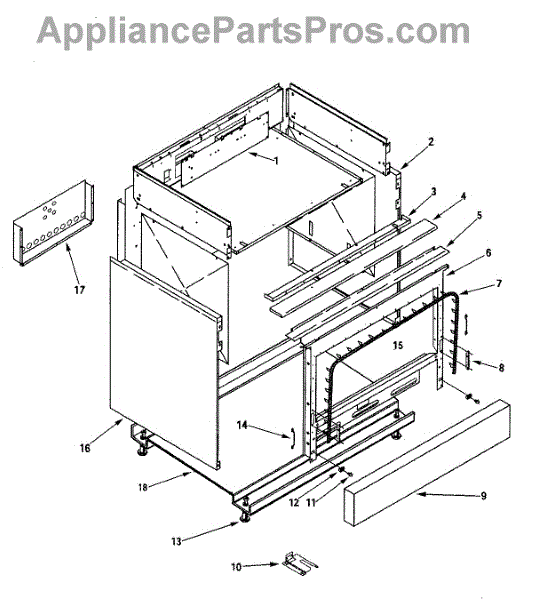

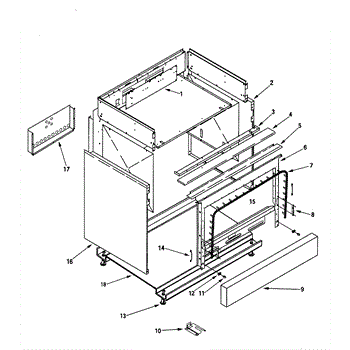

Parts for Jenn-Air PRG3610NP: 01 - Body Parts

This lower heat shield protects nearby components from excessive oven or range heat, helping maintain safe operating temperatures and preventing heat damage. It's a simple replacement that restores proper heat deflection around the lower cavity. What it does

• Deflects and disperses radiant heat away from adjacent parts and wiring.
• Prevents heat-related damage to insulation, wiring, and nearby panels.
• Helps maintain consistent oven cavity temperatures by directing heat where intended.
• Can resolve symptoms like burned insulation, scorched panels, or heat-related odor near the lower section.

• One lower heat shield (single piece as shown).

• Disconnect power (and gas, if applicable) before service; follow all safety precautions.
• Basic removal/installation with hand tools; keep screws and mounting clips for reuse unless replacement specified.
• Inspect surrounding insulation and fasteners; replace any damaged hardware or insulation.

This replacement screw secures appliance components and panels in their proper position. Replacing worn, stripped, or missing hardware restores a tight fit, reduces vibration or rattles, and helps maintain safe, reliable operation per the manufacturer's design. What it does:

• Fastens panels, brackets, or assemblies where specified in the model's parts diagram
• Replaces missing, rusted, or stripped hardware
• Helps eliminate looseness, rattling, or vibration
• Restores secure alignment of mounted components

• 1 screw

• Disconnect power and shut off water/gas before servicing.
• Verify the exact location in your model's parts diagram and replace screws one at a time to maintain alignment.
• Use the correct driver/bit; start threads by hand to avoid cross-threading and do not overtighten.
• Inspect mating holes/clips for damage; repair or replace related hardware if threads are compromised.
