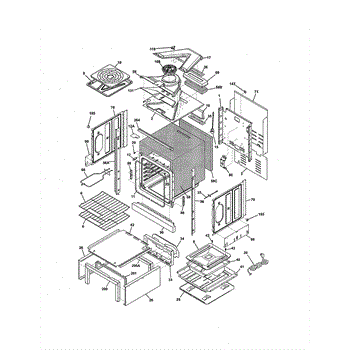

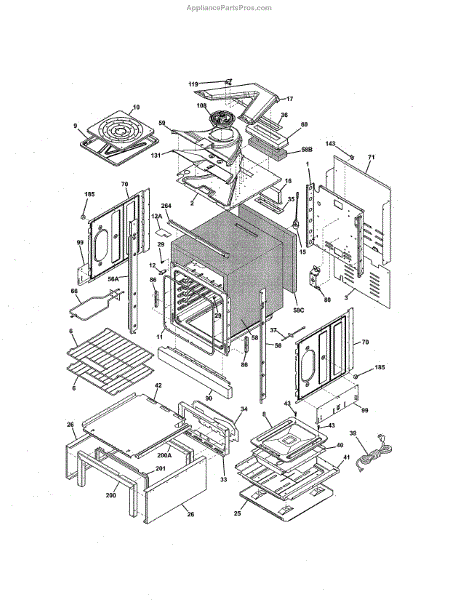

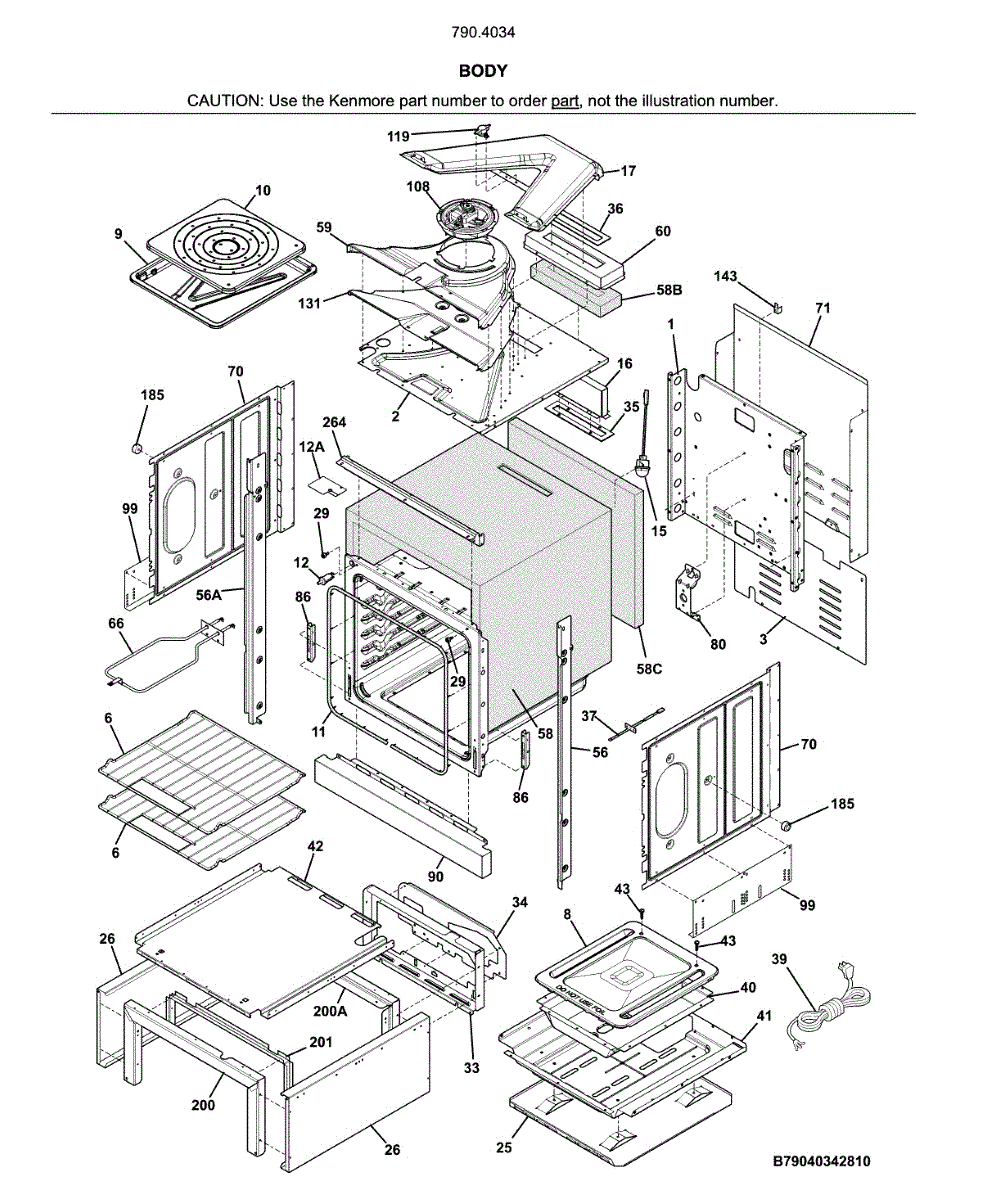

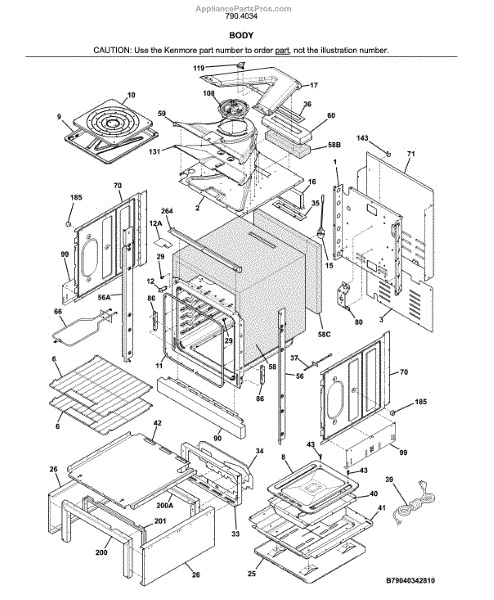

Parts for Kenmore 790.40349810 (79040349810, 790 40349810): Body Parts

The Oven Rack is an OEM part for Frigidaire ranges and ovens. This rack provides an elevated platform for neatly organizing and baking multiple food items at once.

Causes of a bad oven rack can include warping or bending of the metal wires over time due to repeated high temperature cooking. The metal may also develop rust or fractures.

Symptoms of a bad oven rack include:

• Food items toppling over or sliding around during baking
• Gaps appearing between wires where food is not fully supported
• Difficulty fitting baking sheets or pans flush on the rack
• Potential rust or flaking of the metal rack surface

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This two-piece broiler pan and insert set creates a proper broiling surface in your range or wall oven. The vented top supports food while drippings collect below, helping reduce smoke and splatter for more consistent browning.

• Provides a slotted broiling surface that lets fats drain into the pan below
• Helps protect the oven cavity from spills and reduce smoke during broiling
• Replaces a missing, warped, rusted, or heavily stained broiler pan assembly
• If existing pan causes uneven browning, smoke, or odors, replacing it can restore broiling performance

• Allow the oven and racks to cool completely before handling
• Wash the new pan and insert before first use; dry thoroughly
• Set rack height per your owner's manual; seat insert on the pan and slide onto the rack
• Do not cover the insert with foil unless your manual permits; keep clear of the broil element

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement switch restores reliable control of a selected function by opening or closing an electrical circuit inside your appliance. When the original switch wears out, buttons may stop responding or features may not activate consistently.

• Opens/closes an electrical circuit when the button/actuator is engaged
• Routes power or sends a signal to the control or component
• Common symptoms: no response when pressed, intermittent operation, or function won't start
• May show signs of heat damage, loose terminals, or inconsistent "click" feel

• Disconnect power at the breaker before servicing
• Photograph or label wire positions to ensure correct transfer to the new switch
• Move wires one at a time; fully seat connectors on the correct terminals
• Reassemble, restore power, and test the function activated by the switch

The Range Lamp Assembly is an OEM part for Frigidaire stoves and ranges. It consists of the halogen light bulb, lens cover, and wiring harness necessary to illuminate the oven cavity. This lamp assembly provides light to the cooking and baking space, making it easier to view food and monitor cooking progress.

Symptoms of a bad range lamp assembly include:

• The oven light not turning on at all
• Dim, flickering, or intermittent light
• Burned out or blown light bulb
• Cracks or damage to the lens cover

Causes of failure can be a burned out light bulb, broken wiring, or damage from impact or heat over time.

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This flue assembly directs hot gases and exhaust from the oven cavity to the rear or top vent, helping maintain proper oven temperatures and protecting nearby controls and cabinetry from excess heat. What it does

• Channels combustion or bake/broil exhaust away from the oven cavity to the external vent path
• Helps prevent excess heat buildup behind the control panel or in surrounding cabinetry
• Common symptom fix: reduces heat/odor or smoke coming into the control area or kitchen
• Supports consistent broiling and bake performance by maintaining proper exhaust flow

• One flue assembly

• Verify power (and gas for gas models) is disconnected and the appliance is cool before starting
• Installation may require removal of the oven back panel or range top; follow the appliance's service manual
• Handle edges carefully—part may have sharp metal edges

This shield is a replacement protective cover that helps guard internal components from debris and directs airflow where needed. It restores the appliance's intended protection and helps reduce noise and wear when the original shield is missing or damaged. What it does:

• Covers and protects internal parts from dust, food particles, and accidental contact
• Helps maintain proper airflow or component positioning
• Prevents rattling or vibration caused by a loose or broken cover
• Supports appliance longevity by restoring original component protection

• One replacement shield

• Disconnect power before beginning any repair to avoid shock or injury
• Installation typically requires basic hand tools; keep fasteners for reuse if undamaged
• Handle edges carefully — sheet-metal parts can be sharp
• Refer to your model's service manual or parts diagram for placement and fastener locations

This small replacement spacer positions and secures appliance components to maintain correct alignment and fit. Installing the spacer restores proper panel spacing and reduces vibration where a worn or missing spacer causes looseness or rubbing. What it does:

• Maintains the correct gap between panels, trim, or assemblies to ensure parts fit flush
• Keeps components aligned to prevent rubbing, binding, or uneven wear
• Helps reduce vibration and rattling caused by a missing or damaged spacer
• Preserves original part spacing for reliable operation of the surrounding components

• Disconnect power to the appliance before any service to avoid shock or injury
• Remove any trim or fasteners that block access; keep track of screws and small parts
• Match the new spacer's orientation to the original; do not force parts into place

The Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and helps regulate the oven's internal temperature, ensuring consistent cooking results by accurately detecting temperature changes. This sensor is crucial for the oven's control system to maintain the desired cooking temperature.

Symptoms of a bad Temperature Sensor include:

• Inaccurate oven temperature readings,
• Oven not heating to the set temperature,
• Oven overheating,
• Frequent temperature fluctuations during use.

Causes of a sensor failure can include prolonged exposure to high temperatures, electrical surges, or a breakdown of the sensor's components due to normal wear and tear.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal

This replacement power cord restores electrical connection to the appliance so it can receive mains power safely. Use it when the original cord is frayed, damaged, or no longer providing a reliable connection. What it does:

• Replaces a damaged or worn appliance power cord to restore reliable power
• Resolves intermittent power, sparking at the plug, or visible cord damage
• Provides the necessary insulated conductors for safe appliance operation
• Works as a direct cord-replacement when the original cord is defective

• Always disconnect power at the breaker or unplug the appliance before installing
• Route the cord and secure strain relief per the appliance's original routing to prevent pinching
• Ensure the cord's connector and grounding match the appliance's inlet before connecting

Note: ONE screw only, order as needed.

This decorative trim piece restores the finished edge and appearance of the appliance door, covering the gap between panels and creating a clean, factory look. It helps protect the door edge from dings and wear while improving aesthetics. What it does:

• Replaces damaged, dented, or missing decorative trim on the appliance door
• Covers panel seams and fasteners for a continuous, factory-finished appearance
• Helps prevent dirt and moisture intrusion along the door edge
• Useful when door edges show cosmetic wear or after panel repairs

• Designed for straightforward replacement; remove any clips or screws that secure the old trim before installing the new piece
• Handle trim carefully to avoid scratching the finish during installation
• Use the manufacturer's recommended clips or fasteners and ensure proper alignment before securing
• Disconnect power to the appliance if any disassembly could expose electrical components

This mounting bracket secures internal panels or components to the appliance frame, restoring stable support and alignment for proper operation. Use when a bracket is bent, broken or missing to reduce rattling and keep parts positioned correctly. What it does:

• Anchors panels or components to the cabinet/frame to prevent movement and vibration
• Restores proper alignment of doors, panels or internal assemblies
• Stops rattling or buzzing caused by loose or damaged support hardware
• Helps maintain safe clearance between parts and wiring or moving components

• Disconnect power to the appliance before starting any repair
• Basic hand tools typically required; follow OEM instructions for correct fastener locations
• Inspect adjacent fasteners and mounting surfaces; replace any damaged screws or clips
• If bracket is corroded or severely deformed, replace rather than re-bend to ensure proper fit

Replacement screw that secures panels, trim and internal components in compatible appliances. Restores proper fit and helps reduce rattling or loose parts when the original fastener is missing, worn, or damaged. What it does:

• Fastens panels, brackets, trim pieces and small component assemblies to the appliance frame
• Helps eliminate noise and vibration caused by loose or missing fasteners
• Replaces stripped, corroded or missing screws to restore secure mounting
• Matches OEM fit when the identical screw is required for proper alignment

• Disconnect power to the appliance before starting any repair
• Use the correct driver size to avoid cam-out or damage to the screw head
• Do not overtighten; overtightening can strip threads or crack plastic parts

This spacer sets the correct gap between mating parts in your appliance's assembly, preventing rubbing and misalignment. Replace a missing or worn spacer to restore a solid fit, reduce noise, and protect surrounding components.

• Maintains proper spacing between components for correct alignment and operation
• Reduces metal-to-metal contact, squeaks, and premature wear
• Helps fasteners and panels seat securely
• Typical symptoms when failed: loose or rattling parts, uneven gaps, or visible wear marks

• Disconnect power; for gas models, shut off the gas. Allow the appliance to cool completely.
• Access the assembly per your model's diagram; note the original orientation/stack-up before removal.
• Reuse original fasteners if serviceable; hand-start threads and tighten snugly to avoid damaging the spacer.
• Verify alignment and clearances before fully reassembling. Quantity and location vary by model.

A direct-replacement motor assembly that restores the appliance's fan-driven airflow. Replaces a failed fan motor so your appliance can circulate air and maintain proper operation. What it does:

• Spins the fan to provide airflow for cooling, ventilation, or heat distribution
• Stops abnormal noises related to a failing motor
• Helps restore normal temperature regulation and airflow when the fan has stopped running
• Addresses intermittent operation or no-run conditions caused by a worn or failed motor

• Disconnect power to the appliance before starting any repair
• Handle the motor and fan blades carefully to avoid damaging wiring or connectors
• Typical install requires removing access panels and mounting screws; retain hardware for reinstallation

This temperature control thermostat regulates refrigerator temperature by cycling the compressor and evaporator fan to keep food cold. It replaces a failed control to restore consistent cooling. What it does:

• Senses internal cabinet temperature via a capillary bulb and rod, opening/closing the electrical circuit to the compressor
• Stops excessive compressor run time when the set temperature is reached
• Helps correct symptoms such as inconsistent temperatures, unit running continuously, or failure to cool
• Works as the user-adjustable control when the front dial or lever is turned

• One thermostat assembly with capillary tube and mounting bracket

• Disconnect power before replacing; follow all safety precautions
• Handle the capillary tube and bulb gently—do not kink, stretch, or crimp the sensor
• Verify proper routing and secure mounting to ensure accurate temperature sensing

This is a replacement mounting screw used to secure the appliance power/control board, restoring a solid electrical board connection and preventing vibration or loose contacts. Ideal for repairs where the original screw is missing or damaged. What it does:

• Fastens the power/control board to the appliance chassis to keep connections stable
• Helps prevent board movement that can cause intermittent electrical issues or noise
• Restores proper mounting after service or component replacement

• Turn off and unplug the appliance before starting any repair
• Use appropriate screwdriver and avoid over-tightening to prevent board or thread damage
• Wear eye protection and keep small parts away from children and pets

This spacer positions and supports components to maintain proper alignment and clearance in the appliance. It prevents rubbing and ensures panels or parts sit correctly for reliable operation. What it does:

• Keeps panels, brackets or assemblies spaced correctly to prevent contact and wear
• Restores proper alignment to reduce vibration, noise or rubbing symptoms
• Maintains clearance for airflow or moving parts where specified
• Provides a stable mounting point for adjacent components

• One spacer

• Install in the location shown in the service diagram and secure with the original fasteners
• Disconnect power to the appliance before beginning service to avoid shock or injury
• If the original spacer shows damage or distortion, replace it to restore correct fit
