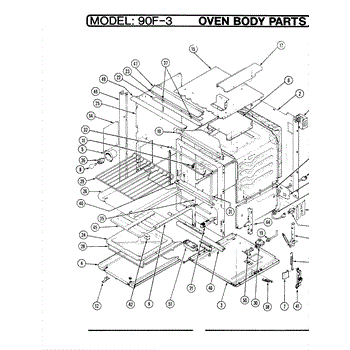

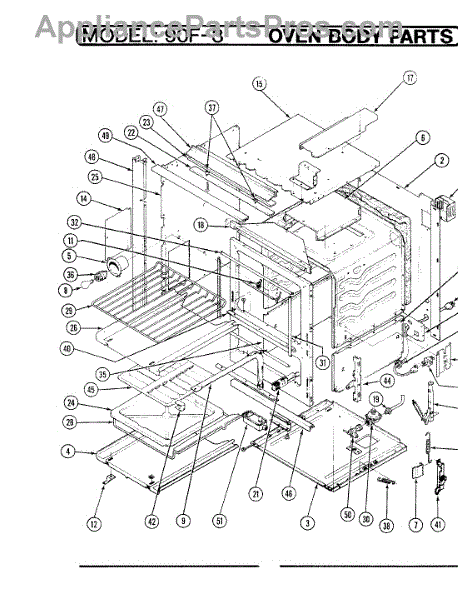

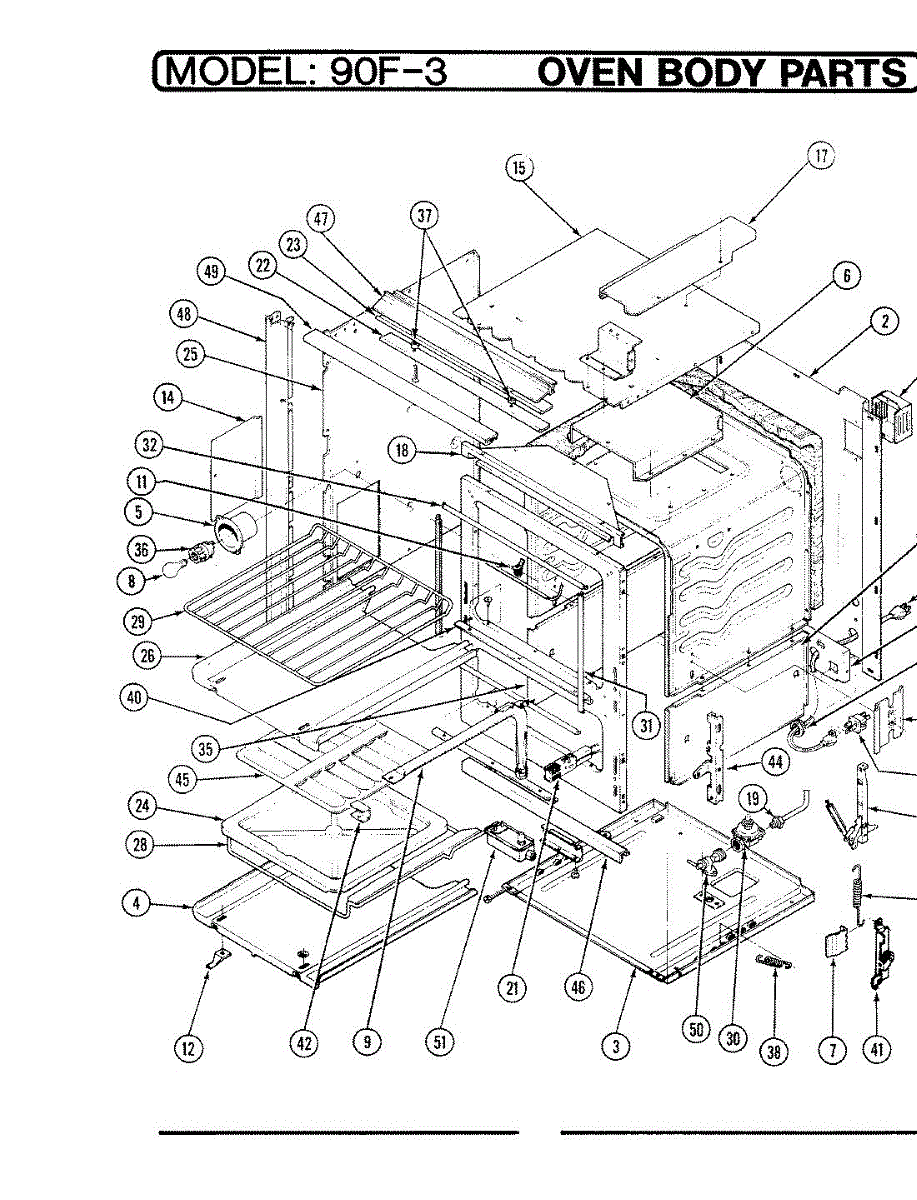

Parts for Magic Chef 90FN-3KLX: 01 - Body Parts

This part has been discontinued by the manufacturer and is no longer available.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

A replacement oven rack that restores stable support for cookware and baking pans, helping maintain even cooking and safe handling. Designed to fit the original rack slots for reliable, everyday oven use. What it does

• Provides a stable shelf for cookware, bakeware and roasting pans.
• Replaces bent, rusted or damaged racks that catch or tilt during use.
• Helps restore proper airflow and consistent cooking when racks sit level.
• Visible, functional repair that avoids sliding or sticking when moving trays.

• Fits into existing oven rack slides; remove old rack by sliding out and lifting if needed.
• No tools required for typical replacement; handle with oven mitts if warm.
• Inspect rack stops and guide rails for damage before installing.
• Follow oven manufacturer safety guidelines: disconnect power or ensure appliance is cool before servicing.

This side door gasket forms the sealing edge for the appliance door to restore a tight seal and reduce leaks, drafts, or moisture build-up. Replacing a worn or torn side gasket helps the door sit flush and improves overall performance. What it does

• Seals the door side edge to stop air, moisture or heat from escaping
• Common symptom of a failing gasket: visible gaps, drafts, water or steam leaks
• Can reduce rattling or uneven door closure caused by a warped or compressed seal
• Restores proper contact between door and frame for consistent operation

• Disconnect power and allow the appliance to cool before starting
• Remove the old gasket carefully; retain any clips or screws if re-used per manufacturer guidance
• Press the new gasket into the channel evenly; check for full seating along the entire side edge
• After installation, close the door and inspect for uniform contact; adjust door alignment if needed

This horizontal oven door seal lines the top and bottom edges of the door opening to keep heat contained inside the cavity. Replacing a worn seal restores stable temperatures, more efficient preheating, and consistent baking results.

• Seals the oven opening along the top and bottom edges to reduce heat loss
• Helps maintain set temperature and overall cooking performance
• Replaces cracked, frayed, flattened, or brittle horizontal gasket
• Common signs include visible gaps, heat escaping around the door, longer preheat times, and temperature fluctuations

• Disconnect power and allow the oven to cool completely before servicing
• Open the door and carefully pull the old seal straight out of the retainer
• Note clip/retainer positions as you remove the old seal and reuse them as designed
• Press the new seal evenly into place without stretching; ensure corners are fully seated for a uniform seal

This part has been discontinued by the manufacturer and is no longer available.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.
