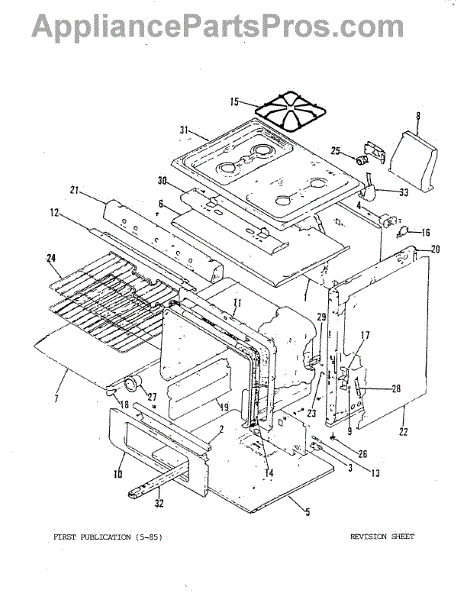

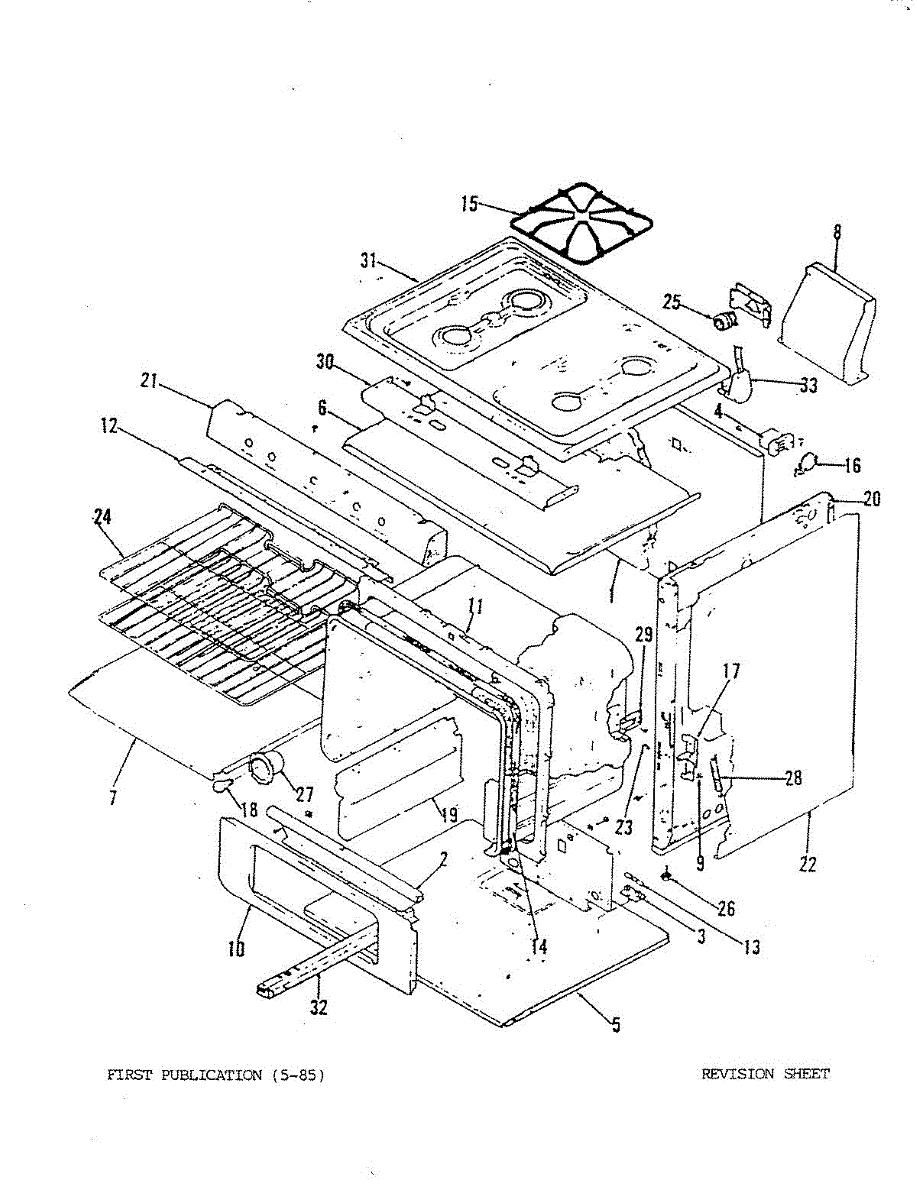

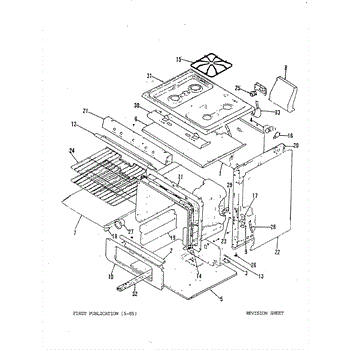

Parts for Magic Chef B31FS-2X-DD: 01 - Body Parts

This part has been discontinued by the manufacturer and is no longer available.

This mounting clip secures a thermostat, temperature sensor, or capillary bulb in the correct position so it can sense temperature accurately and control the appliance. Replacing a damaged or missing clip helps prevent loose components and erratic readings. What it does:

• Holds the thermostat or sensor firmly against its mounting surface for proper thermal contact
• Helps maintain stable, accurate temperature regulation
• Replaces a bent, broken, or missing clip that won't hold securely
• Common symptoms include a dangling sensor/bulb, rattling, or inconsistent temperature response

• 1 clip

• Disconnect power (and gas, if applicable) and allow the appliance to cool completely before service
• Access the thermostat/sensor area and note original orientation and routing
• Move the component into the new clip and secure it at the original mounting location
• Avoid kinking a capillary tube or damaging sensor leads; the clip is fully seated

This burner grate replaces a damaged or worn cooktop support to restore stable cookware placement and even heating on your range. It provides a durable cooking surface designed for safe, reliable use. What it does:

• Supports pots and pans over the burner for safe, balanced cooking
• Restores proper burner-to-pan contact to help improve heat transfer
• Replaces cracked, warped, or chipped grates that cause instability
• Compatible with standard sealed gas burner designs

• One replacement burner grate

• Install by lifting out the old grate and seating the new grate into the cooktop openings
• Ensure the cooktop is cool and gas supply is turned off before handling
• Clean surrounding cooktop surfaces of debris before installing to ensure a flush fit

This spacer maintains the correct gap between mating components inside your appliance, keeping parts aligned and operating smoothly. Replacing a worn or missing spacer restores proper fit and helps prevent rubbing, noise, and premature wear. What it does:

• Sets and preserves the correct stand-off between components for proper alignment
• Helps ensure smooth operation and consistent control feel
• Reduces friction and contact that can cause noise or wear
• Common failure signs: loose or wobbly parts, rubbing/scraping sounds, misalignment, poor fit

• 1 spacer

• Disconnect power and, if applicable, shut off gas supply before servicing.
• Note the orientation of the original spacer and match it during reassembly.
• Handle nearby trim and control components carefully to avoid damage.
• After reassembly, verify smooth operation and proper clearances before restoring power/gas.

This control knob replaces a worn, broken or missing range/stove control knob to restore safe, simple temperature and function selection. It provides a direct fit and the tactile stop-and-click feel users expect from factory knobs. What it does:

• Replaces a damaged or stripped control knob so the burner or oven settings can be selected accurately.
• Restores grip and rotation for reliable on/off and temperature selection.
• Helps eliminate slipping or poor engagement between the shaft and knob.
• Fits original control shafts to maintain intended control detents and positioning.

• Turn power and gas off before servicing controls; follow appliance manufacturer safety instructions.
• Pull old knob straight off the control shaft; align new knob on the splines and press firmly until seated.
• If knob does not fully seat or rotates loosely, confirm shaft type and knob orientation before forcing.

This surface burner knob fits the valve stem for a cooktop/range burner control. It restores a secure grip and accurate adjustment when the original knob is cracked, stripped, loose, or missing.

• Attaches to the surface burner valve stem to turn the burner on/off and adjust flame level
• Replaces a knob that slips, won't stay on, cracks, melts, or free-spins
• Helps restore proper Off alignment and a clean, finished look

• Ensure all controls are in the Off position; disconnect power and shut off gas as a safety precaution
• Pull the old knob straight off the valve stem—do not pry sideways
• Align the flat/D-shaped opening with the valve stem and press firmly until fully seated
• Verify smooth operation and correct Off alignment before restoring power/gas

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

This genuine pin hinge secures and guides the appliance door, restoring smooth pivoting and proper alignment for reliable opening and closing. It's a direct-fit replacement designed to help stop door sag, binding, or uneven gaps. What it does:

• Provides the pivot point that lets the door swing open and closed
• Keeps the door aligned to the cabinet for a proper seal and even gap
• Replaces worn or bent pins that cause door sag, scraping, or noisy operation
• Helps restore smooth, wobble-free door motion

• Disconnect power (and water for dishwashers) before starting work
• Support the door during removal to prevent dropping or damage
• Simple hand tools typically required; reuse original screws unless damaged
• If the door has glass or heavy panels, get a helper to hold weight during installation

This oven door spring restores the door's counterbalance so it opens smoothly and closes firmly. Replacing a fatigued spring helps prevent heat loss and supports consistent baking by ensuring the door seals properly. What it does:

• Provides tension to counterbalance the oven door through the hinge mechanism
• Helps the door close fully against the gasket to retain heat
• Restores smooth, controlled opening and closing action
• Common symptoms of a worn spring: door drops or feels heavy, won't stay closed, heat escaping/uneven temperatures

• One oven door spring

• Disconnect electrical power; turn off gas supply to the range if applicable
• Springs and hinges are under tension—support the door/hinge and use caution
• Note spring hook positions/orientation before removal; reinstall in the same locations
• After replacement, verify the door closes fully and the seal is even

Color: Black
