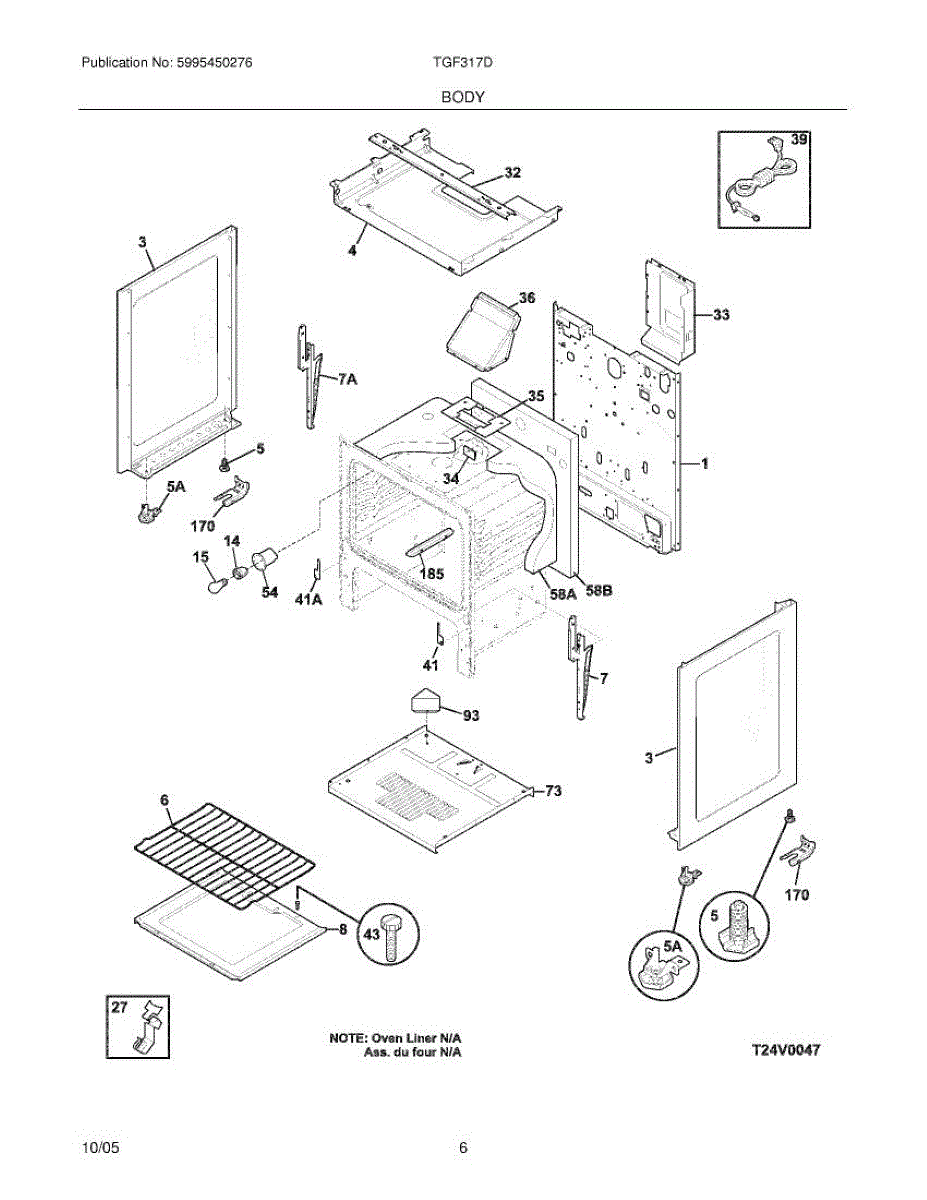

Parts for Tappan TGF317DUC: 07 - Body Parts

This factory screw secures panels, brackets, and other components in your cooking appliance. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and keep parts properly aligned during use.

• Fastens components to maintain proper alignment and stability
• Helps prevent vibration, rattling, and loose parts during operation
• Replace if threads are stripped, the head is damaged, or the screw is missing
• Commonly used to mount internal or exterior parts in ranges and wall ovens

• Disconnect power and allow the appliance to cool; shut off gas supply if applicable
• Use the correct driver bit to avoid stripping the screw head
• Install in the original location and do not overtighten
• If the receiving threads are damaged, repair or replace the mating part before installation

The Leveling Leg Assembly is an OEM part for Frigidaire ranges. This part provides stability by allowing users to adjust the height of the range, ensuring it is level and balanced on the floor.

Causes of a bad leveling leg assembly can include wear from frequent adjustments, damage due to heavy loads, or breakage from accidental impacts.

Symptoms of a bad leveling leg assembly include:

• The range being uneven or wobbling
• Difficulty in leveling the range using the legs
• Noise or movement when the range is in use
• Doors not aligning properly

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Oven Rack is an OEM part for Frigidaire ovens, designed to provide a stable and durable surface for baking and roasting inside the appliance. This rack is essential for facilitating proper air circulation around food, ensuring even cooking and optimal baking results. The rack measures about 23 inches wide by 16 inches deep.

The primary reasons for replacing an Oven Rack usually involve normal wear and tear from regular use, including the effects of high heat, spills, and the burden of heavy pots and pans.

Symptoms of a needing replacement Oven Rack include:

• Warping or bending from heat exposure or the weight of heavy cookware, which can affect cooking results
• Rust or corrosion that might not only compromise the integrity of the rack but also pose a risk of contaminating food
• Difficulty in sliding the rack in and out smoothly, which could indicate a misshapen rack or damage to its guides

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement clip secures components within your appliance. Replacing a broken, bent, or missing clip restores a firm hold on panels or assemblies to prevent shifting and reduce vibration noise.

• Holds specified parts or panels in place where a clip is called out in the assembly
• Helps maintain proper alignment and minimizes rattles/vibration
• Direct replacement for a damaged or missing clip
• Common symptoms: loose or misaligned parts, rattling during operation, clip visibly broken or missing

• Disconnect power before service; also shut off gas/water supplies
• Note the original clip orientation and placement; take a photo for reference
• Use needle-nose pliers for removal/installation; avoid overbending or deforming the clip
• Inspect mating parts for wear or damage and ensure the clip seats fully

This flue directs exhaust and heat away from the oven cavity to the range vent path, helping maintain proper ventilation and combustion airflow. It replaces damaged or corroded flue components to restore safe venting and oven performance. What it does:

• Channels heat, smoke and combustion exhaust from the oven cavity toward the vent path
• Helps prevent heat buildup behind the oven control area and adjacent panels
• Can reduce visible soot, odors or poor venting caused by a cracked or bent flue
• Supports proper burner combustion airflow in gas models when correctly installed

• One replacement flue

• Disconnect the appliance from power (and gas supply on gas models) before starting work
• Access typically requires removing the oven back panel or drop-in cooktop; keep track of mounting screws and gaskets
• Wear gloves to protect from sharp sheet-metal edges and use caution aligning the flue to vent openings
• After installation, restore power/gas and verify normal oven operation and proper venting; check for signs of leaks or loose fasteners

This is the right side cover. For left side use 316233500.

This is the left side cover. For right side use 316233400.

Note: ONE screw only, order as needed.

This oven back insulation panel fits behind the oven cavity to help contain heat and protect rear components. It replaces missing or damaged insulation to help restore normal oven heating behavior and reduce heat transfer to surrounding areas. What it does:

• Limits heat loss from the rear of the oven cavity to help maintain cooking temperature
• Helps reduce excessive heat transfer to rear components and cabinetry
• Use when insulation is torn, compressed, burned, or when the oven takes noticeably longer to preheat
• Helps prevent heat-related damage to wiring, electronics, and nearby parts

• Disconnect power to the appliance before starting any repair
• Access may require pulling the range/oven away from the wall and removing a rear access panel
• Wear gloves and a dust mask when handling old insulation; avoid compressing or tearing the replacement
• Follow OEM instructions for securing insulation with the original clips/adhesive or fasteners

This metal ignitor shield protects the oven or range ignitor assembly from direct heat and debris, helping maintain reliable ignition and prolong the ignitor's life. It's a simple replacement that restores proper burner protection. What it does:

• Shields the ignitor from spills, drips, and direct flame exposure
• Helps ensure consistent ignition by protecting the ignitor element
• Common symptom: oven or range taking longer to light or erratic ignition
• Common symptom: visible damage or corrosion to the existing shield

• Disconnect electrical power and shut off gas supply before starting work
• Handle parts carefully; avoid contact with the ignitor surface to prevent damage
• Verify correct orientation and secure mounting per the appliance's service instructions

The Anti-Tip Bracket Kit is an OEM part for Frigidaire ranges and ovens. This part secures the appliance to the floor or wall, preventing it from tipping over when the oven door is opened or when heavy cookware is placed on an open door or extended rack. The kit typically includes a metal bracket, screws, and installation instructions.

Over time, or during instances of moving or remodeling, the anti-tip bracket may become dislodged or may not be reinstalled correctly, which can compromise the safety of the appliance.

Symptoms of a missing or improperly installed Anti-Tip Bracket include:

• The range or oven tilts forward when pressure is applied to an open door
• The appliance moves more easily than expected when nudged or cleaned
• Visible absence of a bracket at the lower back portion or floor area behind the appliance

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Size: 8-18ab x 0.5 inch.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Size: 6-20 x 0.312 inch.

Color: Black

0.6 fluid ounces

Size: 8-32t x 0.500 inch. Color: Black.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
