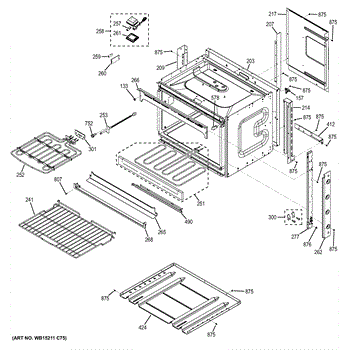

Parts for Ge JCK5000DF2BB: Body Parts

This high limit switch is the temperature safety cut-out for your appliance. It monitors heat and opens the circuit if temperatures rise too high—helping protect components and prevent shutdowns caused by overheating.

• Monitors temperature at a critical location and interrupts power if limits are exceeded
• Helps protect internal components from heat damage
• Can help address: unit won't power on, shuts off during use, or runs without heating
• Replace if it remains open (no continuity) when cool or shows visible damage

• Disconnect power at the breaker before servicing; never work on a live appliance
• If servicing a microwave, be aware the high-voltage capacitor can retain a dangerous charge
• Note wire positions and transfer leads one at a time; mount the switch securely in the original location
• Do not bypass a safety switch; also correct any airflow/ventilation issues that may have caused overheating

This air center divider is the interior air baffle that directs airflow inside the refrigerator compartment for more even temperature control and circulation. It replaces a cracked, missing, or damaged center air divider to restore normal airflow paths. What it does:

• Guides cooled air through the refrigerator compartment to help maintain even temperatures
• Prevents air leaks and improper circulation caused by broken or warped dividers
• Helps reduce warm spots and uneven cooling inside the fresh-food section
• Restores proper airflow after impact damage or plastic fatigue

• One air center divider

• Disconnect power to the appliance before starting any work
• Remove shelves and related trim to access the center air baffle; retain all fasteners
• Handle plastic tabs/clips gently to avoid breakage during removal and installation

The Oven Rack is an OEM component specifically designed for GE wall ovens and ranges. As an essential cooking accessory, the oven rack provides an elevated surface for baking multiple food items simultaneously. It enables maximized use of available oven space.

Causes of a bad oven rack can include warping or bending from years of heavy cooking loads, broken rack support clips, or scratches and pitting from harsh cleaning chemicals.

Symptoms of a bad oven rack include:

• Uneven baking/cooking results from rack instability
• Improper rack level or tilting during use
• Difficulty removing or installing the rack due to damage
• Safety hazards from a severely warped or weakened rack

This genuine GE replacement is built with a heavy-duty steel gauge and reinforced edges to retain stability cycle after cycle. Compatible oven brands also include Monogram, Maytag, Jenn-Air, and select Kenmore models.


This hidden bake element kit replaces the oven's concealed heating element to restore even baking and proper temperature. It fits under the oven floor and reconnects to the existing terminals for normal bake operation. What it does:

• Heats the oven cavity during bake cycles to produce consistent cooking temperatures
• Restores heating when a damaged or open element causes weak or no bake heat
• Helps eliminate uneven baking or long preheat times associated with a failed element
• Provides the concealed element used in many full-size electric ranges

• Disconnect power to the range before starting any repair to avoid shock hazard
• Access typically requires removing the oven bottom panel or lower compartment; keep fasteners and insulation in place as removed
• Inspect wiring and terminal connections for heat damage and replace any compromised parts

This broil element is the replacement heating element for the oven's upper/broil function, restoring direct top-heat for broiling and finishing dishes. Fits common GE ovens that use this OEM-style element. What it does:

• Heats the oven's upper cavity to provide direct broil heat for searing and browning.
• Replaces a broken, burned-out, or non-heating broil element.
• Helps restore even broiling when the oven fails to reach or maintain broil temperatures.
• Compatible with ovens that use a concealed or exposed upper broil element design.

• 1 broil element

• Disconnect power at the breaker or fuse box before starting any repair.
• Remove oven racks and back panel/insulation as needed to access mounting screws and wire terminals.
• Note terminal locations and wiring before disconnecting; take a photo for reference.
• Use proper strain relief on wires and tighten mounting hardware securely; test function after reassembly.

The Sensor Assembly is an OEM replacement part for GE ovens and ranges. It monitors and regulates the temperature inside the oven cavity to determine accurate and consistent baking and roasting.

Causes of a bad temperature sensor can include damage to sensor wires, failure of electronic modules, or extended high temperature exposure.

Symptoms of a faulty temperature sensor include:

• Inability to maintain the set oven temperature
• Fluctuations outside an acceptable temperature range
• Premature or delayed cycling of heating elements
• Error codes related to temperature sensing issues

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Lamp Halogen Bulb is an OEM part for GE ovens. This part provides illumination inside the oven, allowing users to easily monitor the cooking process without opening the door and losing heat.

Causes of a bad lamp halogen bulb can include regular wear and tear from extended use, exposure to high temperatures, or accidental impacts that cause the bulb to break or malfunction.

Symptoms of a bad Lamp Halogen Bulb include:

• The oven interior not lighting up when the door is opened
• Flickering or dim light
• The bulb being visibly burnt out or broken
• Difficulty seeing inside the oven during operation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lamp Halogen Assembly is an OEM part for GE wall ovens and ranges. It houses the halogen light bulb that illuminates the interior oven cavity, allowing food items to be monitored during baking and broiling.

Causes can be normal wear over the lifespan of the bulb, exposure to steam leading to condensation issues, or accidental breakage during cleaning.

Symptoms of a bad Lamp Halogen Assembly include:

• The oven light will not turn on or remains continuously lit
• Broken, cracked, or blackened halogen bulb
• Damage or cracks in the lens cover shielding the bulb

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This halogen bulb uses a G9 two-pin base to light the oven cavity, making it easy to monitor food without opening the door. Replace a burned-out or flickering bulb to restore clear interior visibility while cooking.

• Provides illumination inside the oven so you can see through the window during preheat, baking, and broiling
• Plugs into a G9 bi-pin socket in the light assembly
• Common symptoms: no light, flickering or intermittent light, dim light, or a blackened/broken capsule

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the oven and bulb to cool completely
• Remove the light lens/cover; pull the old bulb straight out of the G9 socket; press the new bulb fully into place; reinstall the cover
• Avoid touching the glass with bare fingers—use gloves or a clean cloth

The Lens Oven Light is an OEM part for GE ovens. It lights the oven cavity, allowing homeowners to view food while cooking or cleaning without opening the oven door. The lens is designed to project an even spread of light and withstand high temperatures inside the oven.

Causes of a bad lens can include cracks or breaks due to impact or excessive heat exposure over time. The polymer material used in the lens can degrade with regular use of the oven at high temperatures.

Symptoms of a bad lens include:

• Dim or no light inside the oven cavity
• Uneven or splotchy light distribution
• Cracks or breaks in the lens cover

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hinge bracket assembly secures and supports the refrigerator door pivot to restore proper door alignment and reliable opening/closing. It replaces worn or damaged hinge hardware to help stop door sag and improve sealing. What it does

• Replaces the door hinge bracket that anchors the hinge to the cabinet or door
• Restores correct door alignment and smooth pivoting motion
• Helps eliminate sagging or uneven door gaps that affect the seal
• Works with existing hinge pins and mounting points to secure the door

• One hinge bracket assembly kit

• Unplug the appliance or disconnect power before starting any repair
• Support the door while removing/installing the hinge to prevent dropping or damage
• Use appropriate hand tools; tighten fasteners to secure bracket without over-torquing

This heat-resistant gasket fits around the broil element where it passes through the oven liner. It helps seal the opening to reduce heat and moisture leaks and provides a secure, finished fit for the element.

• Seals the broil element pass-through at the oven liner to help contain heat, steam, and splatters
• Helps protect insulation and wiring behind the liner from spills and debris
• Cushions the mounting point to reduce metal-to-metal wear and rattles
• Common signs it's needed: brittle, cracked, or missing gasket; discoloration or residue at the pass-through; element feels loose at the mounting point

• Disconnect power at the breaker and let the oven cool completely before servicing
• Remove broil element screws and gently lower or pull the element forward to access the pass-through
• Remove the old gasket; seat the new gasket evenly without stretching or pinching; don't overtighten hardware
• Reconnect firmly and route wires away from sharp edges before reassembly

This bottom air duct cover replaces the lower air duct cover that routes airflow and protects internal components. It helps maintain proper airflow and keeps debris out of the appliance interior. What it does:

• Covers and channels air at the appliance's lower duct to support proper ventilation
• Protects internal components from debris and loose items entering the duct area
• Helps reduce airflow obstructions that can contribute to overheating or reduced performance
• Fits into the lower cabinet/oven duct area to restore original airflow path

• Disconnect power to the appliance before starting any repair to avoid electrical shock.
• Remove lower access panel or kick plate to access the duct area; retain screws for reinstallation.
• Align the cover with existing mounting points; secure with original fasteners or equivalent.
• Inspect surrounding ducts, seals, and components.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

A replacement black trim screw that secures exterior trim and small panels on appliances, restoring proper fit and finish so pieces stay aligned and rattle-free. What it does

• Fastens appliance trim, bezels, and small decorative panels
• Keeps trim aligned to prevent gaps, rattling, and vibration noise
• Replaces missing or stripped trim fasteners to restore secure attachment
• Works wherever the OEM specifies a black trim screw of this style

• One black trim screw

• Disconnect power or unplug the appliance before starting any work
• Use the correct screwdriver size to avoid stripping the screw head
• Hand-start the screw, then snug—do not overtighten to prevent cracking the trim
• If access is tight, a magnetic screwdriver or bit holder can help

Black. 8-18 AB HXW 3/8
