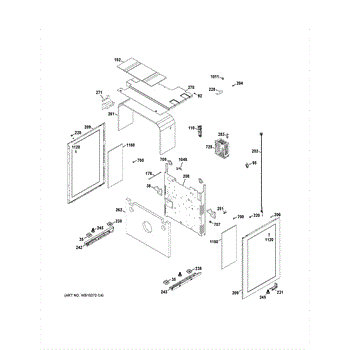

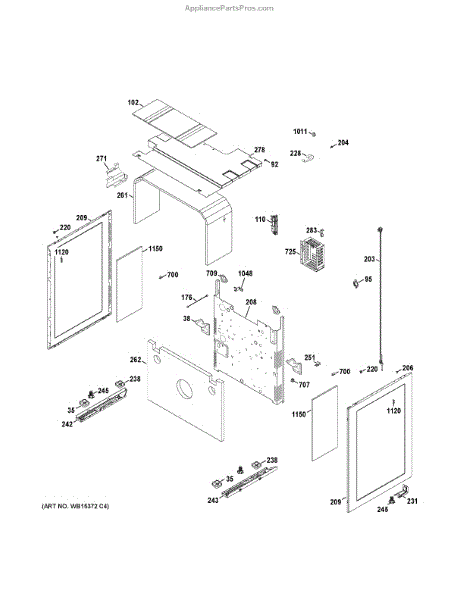

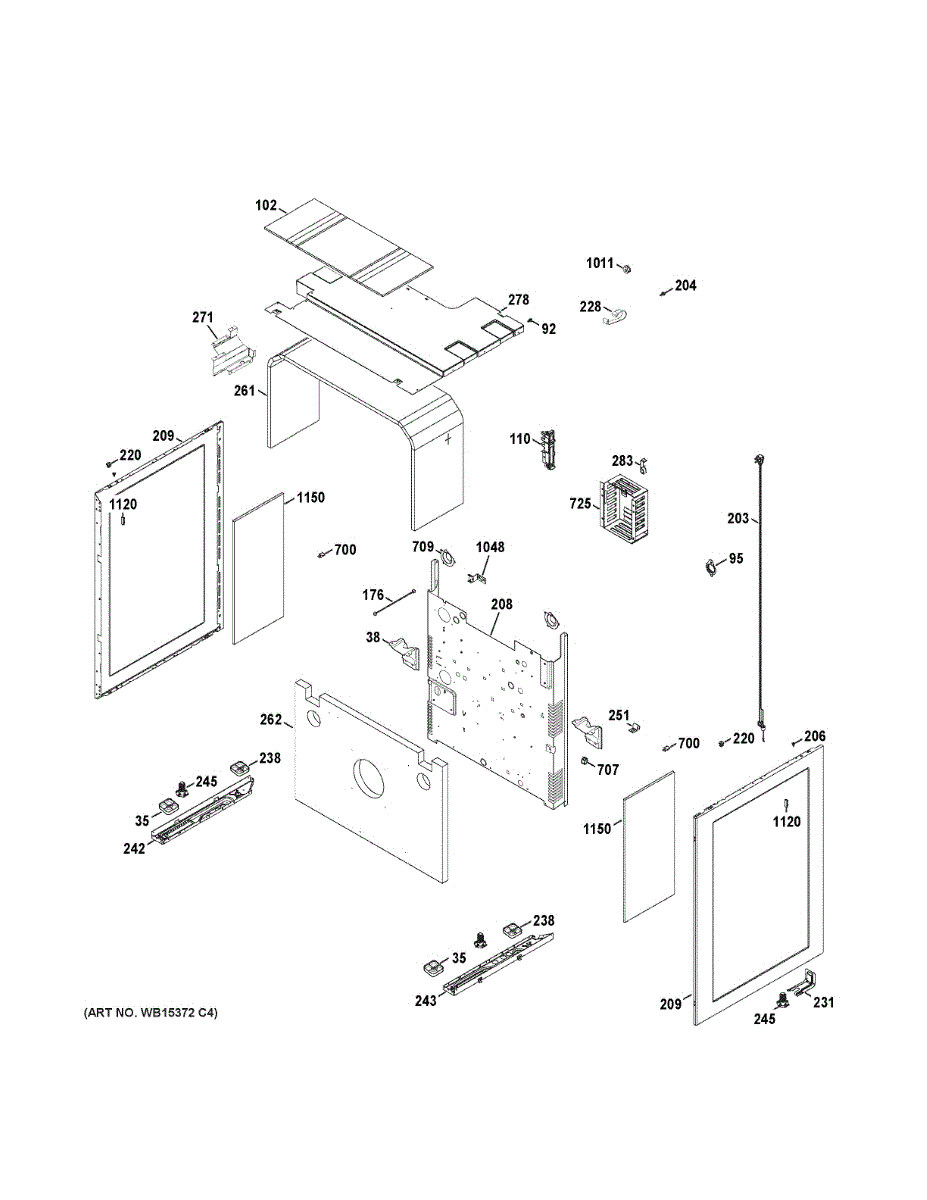

Parts for Ge JGB850DEF3BB: Body Parts

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

This cover cap is a direct-replacement trim piece that covers an exposed control shaft or fastener, restoring a clean finished appearance and helping keep dirt and debris out of the opening. Ideal for cosmetic repairs and simple maintenance. What it does:

• Covers and protects an exposed shaft, screw head, or fastener from dirt and damage
• Restores the original finished look of the control area or panel
• Helps reduce snagging on clothing or objects around the shaft
• Prevents debris buildup that can affect surrounding components

• Always unplug the appliance or disconnect power (and water if applicable) before servicing.
• Many installs are push-fit—remove the knob or trim, press the cap into place, and reassemble.
• Keep parts organized for reassembly.

The Ignition Module is an OEM part for GE ranges. This part generates the spark that ignites the gas burners on the cooktop. It ensures that the burners light efficiently and safely, allowing for reliable cooking performance.

Causes of a bad ignition module can include electrical surges, general wear and tear, or damage from exposure to moisture or high temperatures.

Symptoms of a bad ignition module include:

• Burners not igniting or taking longer to ignite
• Weak or inconsistent spark
• Clicking sound without ignition
• Burners going out shortly after being lit

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This ground harness is a short wire assembly that connects an appliance's metal chassis to the electrical grounding system, helping ensure safe operation and reduce the risk of electric shock. It replaces a worn or damaged ground lead to restore proper grounding. What it does:

• Provides a secure path to ground between the appliance frame and the house grounding conductor
• Helps prevent electrical faults from energizing the chassis
• Commonly needed if the original wire is corroded, frayed, or has a broken terminal
• Supports safe operation after repairs that require re-establishing chassis ground

• One ground harness (wire lead) as shown

• Install only with the appliance disconnected from power; follow all safety guidelines
• Attach to the designated grounding point on the chassis and to the appliance ground or terminal using the provided or existing fasteners
• Use appropriate tools and replace any damaged connectors
• No additional parts are included unless explicitly listed

This replacement line cord provides the appliance's main power connection, restoring a safe, reliable electrical feed when the original cord is damaged or worn. Use it to replace frayed, cut, or non-functioning power leads. What it does:

• Carries household mains power to the appliance for normal operation
• Replaces damaged or frayed cords that can cause intermittent power or visible wear
• Helps eliminate loose connections, burning smell, or sparking at the cord entry
• Restores a secure grounded connection when used with the correct grounding configuration

• Disconnect power at the breaker or unplug the appliance before starting
• Verify cord type and grounding configuration match the appliance wiring and local code
• Inspect terminal connections for corrosion and tighten to manufacturer torque specs

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This anti-tip bracket secures the rear of your range to the floor or wall so the rear leveling leg locks in place. Replacing a missing or damaged bracket helps prevent tipping and keeps the appliance stable during everyday use.

• Anchors the range to a fixed point; rear leveling leg engages the bracket
• Helps prevent forward tipping when weight is placed on an open oven door
• Reduces rocking or sliding during cooking or cleaning
• Replace if the bracket is missing, bent, corroded, or the unit fails the anti-tip check

• Disconnect power and, if applicable, shut off gas before servicing
• Pull the range straight out; position the bracket per your installation manual/template
• Fasten the bracket securely to floor or wall studs using hardware appropriate for your surface
• Slide the range back so the rear leg fully engages the bracket; perform the anti-tip test from your manual

This spacer base positions and supports components inside the appliance to maintain correct alignment and clearance, helping reduce vibration and wear. It's a simple replacement part when the original is cracked, broken, or missing. What it does:

• Provides a stable mounting surface and correct spacing for internal panels or components
• Restores proper alignment to reduce vibration, noise, and uneven operation
• Commonly replaced when the original spacer is cracked, deformed, or missing
• Helps maintain secure fastener engagement and proper component clearance

• Spacer base (single piece)

• Disconnect power to the appliance before starting any repair
• Follow manufacturer service instructions or parts diagram for correct location and orientation
• Basic hand tools typically required; inspect surrounding fasteners and mounting surfaces during installation

This support base replaces the left lower support used to stabilize and align the appliance's lower assembly, restoring proper fit and reducing vibration. It helps keep moving parts supported during normal operation. What it does

• Provides structural support for the appliance's lower assembly and related components.
• Restores proper alignment to reduce rubbing, vibration, or uneven movement.
• Helps prevent excessive wear on brackets, panels, and adjacent parts.
• Safe, commonly used when the left support is cracked, broken, or warped.

• Disconnect power (and gas, if applicable) before beginning any repairs.
• Handle sharp sheet-metal edges and wear gloves and eye protection.
• Require basic hand tools to remove panels and fasteners; keep hardware for re-use if undamaged.
• If other mounting hardware or adjacent parts are damaged, inspect and replace as needed for secure installation.

This support base secures and stabilizes the appliance cabinet/frame so doors and components align properly and operate smoothly. Replaces worn or broken right-side lower support to restore correct support and fit. What it does:

• Provides structural support for the appliance cabinet/frame on the right side
• Helps maintain proper door alignment and prevent sagging or uneven gaps
• Reduces vibration and rattling related to a compromised support
• Restores correct mounting for adjacent components or trim

• Disconnect power and empty doors/drawers before starting any repair
• Remove relevant trim or access panels to reach the support; keep fasteners for reuse
• Replace using the original mounting locations; do not force or bend surrounding panels

The Range Leveling Leg is an OEM replacement part for GE ranges and ovens. It is designed to provide stability by allowing the appliance to be leveled on uneven floors. The leveling leg helps ensure the range sits securely, which is critical for even cooking and safe operation.

Over time, leveling legs can become damaged or worn due to frequent adjustments, heavy appliance movement, or environmental factors such as rust or corrosion. This can compromise the range's stability and cooking performance.

Symptoms of a bad leveling leg include:

• The range rocking or wobbling during use
• Difficulty achieving a level cooking surface
• Uneven cooking results due to improper range positioning
• Visible damage to the leveling leg

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This angle support is a small metal mounting bracket that stabilizes and secures components inside the appliance, helping keep shelves, panels, or assemblies aligned for reliable operation and safe use. What it does:

• Provides structural support for interior panels, shelves, or trim to prevent sagging or misalignment
• Holds assemblies in the correct position to reduce rattling and vibration during use
• Restores proper fit and clearance when a bent or broken bracket causes shifting
• Works with fasteners to anchor components where a right-angle connection is needed

• Inspect surrounding parts and fasteners; replace any damaged screws or clips as needed
• Use the correct size fastener and torque to avoid stripping or cracking adjacent parts
• Disconnect power and follow manufacturer safety guidelines before working near electrical components

This retainer is a small mounting clip that secures compatible appliance components in place to prevent movement and wear. It restores proper alignment so related parts stay seated and operate quietly and safely. What it does:

• Holds a specific component or harness firmly to the appliance frame or assembly
• Prevents rubbing, vibration noise, or parts shifting during operation
• Helps maintain correct part alignment for reliable function
• Common symptom: loose, rattling, or misaligned components where the retainer is missing or damaged

• One retainer

• Disconnect power and any fuel sources before starting work
• Inspect surrounding parts for damage before installing the retainer
• Typically installs with basic hand tools; avoid over-tightening nearby fasteners

This replacement lamp cover protects and diffuses interior appliance light for even illumination and safe bulb containment. It restores a cracked, cloudy, or missing light lens to improve visibility inside the compartment. What it does:

• Protects the interior light bulb from impact, moisture, and food debris.
• Diffuses and softens the bulb's light for more even interior illumination.
• Stops rattling or falling lens issues caused by a cracked or broken cover.
• Helps prevent direct contact with the hot bulb and reduces glare.

• One lamp cover / light diffuser.

• Disconnect power or unplug the appliance before servicing to avoid electrical shock.
• Remove the old cover carefully and dispose of any broken pieces safely.
• Handle the replacement cover gently to avoid cracks; align and snap/slide into place per the original mounting.
• After installation, restore power and replace bulb if still dim or nonfunctional.

A single 6-32 keps nut that secures panels and components by combining a hex nut with a captive lock washer for vibration-resistant fastening. Fits standard 6-32 machine screws to restore proper fastener function and fit. What it does:

• Provides a secure threaded connection for 6-32 screws where a built-in lock washer prevents loosening.
• Commonly used to fasten panels, brackets, and small components prone to vibration.
• Replaces missing, stripped, or damaged nuts causing loose panels, rattling, or misaligned parts.
• Works with standard 6-32 threaded hardware in appliance assemblies.

• One keps nut (6-32).

• Unplug or disconnect power before working on the appliance.
• Hand-start the nut on the screw to avoid cross-threading, then tighten with the appropriate wrench or socket.
• Do not overtighten; stop when snug and the captive washer seats against the surface.
• If threads are damaged, replace the mating screw or repair the threads before installing.

A small rubber bumper that cushions contact points to reduce noise and prevent wear on moving appliance parts. Fits where a soft stop or spacer is needed to protect surfaces and quiet door or panel movement. What it does:

• Acts as a shock absorber to cushion impact between moving parts or panels
• Reduces rattling and vibration for quieter operation
• Prevents metal-to-metal contact that can cause surface wear or chipping
• Maintains proper spacing where a soft stop or spacer is required

• Typically presses or snaps into a mounting hole or onto a stud; orientation before installing
• Clean mating surfaces to ensure a secure fit and proper adhesion if applicable
• Replace only when the old bumper is cracked, flattened, or missing
• Disconnect power and remove any obstructing panels if working near electrical components
