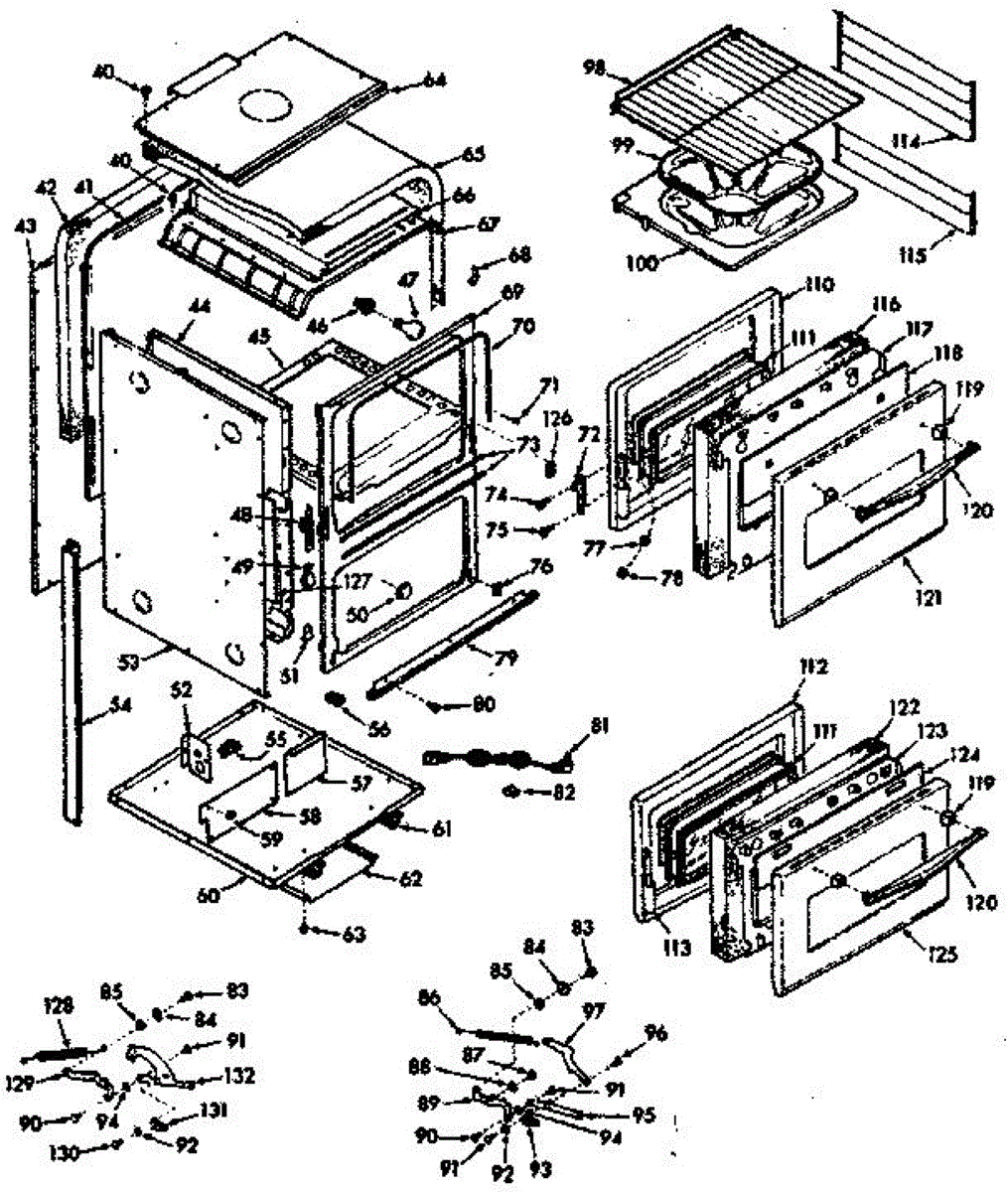

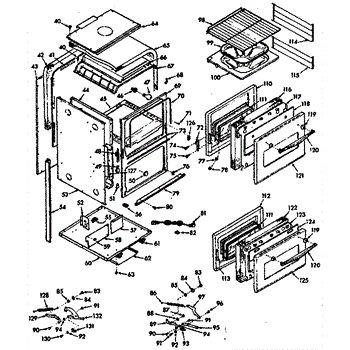

Parts for Kenmore 103.3247290 (1033247290, 103 3247290): Body Section Parts

Replace a cracked, heat-damaged, or loose light socket to restore safe illumination. Secures the bulb and connects to appliance wiring. Confirm fit.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Range won't power on or burners not heating? The terminal block connects power to your range. Common repair for electrical connection issues.

Structural support channel for gas range chassis. Secures frame components and maintains cabinet alignment. Replace if bent, cracked, or damaged.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified

Replacement door spring for ovens and ranges. Installs inside the door hinge assembly to counterbalance door weight. Order when original is broken or stretched.
