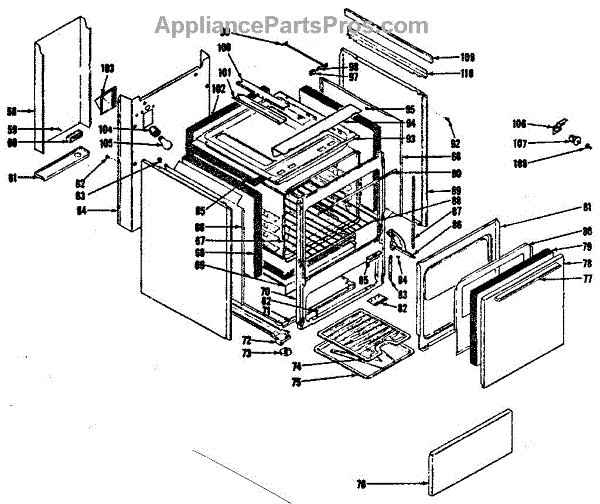

Parts for Kenmore 119.9017320 (1199017320, 119 9017320): Body Section Parts

This two-piece broiler pan and insert set creates a proper broiling surface in your range or wall oven. The vented top supports food while drippings collect below, helping reduce smoke and splatter for more consistent browning.

• Provides a slotted broiling surface that lets fats drain into the pan below
• Helps protect the oven cavity from spills and reduce smoke during broiling
• Replaces a missing, warped, rusted, or heavily stained broiler pan assembly
• If existing pan causes uneven browning, smoke, or odors, replacing it can restore broiling performance

• Allow the oven and racks to cool completely before handling
• Wash the new pan and insert before first use; dry thoroughly
• Set rack height per your owner's manual; seat insert on the pan and slide onto the rack
• Do not cover the insert with foil unless your manual permits; keep clear of the broil element

This part has been discontinued by the manufacturer and is no longer available.

Has two terminals.
