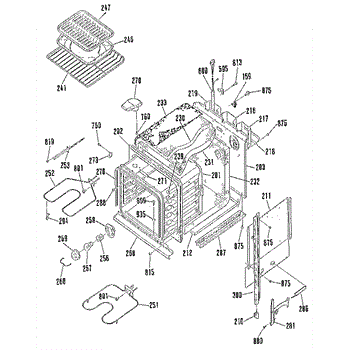

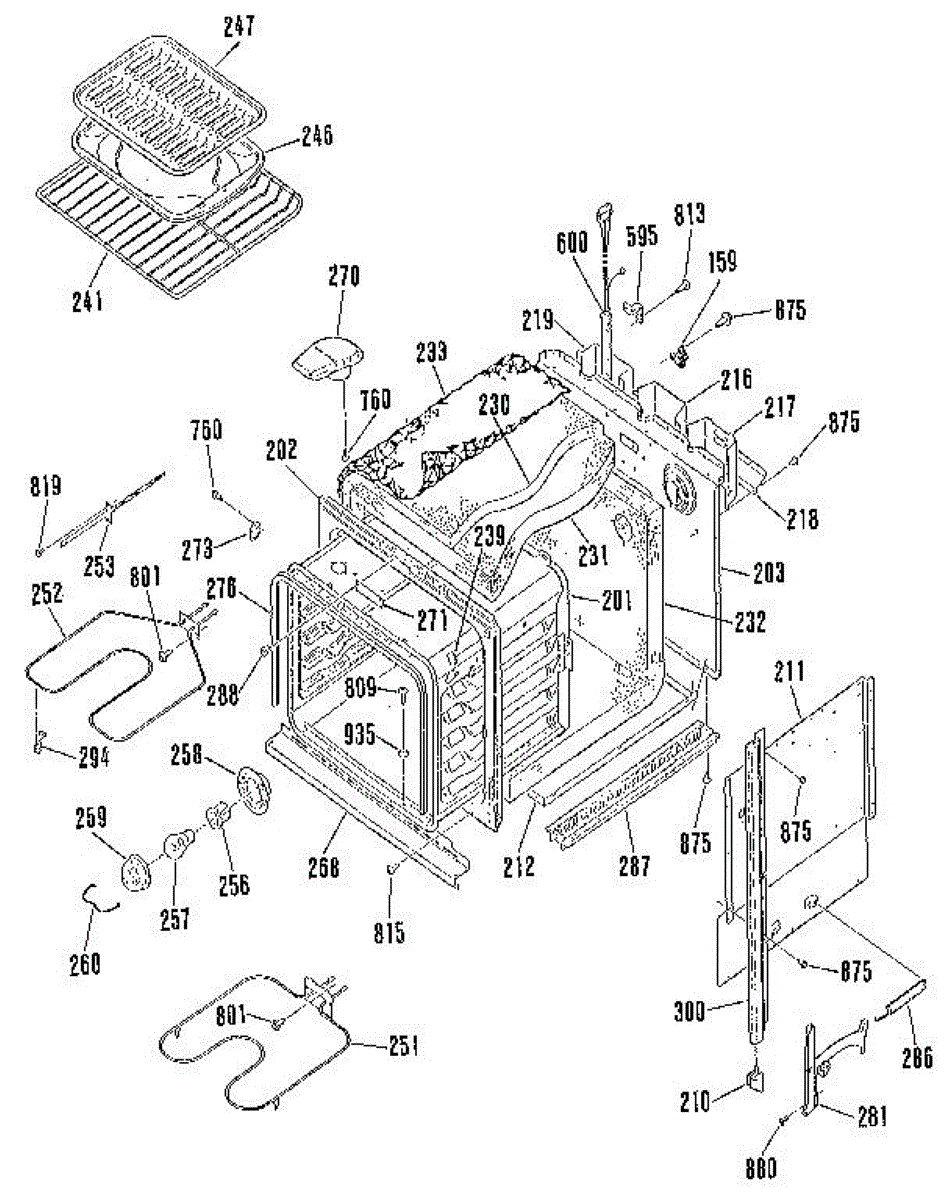

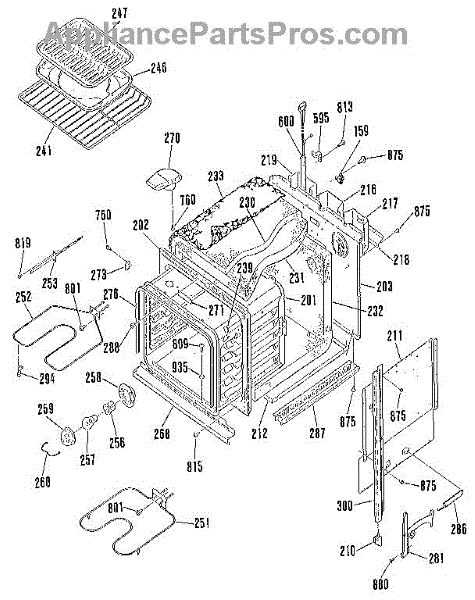

Parts for Kenmore 911.4712990 (9114712990, 911 4712990): Body Section Parts

Lower back

This full oven cavity wrapper assembly replaces the metal liner that surrounds and supports the oven interior, restoring structural integrity and proper heat enclosure for baking and broiling. Fits as the oven's inner/outer cavity wrapper. What it does:

• Replaces a damaged, warped, or corroded oven cavity wrapper that can affect heat distribution and door alignment
• Restores the oven's sealed cooking cavity to help maintain even temperatures during use
• Provides the mounting surface for insulation and internal components that attach to the oven shell
• Helps prevent heat and grease from reaching external cabinet surfaces

• 1 oven wrapper cavity assembly

• Disconnect power (and gas if applicable) before starting any repair
• Handle the wrapper carefully — edges may be sharp and insulation may shift during removal
• Verify fastener locations and panel alignment during reassembly to ensure proper door fit and seal

This trim end cap replaces a damaged or missing decorative end cap on the appliance trim, restoring a finished look and protecting the trim edge from further wear and gaps. Simple cosmetic repair that improves appearance and fit. What it does:

• Covers and protects the exposed end of the trim to prevent sharp edges and dirt buildup
• Restores the appliance's finished appearance after cracks, chips, or missing trim pieces
• Helps keep adjacent trim panels aligned and reduces visible gaps
• Works as a direct cosmetic replacement where the original end cap is broken or worn

• One trim end cap

• Disconnect power to the appliance and follow all safety precautions before starting work
• Installation typically requires removing a few screws or clips; keep hardware for reassembly
• Handle trim carefully to avoid scratching surrounding finishes and watch for sharp edges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Oven Bake Element is an OEM part for GE ovens. This component is located at the bottom of the oven cavity and is responsible for generating the heat needed for baking. By converting electrical energy into heat, the bake element ensures even temperature distribution throughout the oven, allowing for consistent cooking results.

Causes of a malfunctioning Oven Bake Element may involve visible signs of wear or damage, like blistering or holes, a break in the element that hinders proper heating, and burnout or malfunctioning resulting from age or excessive use.

Symptoms of a failing Oven Bake Element include:

• The oven not heating to the set temperature
• Uneven baking results
• No visible glow from the element when the oven is turned on
• The oven taking longer than usual to preheat

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Broil Element is an OEM part for GE ovens. This element is located at the top of the oven and is crucial for the broiling function, providing high heat for cooking dishes such as meats and vegetables directly under the heat source. The broil element glows red hot when in use, creating the necessary temperature to sear food and lock in flavors.

Symptoms of a failing Broil Element include:

• The element not heating up when the broil setting is activated
• Uneven cooking or lack of browning on food intended to be broiled
• Visible damage to the element, such as blistering, bubbling, or breaks in the element coil
• No visible glow from the element during operation

Causes of a bad broil element often involve burnout from regular use, electrical issues such as faulty wiring or a malfunctioning thermostat that doesn't cycle the heat correctly.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 6 inches long. Includes ceramic wire connectors.

This oven lamp holder is the heat-resistant socket that secures the interior light bulb and connects it to the appliance's wiring, restoring dependable visibility so you can check food and rack positions without opening the door as often.

• Holds and powers the oven light bulb inside the cooking cavity
• Maintains a solid electrical connection to prevent flickering or intermittent lighting
• Replace if the light won't turn on with a known-good bulb
• Also replace if the socket is cracked, charred, loose, or shows signs of arcing

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely
• Remove the lens and bulb to access the holder; some models require access from the rear panel
• Transfer wires to the new holder one at a time and secure the mounting clip/tabs
• Reinstall the bulb and lens, restore power, and test; use the bulb type specified for your model

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

Right hand side. For left hand use WB14K5007

The Support Bracket is an OEM part for GE ovens, designed to provide stability and support for the broiling element. This bracket is essential for ensuring the broiling element is securely positioned at the top of the oven, allowing for even heat distribution and optimal cooking performance when broiling foods.

Causes of damage to the support bracket often involve high heat exposure, accidental impacts during cleaning or cooking, or general wear and tear over time.

Symptoms of a bad Support Bracket include:

• The broiling element hanging lower than usual or touching the oven cavity, which can affect cooking performance and potentially damage the oven's interior.
• Unstable or loose broiling element, leading to uneven cooking or broiling.
• Visible signs of wear, damage, or corrosion on the bracket itself, indicating it may no longer provide adequate support.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

ST10-16 X 7/16"

Nickel

This flat-head 10-32 zinc screw secures panels and components on compatible appliances, providing a corrosion-resistant fastener for reliable mechanical fastening. Use when replacing stripped or missing panel screws to restore proper fit. What it does:

• Fastens control panels, trim, or small appliance components with a 10-32 thread size
• Zinc plating helps resist rust and wear in typical household environments
• Replaces missing, damaged, or stripped flat-head screws that prevent panels from seating correctly
• Fits applications that require a countersunk/flush head for a clean finish

• Use the correct 10-32 driver bit and moderate torque to avoid stripping the head or threads
• Ensure the screw is the correct length and head style for your application before tightening
• Disconnect power to the appliance and follow OEM safety instructions before servicing
