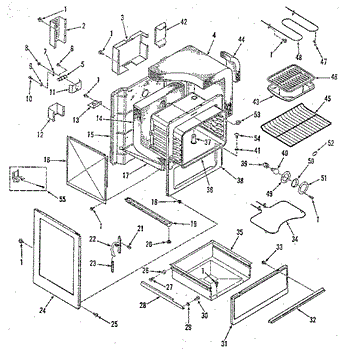

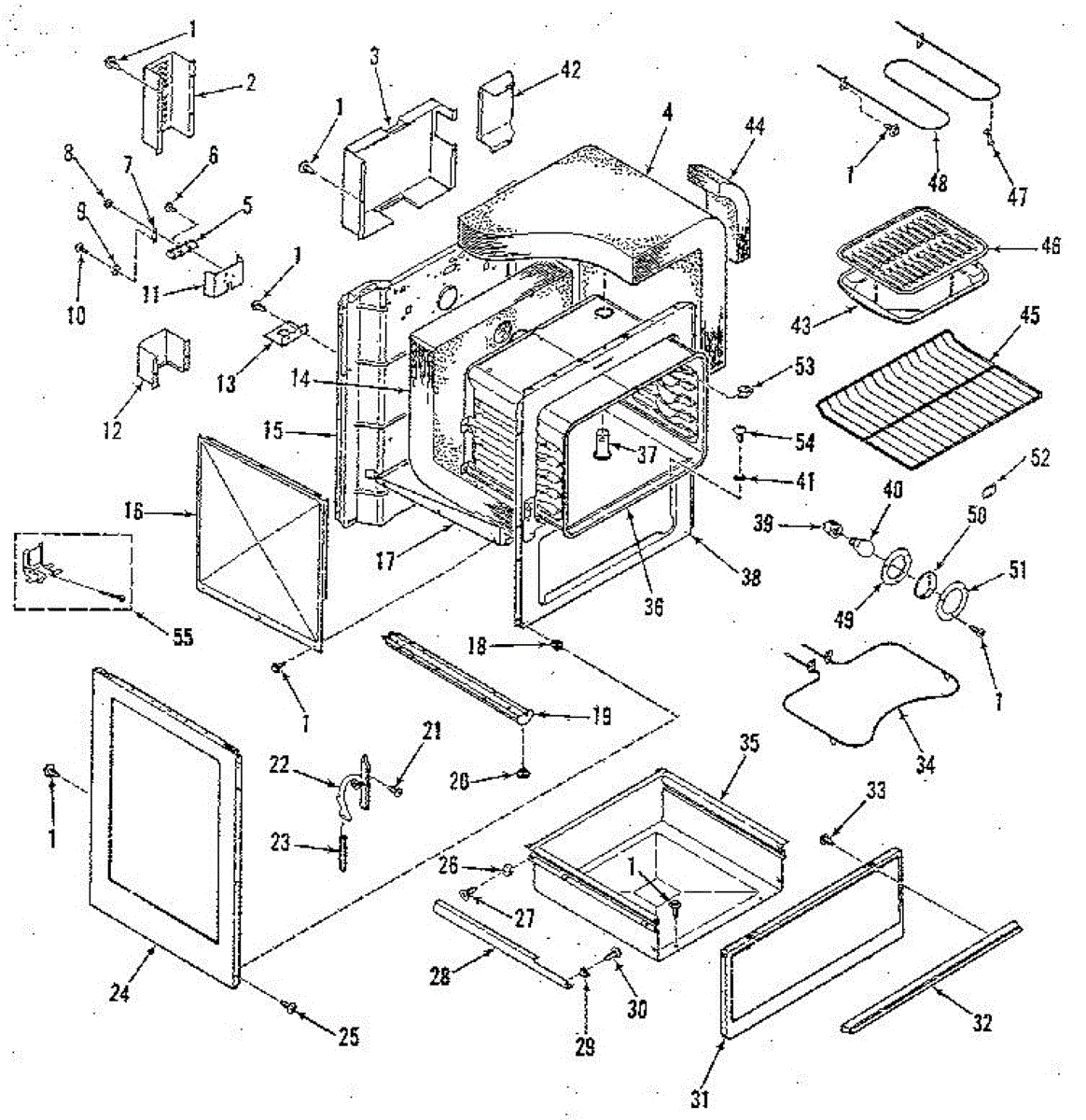

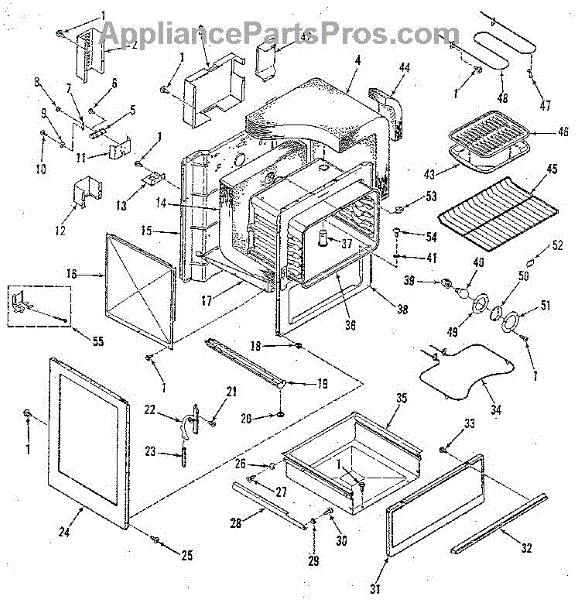

Parts for Kenmore 911.9330190 (9119330190, 911 9330190): Body Section Parts

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified

This flat-head 10-32 zinc screw secures panels and components on compatible appliances, providing a corrosion-resistant fastener for reliable mechanical fastening. Use when replacing stripped or missing panel screws to restore proper fit. What it does:

• Fastens control panels, trim, or small appliance components with a 10-32 thread size
• Zinc plating helps resist rust and wear in typical household environments
• Replaces missing, damaged, or stripped flat-head screws that prevent panels from seating correctly
• Fits applications that require a countersunk/flush head for a clean finish

• Use the correct 10-32 driver bit and moderate torque to avoid stripping the head or threads
• Ensure the screw is the correct length and head style for your application before tightening
• Disconnect power to the appliance and follow OEM safety instructions before servicing

The Hinge, Left Side is an OEM part for GE ovens. It provides support and allows for the smooth operation of the oven door, ensuring it opens and closes properly.

Causes of a bad hinge can include wear and tear over time, rust or corrosion due to exposure to heat and moisture, and damage from accidental impact or improper handling.

Symptoms of a bad hinge, left side include:

• Difficulty in opening or closing the oven door
• Oven door not staying securely closed
• Door misalignment
• Squeaking or creaking noises when moving the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Right Door Hinge is an OEM part for GE ovens and allows the oven door opens and closes smoothly and securely. The hinge facilitates easy access to the oven's interior, contributing to a user-friendly cooking experience.

Over time, the right door hinge can wear out or become damaged due to frequent use and the constant stress of holding the door's weight. Causes of a bad hinge include metal fatigue, rust, and physical impact.

Symptoms of a malfunctioning Right Door Hinge include:

• The oven door feels loose or wobbly when opened or closed.
• Difficulty in fully closing the oven door, which may affect the oven's ability to maintain temperature.
• A noticeable squeaking or grinding noise during the door's operation.
• Visible wear or damage to the hinge itself.

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw fastens panels, brackets, or trim inside your appliance. Swapping in a new screw restores a tight, secure fit and helps stop rattles, looseness, or misalignment caused by missing or damaged hardware.

• Secures panels, brackets, or trim to the appliance chassis
• Helps maintain proper alignment and spacing of components
• Replaces missing, rusted, or stripped hardware
• Helps resolve loose panels/handles, vibration, or rattling noises

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location; start threads by hand to avoid cross-threading
• Use the appropriate driver and tighten snugly without overtightening
• Inspect the mounting hole or clip for damage and address as needed before reassembly

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity

This front frame assembly restores the oven's outer trim and support for the control area, returning a finished appearance and proper alignment. It's a direct-fit exterior trim component used when the front casing or bezel is dented, cracked, or warped. What it does

• Replaces damaged or bent front trim to improve the appliance's appearance and panel alignment
• Provides structural support for the control area and helps maintain a proper seal between the door and console
• Can stop rattling or misalignment caused by a warped or loose front frame
• Matches OEM fit and mounting points for a direct replacement where specified

• One front frame assembly as shown

• Basic removal of the oven/range front panel or trim is required; follow for specific disassembly steps
• Power off and disconnect the appliance before starting work to avoid electrical shock or injury
• Keep fasteners and small parts organized during disassembly to ensure proper reassembly
• If trim damage affected adjacent components (buttons, switches, or fascia), inspect and replace those parts separately as needed

This oven lamp holder is the heat-resistant socket that secures the interior light bulb and connects it to the appliance's wiring, restoring dependable visibility so you can check food and rack positions without opening the door as often.

• Holds and powers the oven light bulb inside the cooking cavity
• Maintains a solid electrical connection to prevent flickering or intermittent lighting
• Replace if the light won't turn on with a known-good bulb
• Also replace if the socket is cracked, charred, loose, or shows signs of arcing

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely
• Remove the lens and bulb to access the holder; some models require access from the rear panel
• Transfer wires to the new holder one at a time and secure the mounting clip/tabs
• Reinstall the bulb and lens, restore power, and test; use the bulb type specified for your model

Includes 12 washers.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Support Bracket is an OEM part for GE ovens, designed to provide stability and support for the broiling element. This bracket is essential for ensuring the broiling element is securely positioned at the top of the oven, allowing for even heat distribution and optimal cooking performance when broiling foods.

Causes of damage to the support bracket often involve high heat exposure, accidental impacts during cleaning or cooking, or general wear and tear over time.

Symptoms of a bad Support Bracket include:

• The broiling element hanging lower than usual or touching the oven cavity, which can affect cooking performance and potentially damage the oven's interior.
• Unstable or loose broiling element, leading to uneven cooking or broiling.
• Visible signs of wear, damage, or corrosion on the bracket itself, indicating it may no longer provide adequate support.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The broil element is the oven's upper heating element. It delivers intense radiant heat for broiling; replacing a failed element restores proper broil performance and more even browning.

• Provides top, direct radiant heat during the Broil cycle
• Symptoms of failure: no broil heat, uneven broiling, visible blistering/cracks or breaks in the element, sparking or tripping the breaker when Broil is selected
• Helps restore proper searing/finishing from the top of the oven

• Disconnect power at the breaker or unplug the range before servicing
• Remove oven racks; support the element while removing its mounting screws
• Gently pull the element forward and disconnect the two wires; prevent wires from slipping behind the oven liner
• Make firm, clean terminal connections; avoid bending the element, reinstall screws, then test the Broil cycle
